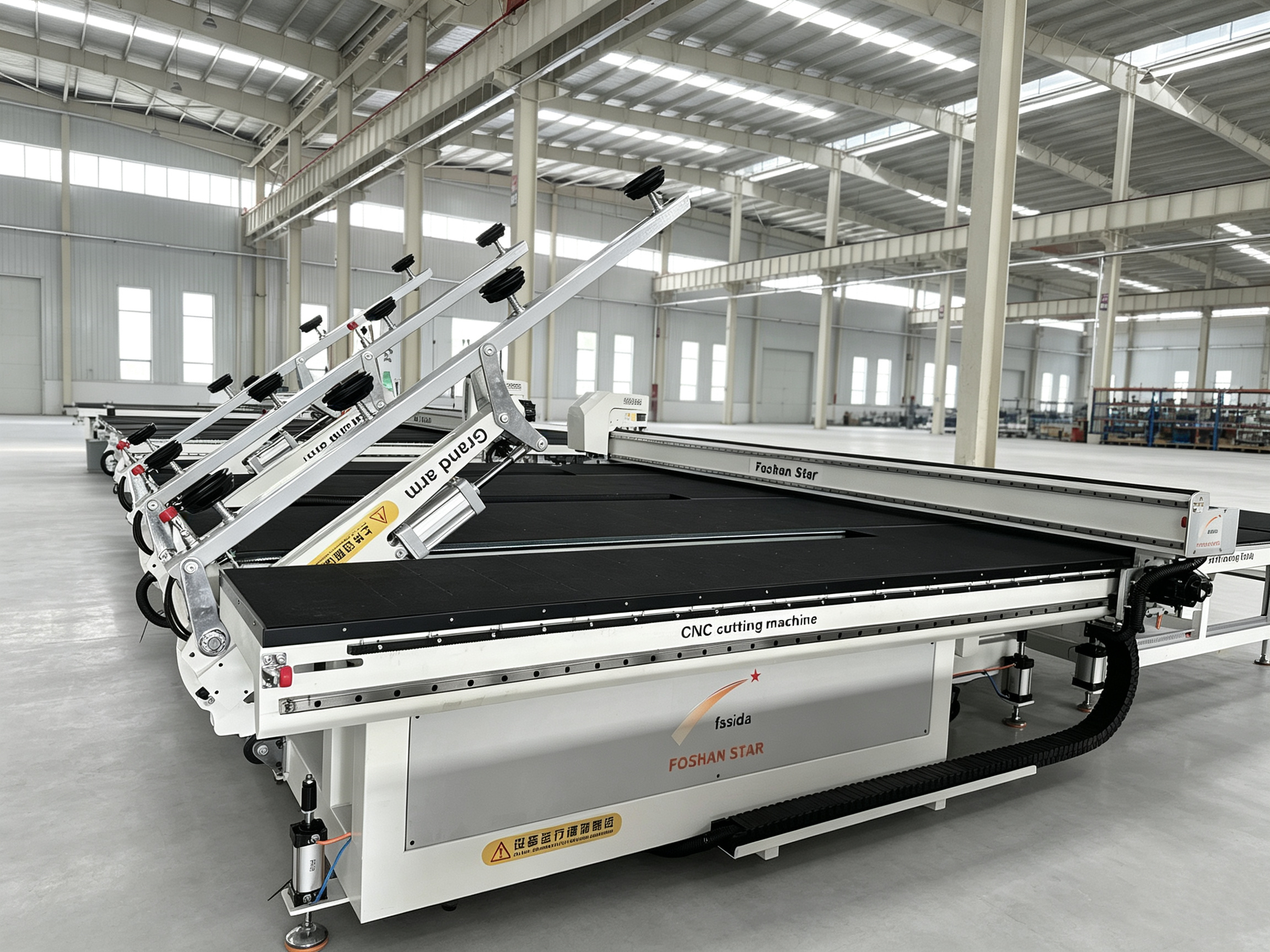

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table
15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table
Specifications
Payment Terms :
T/T
Machine size :
7350*3100*1300mm
Model Number :
ST-QG3826
Max glass size :
3660*2440mm
Certification :
CB,CE, RoHS, ISO9001
Glass thickness :
3-18mm
MOQ :
1
Packaging Details :
Protective Film
Air pressure :
0.6-0.8MPa
Price :
19700-21500USD/SET
Max speed :
160m/min
Delivery Time :
30 working days
Brand Name :
FOSHAN STAR
Name :
Automatic Glass Cutter
Place of Origin :
China
Installed Power :
15KW
Description
Automatic Glass Cutter With Loading, Nesting, Labeling And Air Floating Table For Straight And Shaped Cutting
Machine Overview

The ST-QG3826 integrated glass cutting machine combines a loading-cutting unit with an air-floating breaking table, delivering end-to-end automation across the entire glass cutting process. From auto-loading and intelligent nesting to auto-labeling, precision cutting, and automatic material conveying, the system runs the full workflow seamlessly without manual intervention.

Product Highlight

  1. Equipped with motor-driven traveling wheels and remote-controlled movement, it allows quick, effortless on-site repositioning. The machine performs both straight-line and shaped cutting to meet diverse processing requirements.
  2. With broad material compatibility, it handles architectural glass, furniture glass, craft glass, decorative glass, cabinet glass, mirror glass, and other common glass types — making it ideal for a wide spectrum of glass fabrication applications.
Technical Specifications
Parameter Value
Maximum Glass Size 3660 * 2440 mm
Glass Thickness Range 3-18 mm
Installed Power 15 KW
Compressed Air Requirements 0.6-0.8 Mpa, exhaust volume 0.6-1 m³/min
Cutting Head Speed 0-200 M/min (adjustable)
Product Services

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

Machine Images

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table

15KW Automatic Glass Cutter 160m/min With Loading / Nesting / Labeling / Air Floating Table
