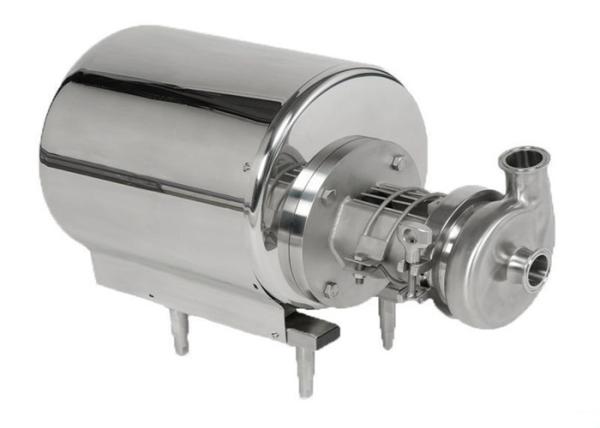

Beverage Food Grade Water Pump , Stainless Steel Milk Pump For Dairy Industry
Beverage Food Grade Water Pump , Stainless Steel Milk Pump For Dairy Industry
Beverage Food Grade Water Pump , Stainless Steel Milk Pump For Dairy Industry
Beverage Food Grade Water Pump , Stainless Steel Milk Pump For Dairy Industry
Beverage Food Grade Water Pump , Stainless Steel Milk Pump For Dairy Industry
Beverage Food Grade Water Pump , Stainless Steel Milk Pump For Dairy Industry
Specifications
Model Number :
1000L/Hour -30000L/Hour
Certification :
ISO
MOQ :
1Set
Price :
500USD/Set
Payment Terms :
T/T, L/C
Supply Ability :
100 Set Per Month
Delivery Time :
10 to 15 days
Packaging Details :
Standard Export Wooden Box
Name :
stainless steel centrifugal pump
Material :
Sanitary Stainless Steel 304 / 316 /316L
Application :
Beverage ,Dairy Industry
Flow per hour :
1000L/Hour --30000L/Hour
Raide Head :
24 Meter / 36 Meter
Packing :
Wooden Box
Warranty :
One year
Motor :
Siemens / ABB /China Brand
Description

Food Grade Pump Stainless Steel Centrifugal Pump Milk Pump Water Pump

1. Introduction of Food Grade Pump :

Our centrifugal pump is a sanitary pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.
Some of its uses include processes in the brewing, dairy and beverage industries, and with the appropriate options it can also be used in complex applications such as
Evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of
Kinetic energy and pressure energy.
Due to the special design of the pump casing and impeller, the BOGP centrifugal pump has much higher pressure than standard centrifugal pump.

Features:
Motor: 0.55-22Kw
Impeller: Open type
Rotating speed: 2900rpm(50Hz)or 3600rpm(60Hz)
Flow: 1.5-120/h
Lift: 0-75m
MAX pressure: 7Bar
MAX temperature: 120degree
Connection: Clamp, Thread, Flange, Welding
Standard: DIN, SMS, 3A, ISO, IDF, RJT
We have open impeller and close impeller types. And according to customers' requirements, we design movable type and explosion type.
Design and Standard:
Design based on 3A hygienic standard
Adjustable stainless steel leg
Mechanical seal: Single mechanical seal and double mechanical seal

2. Technical Parameter :

Rating Flux (TON/H) Motor power

Volt

Electricity Flow

 Inlet/ Outlet (mm) Raise head/PRESSURE (METERS) Material USD /Set EXW Shanghai China
1T/H 0.37 KW

380V,60HZ,

3PHZ

 32/32 8M SS304
3T/H 0.75KW

380V,60HZ,

3PHZ

 38/32 15M SS304
5T/H 1.5KW

380V,60HZ,

3PHZ

 50/38 24M SS304
10T/H 2.2KW

380V,60HZ,

3PHZ

 50/38 24M SS304
10T/H 3KW

380V,60HZ,

3PHZ

 50/38 36M SS304
20T/H 4KW

380V,60HZ,

3PHZ

 63.5/50 24M SS304
20T/H 11KW

380V,60HZ,

3PHZ

 63.5/50 55M SS304
20T/H 5.5KW

380V,60HZ,

3PHZ

 63.5/50 36M SS304
30T/H 5.5KW

380V,60HZ,

3PHZ

 63.5/50 36M SS304
50T/H 7.5KW

380V,60HZ,

3PHZ

 76/65 24M SS304
80T/H 15KW

380V,60HZ,

3PHZ

 100/80 24M SS304

Beverage Food Grade Water Pump , Stainless Steel Milk Pump For Dairy Industry
