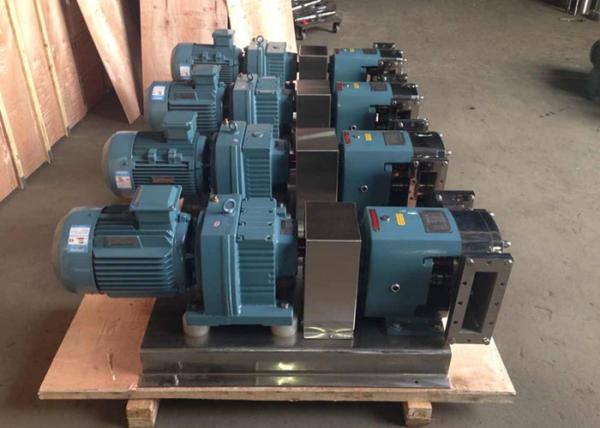

Food Grade Variable Speed Sanitary Rotor Lobe Pump Liquid Transportation Pump

Rotory lobe pump is also named rotary lobe epump, three-lobe pump, sole pump,etc.
When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Product Feature:
1 . Between Rotor and stator keep a certain gap,no friction coefficient and long service life.
2 . High efficiency and energy saving,conveying smooth,low failure rate, reliable sealing and low noise.
3 . Simple assembly and disassembly,maintenance,cheaning is convenient,less easyworn parts.
4 . To keep the continuity of operation reliability and no leak time.
5 . After to use of special material,may conveying the sludge and sewage containing solid grain of the granular.
6 . May conveying the medium viscosity for less than or equal to one million cp,and contain solid content is sixty percent of the slurry.
7 . May conveying the vapor,fluid and solid three-phase mixed material.
8 . This pump to use special stainless steel,can conveying strong corrosive fluid.
9 . Configuration frequency transfurer,can adjust flow,and can make the general metering pump use.
10.According to user needs,in the pump shell increase thermal insulation and health-grade safety valve.
11.Have a strong self suction.
12.Conveying medium ingredients won’t change.
13.According to the user requirements of connect,can choose flange,threaded type,fast interface type and mobile.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.

Packaging & Shipping
Wooden box ,shipping by sea or air.

Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
