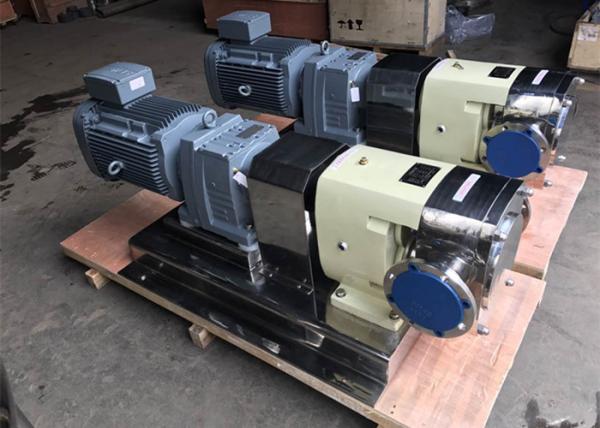

Food Grade Stainless Steel 304 316L Rotor Sanitary Lobe Pump for honey yoghourt
1. stainless steel sanitary lobe rotor pump high viscosity cooking oil pump is special designed for liquid sugar, vegetable oil, edible oil, molasses, chocolate, cooking oil, paste, milk, fruit, etc.
2. The dependable rust protection and the non-toxic sealing of the pump ensure the safety and the sanitary standard.
3. Apply to the transfer of the mediums that are easy-foaming/high viscosity/high concentration/with solid and protect them from physicochemical reaction & remain the same.
4. Low rotational speed prevent the change of existing quality, physics and chemistry properties.

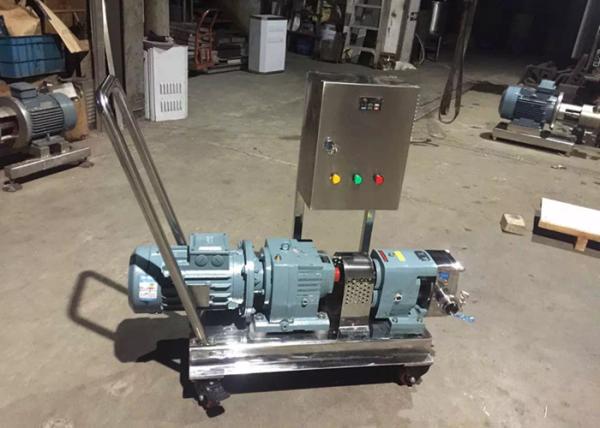

5. Three motor type: CVT Stepless variable speed motor, Fixed ratio gear-box motors, Frequency conversion variable speed motor. It can configured with insulation jacket, Water cooling device, Trolley.
Working Principle: | Double rotors |
Main applications: | Oil, food, colloid |
Driver: | Electric motor |
Power Specs: | 220V,240V,380V,400V,415V,440V 50hz/60hz |
Max.permissible fluid temperature: | 100°C(212°F) / 200°C(392°F)-water cool type |
Type of connection: | Quick clamp, Flange, Thread, SMS, Barb, Square port |
Position of inlet/outlet: | Horizontal or Vertical |
Casing/Inner parts material: | SS304, SS316L |
Shaft seal type: | Mechanical seal |
Maximum viscosity: | 1×106 C.S.T |
Maximum drive rating: | 30kW(40HP) |
Maximum caliber: | 125mm(5inch) |
Maximum discharge-side pressure: | 1.6MPa(16bar) |
Suction pressure | 0.08Mpa(0.8bar) |
Flow rate range: | 0.3-72m3/h(1.3-316.8US.GPM) |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Packaging & Shipping
Wooden box ,shipping by sea or air.
Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
