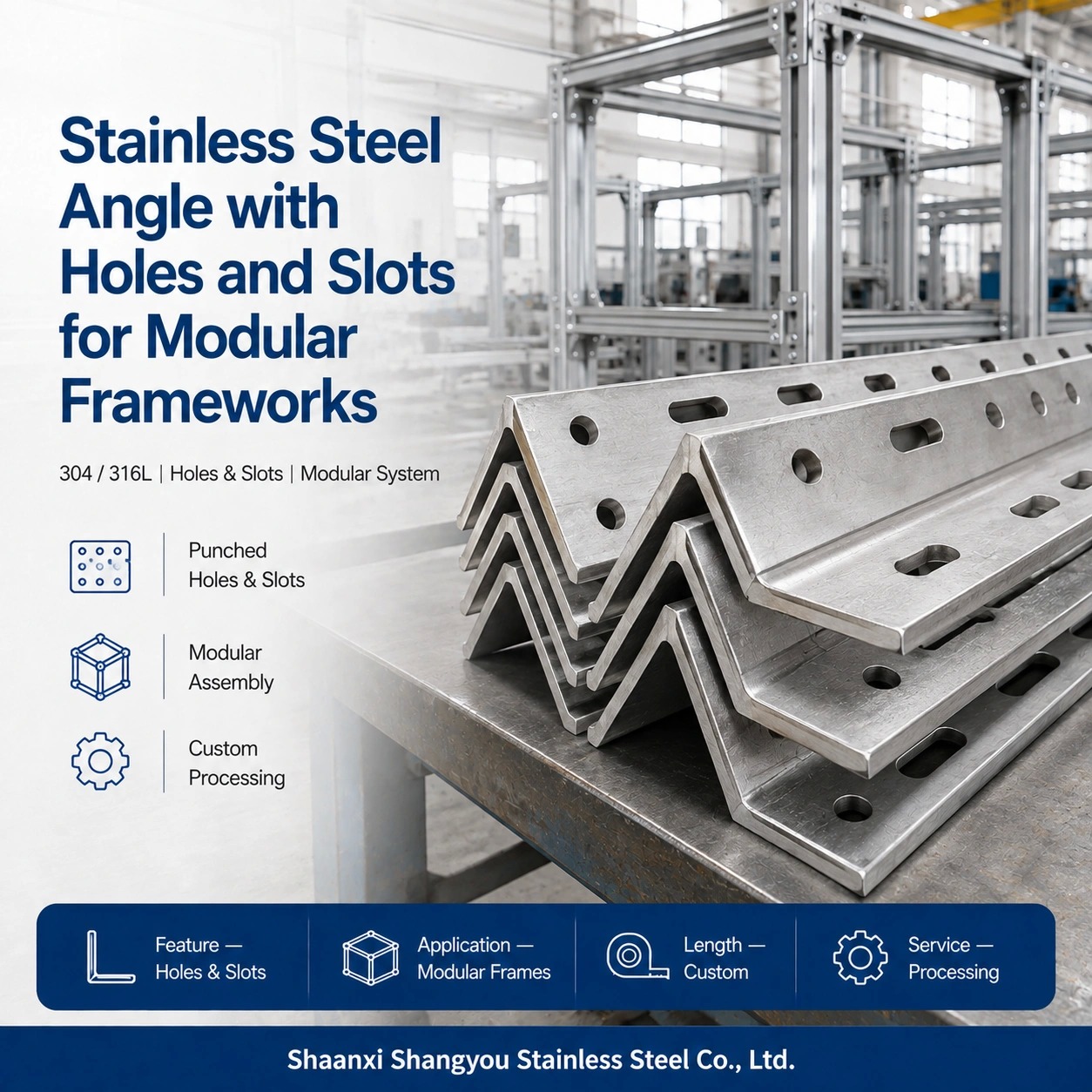

Stainless Steel Angle with Holes and Slots for Modular Frameworks
Stainless Steel Angle with Holes and Slots for Modular Frameworks
Specifications
Slots :
Straight or elongated
Process :
Drilling, laser cutting or punching
Place of Origin :
china
Brand Name :
Shangyou
Model Number :
Stainless Steel Angle with Holes and Slots for Modular Frameworks
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Profile :
Equal or unequal
Finish :
Deburred, pickled, brushed or polished
Certification :
ISO9001
Supply Ability :
Stock supply, regular production and custom manufacturing available.
Holes :
Round, countersunk or threaded
Packaging Details :
Standard seaworthy export packing with bundles, waterproof wrapping, pallets or wooden cases.
Delivery Time :
7-15
Grades :
304, 304L, 316L
MOQ :
5Ton
Price :
Based on grade, size, surface, processing, quantity and current raw material market price.
Description
Stainless Steel Angle with Holes and Slots for Modular Frameworks

Shangyou Stainless Steel supplies equal and unequal stainless steel angles with holes, slots and drawing-based machining for modular frameworks, adjustable supports and equipment assemblies.

Typical Supply Specifications
Item Options
Grades 304, 304L, 316L
Profile Equal or unequal
Holes Round, countersunk or threaded
Slots Straight or elongated
Process Drilling, laser cutting or punching
Finish Deburred, pickled, brushed or polished
Product Details, Applications & Buyer Guidance

Hole and slot patterns must be engineered around leg width, thickness, edge distance and expected load. Holes placed too close to a corner or edge may reduce section strength or distort during punching.

The process can be completed by drilling, laser cutting or punching depending on thickness, quantity and tolerance. Custom profiles with holes, slots and designs can be produced through drawing-based fabrication.

Applications include modular machine guards, assembly frames, racks, adjustable supports, electrical enclosures and factory automation systems.

All sharp edges can be deburred. Buyers should identify whether holes are supplied as-cut, countersunk, threaded or prepared for specific fasteners.

Frequently Asked Questions
Buyer Question Answer
Can holes be added to both legs? Yes.
Are elongated slots available? Yes.
Can holes be threaded? Yes, depending on thickness.
What drawing is required? Hole size, position, pitch and edge distance.
Can the angle be polished after machining? Yes.
Are burrs removed? Deburring can be specified.
Can 316L be used? Yes.
Can the pieces be numbered? Yes.
Does punching affect flatness? It can, so straightness tolerances should be agreed.
Can complete frame kits be packed together? Yes.
GET A PROJECT-SPECIFIC QUOTE FOR ANGLE WITH HOLES & SLOTS

Send the angle size, grade, cut length, hole and slot drawing, pitch, edge distance, tolerance, fastener type, quantity and finish. Shangyou will choose drilling, laser cutting or punching and provide a component-level quotation. REQUEST A QUOTE · SEND SIZE LIST OR DRAWING
