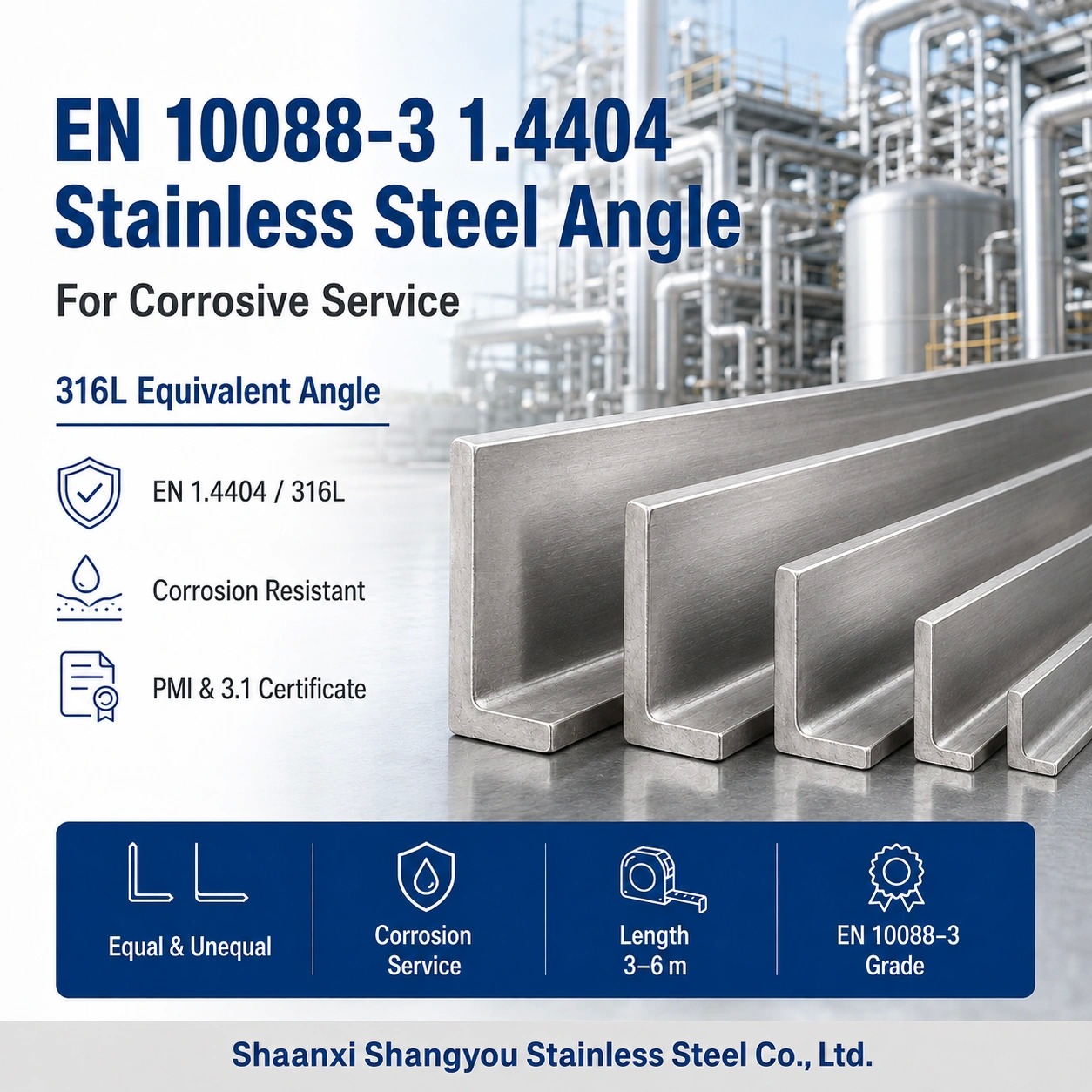

EN 10088-3 1.4404 Stainless Steel Angle for Corrosive Service

Shaanxi Shangyou Stainless Steel Co., Ltd. supplies EN 10088-3 grade 1.4404 stainless steel angle for chemical processing, coastal infrastructure, food equipment, pharmaceutical systems and wastewater facilities.

Grade 1.4404 corresponds to Type 316L / UNS S31603. It is a low-carbon, molybdenum-alloyed austenitic stainless steel used where corrosion requirements exceed those normally addressed by 1.4301.

The phrase “corrosive service” must be supported by actual operating data. Chemical concentration, temperature, chlorides, acidity, cleaning chemicals, deposits, crevices and design life all influence material suitability.

1.4404 is commonly selected for process frames, chemical equipment supports, coastal structures and hygienic machinery.

It is not universally resistant to every chemical. Buyers should provide medium, concentration, operating temperature, cleaning cycle and expected exposure conditions.

Crevices, deposits and stagnant liquid can create more severe localized corrosion conditions than open, freely drained surfaces.

Welded and polished components should be cleaned to remove heat tint and contamination where corrosion performance is critical. Surface restoration requirements should be stated on the fabrication drawing.

1. Is 1.4404 equivalent to 316L?

It is the commonly used EN designation corresponding to Type 316L / UNS S31603.

2. Is it resistant to all acids?

No. Suitability depends on chemical type, concentration and temperature.

3. Can it be used in coastal areas?

It is commonly considered, but the exact exposure severity must be assessed.

4. Can custom angles be formed from plate?

Yes.

5. Is PMI available?

Yes, for alloy verification.

6. Can XRF verify the L carbon grade?

Not independently; the low-carbon designation should be supported by material certification or suitable analysis.

7. Are polished surfaces available?

Yes.

8. Can you provide a 3.1 certificate?

Yes, when included in the order.

9. Is 1.4404 always suitable for seawater immersion?

No. Duplex or super duplex material may be needed.

10. What corrosion information should be supplied?

Medium, concentration, temperature, chlorides, exposure mode and design life.
