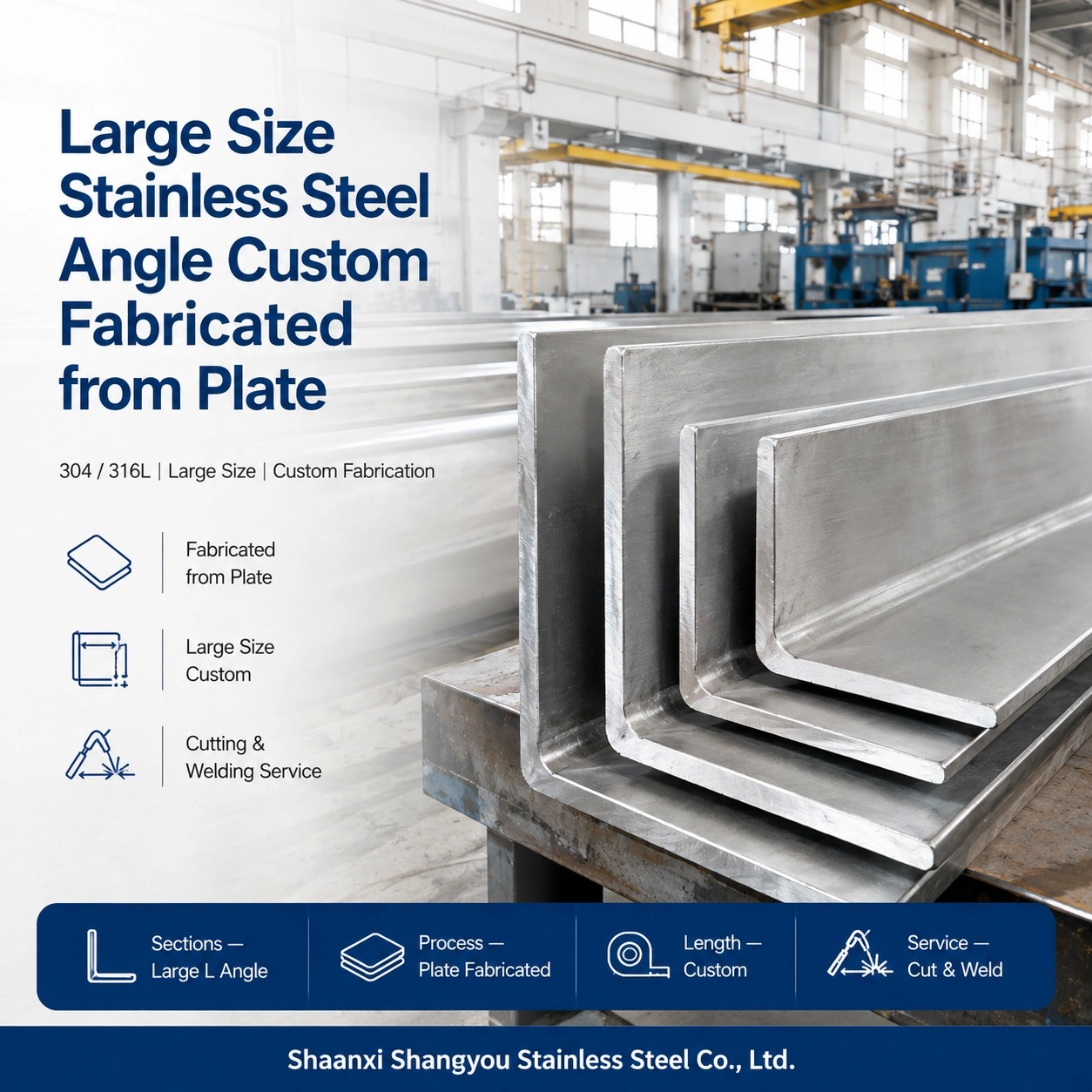

Large Size Stainless Steel Angle Custom Fabricated from Plate
Large Size Stainless Steel Angle Custom Fabricated from Plate
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Thickness :
Drawing-based
Brand Name :
Shangyou
Price :
Based on grade, size, surface, processing, quantity and current raw material market price.
Supply Ability :
Stock supply, regular production and custom manufacturing available.
Certification :
ISO9001
Type :
Equal, unequal or custom
Inspection :
Dimensions, PMI, PT and UT where applicable
Model Number :
Large Size Stainless Steel Angle Custom Fabricated from Plate
Delivery Time :
7-15
Grades :
304L, 316L, 310S, 2205, 2507, 904L
Place of Origin :
china
MOQ :
5Ton
Packaging Details :
Standard seaworthy export packing with bundles, waterproof wrapping, pallets or wooden cases.
Process :
Press-brake forming, welding or laser fusion
Length :
Custom
Description
Large Size Stainless Steel Angle Custom Fabricated from Plate

Shaanxi Shangyou Stainless Steel Co., Ltd. supplies large-size stainless steel L angles fabricated from plate for projects where conventional rolled sections do not provide the required dimensions, alloy or quantity.

Typical Supply Specifications
Item Options
Grades 304L, 316L, 310S, 2205, 2507, 904L
Type Equal, unequal or custom
Thickness Drawing-based
Process Press-brake forming, welding or laser fusion
Length Custom
Inspection Dimensions, PMI, PT and UT where applicable
Product Details, Applications & Buyer Guidance

Plate fabrication provides flexibility in leg width, thickness and special-alloy selection. It is often suitable for low-volume large sections, heavy supports and grades that are not routinely available as rolled angles.

The order must identify the manufacturing route. A press-brake-formed angle, welded angle and laser-fused angle do not have identical corner geometry, residual stress, dimensional behaviour or certification route.

If the angle is formed from certified plate, the parent material may comply with a flat-product standard rather than the finished angle automatically complying with ASTM A276. Finished-product inspection and drawing tolerances must therefore be agreed separately.

Applications include offshore modules, pressure-equipment supports, large skids, chemical structures, furnace frames and desalination systems.

Frequently Asked Questions
Buyer Question Answer
Can any size be fabricated? Feasibility depends on plate thickness, leg width and equipment capacity.
Can unequal legs be produced? Yes.
Which grades are available? Common and special grades can be reviewed.
Is tooling required? It depends on the forming method.
Can sharp corners be produced? Laser fusion or welding may be considered.
Can one prototype be supplied? It may be possible, subject to setup cost.
Is PMI available? Yes.
Can NDT be performed? Yes, where relevant.
What drawing format is accepted? PDF, DWG and DXF can be reviewed.
Is ASTM A276 automatically applicable? No; compliance depends on the completed product route.
GET A PROJECT-SPECIFIC QUOTE FOR LARGE PLATE-FABRICATED ANGLE
Upload the profile drawing with leg widths, thickness, length, radius, tolerance, alloy, quantity, welding or forming preference, NDT and certification requirements. Shangyou will issue a manufacturability review before quotation. | REQUEST A QUOTE · SEND SIZE LIST OR DRAWING
