Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh
Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh
Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh
Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh
Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh
Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh
Specifications
Brand Name :
Jianping
Model Number :
JP-2460
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Staninless Steel Rope Mesh
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Rope Constructions :
7 X 7,7 X 19
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Stair railing stainless steel rope meshdecorative balustrade wire rope meshbalcony stainless steel railing rope mesh

Stainless steel aviry mesh is made of stainless steel wire cable. There are three types: weave type, loose ferrule type and seamless sleeves type. Stainless steel rope mesh is coloured by surface treatment for decoration materials.

Close to nature and environmentally friendly. Stainless steel knotted rope mesh can be used in any climate and environment. And it is resistant to rust, although it is subject to violent sunlight, rain, snow and fog. So its service life can be up to more than 30 years. Besides, it can be used repeatedly. Above all, it doesn’t need maintenance after installation.

Luxury appearance. Stainless steel knotted rope mesh has a smooth appearance and diamond-shaped openings. The stainless steel knotted rope mesh itself is a beautiful landscape.
Outstanding elasticity and buffer ability.

Stainless Steel Rope Mesh Specification
Material stainless steel ,304,316 grade
Rope stainless steel 7 x 7 and 7 x 19
Rope wire diameter 1.5mm,2.0mm,3.0mm,4.0mm etc
Size as your requirement
Feature

1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
5.Anti-corrosive,resist the rust,can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material,safety,environmental protection.


Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh

Wire Rope Mesh Specifications Sheet

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm JP-1235
25 x 42mm JP-1225 JP-1625
30 x 52mm JP-1230 JP-1630 JP-2030
35 x 60mm JP-1235 JP-1635 JP-2035
38 x 66mm JP-1238 JP-1638 JP-2038 JP-2438
40 x 69mm JP-1240 JP-1640 JP-2040 JP-2440 JP-3040
50 x 86mm JP-1250 JP-1650 JP-2050 JP-2450 JP-3050
60 x 104mm JP-1260 JP-1660 JP-2060 JP-2460 JP-3060
70 x 120mm JP-1270 JP-1670 JP-2070 JP-2470 JP-3070
76 x 131mm JP-1276 JP-1676 JP-2076 JP-2476 JP-3076
80 x 138mm JP-1280 JP-1680 JP-2080 JP-2480 JP-3080
90 x 154mm JP-1290 JP-1690 JP-2090 JP-2490 JP-3090
100 x 173mm JP-12100 JP-16100 JP-20100 JP-24100 JP-30100
120 x 206mm JP-12120 JP-16120 JP-20120 JP-24120 JP-30120

The application of stainless steel rope mesh

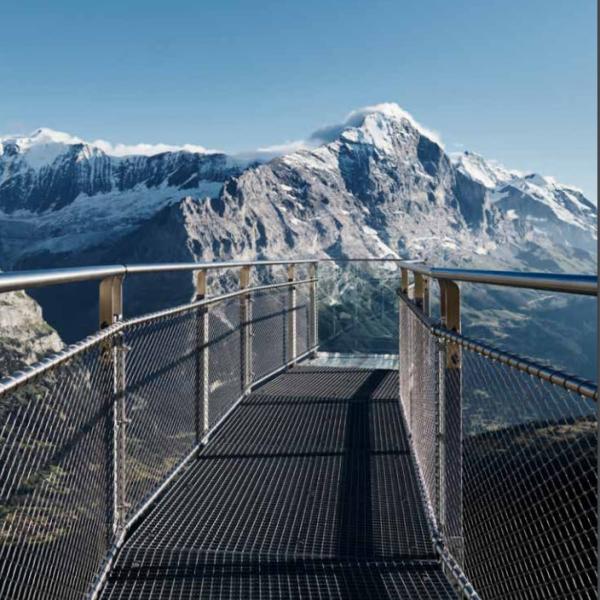

1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Zoo Mesh - Solution to Enclosing Most Animals
3. Aviary Netting - Lightweight, Durable and Long Lasting
4. Green Facade - Cable System for Most Climbing Plants

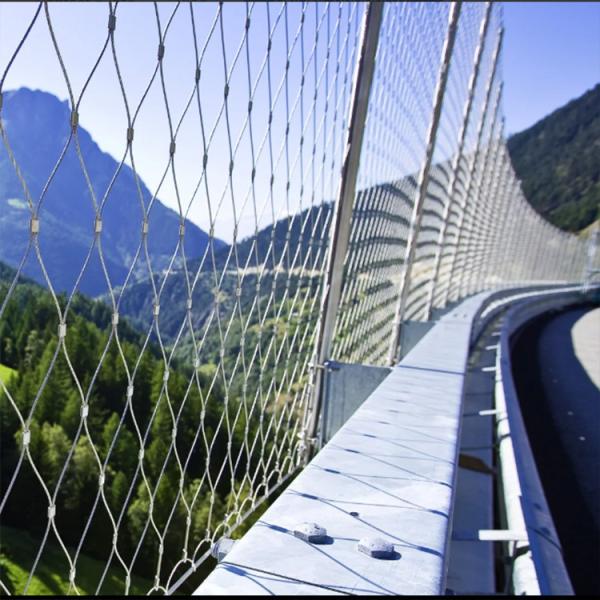

5. Cable Mesh - Excellent Solution to Safety
6. Safety Net - Structural Measure to Prevent Suicide
7. Helipad Safety Net - Modular Heliport Webbing

Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh

Packing & Delivery

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

Stair Railing Balcony Stainless Steel Rope Mesh , Decorative Balustrade Infill Panels Mesh
