2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19
Specifications
Brand Name :
Jianping
Model Number :
JP-2460
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
AISI 304 Knotted Hand Making Stainless Steel Rope Mesh
Material :
304, 316, AISI 304/316/304L/316L
Rope Constructions :
7 X 7,7X19
Mesh Type :
Ferruled Or Knotted
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Surface treatment :
Hot Dipped Galvanized/silver/black oxide finish
Description

AISI 304 Knotted Hand Making Stainless Steel Rope Mesh

Material of Stainless Steel Wire Rope

AISI 304 Knotted Hand Making Stainless Steel Rope Mesh
SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Stainless Steel Wire Rope Mesh is a modern building product that offers new ideas for global decoration and protection.Lightweight, high strength, corrosion resistance, good softness, fatigue resistance, impact resistance, breaking force, the overall structure of durable, life in more than 30 years.The stainless steel wire rope net is close to the nature, green and protects the birds feather and the animal skin, effectively prevents the rodents and other animals from biting, giving the animal a safe and comfortable living environment.

2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19

Stainless Steel Wire Rope Ferrule Mesh for Building Project Stainless Steel Rope Mesh
Product Name
 Flexible Silver and Black Stainless Steel Wire Rope Ferrule Mesh for Building Project Stainless Steel Rope Mesh
Material SS304 SS316/316L
Color Silver,Black
Wire diameter 1.2mm,1.5mm or as your order
Hole size 30x30cm,40x70mm or as your order
Length Customers' Requirement
Sample Avaliable
Feature Hand knitting, Light weight, high-strength, rustless, eco-friendly, safety, long service life, Corrosion resisatant, easy -assembly
Usage Upscale hotels, restaurants, opera houses, exhibition halls
Delivery time 7-12 days

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L

Stainless Steel Cable Mesh Specification

Stainless Steel Cable Mesh Specification
Rope Construction
Rope Diameter
Aperture
Breaking Force
inch
mm
mm
kn
7 × 19
1/8
3.2
120 × 208
7.38
7 × 19
1/8
3.2
100 × 173
7.38
7 × 19
1/8
3.2
90 × 156
7.38
7 × 7
3/32
2.4
100 × 173
4.18
7 × 7
3/32
2.4
90 × 156
4.18
7 × 7
3/32
2.4
80 × 139
4.18
7 × 7
3/32
2.4
70 × 121
4.18
7 × 7
5/64
2.0
100 × 173
3.17
7 × 7
5/64
2.0
90 × 156
3.17
7 × 7
5/64
2.0
80 × 139
3.17
7 × 7
5/64
2.0
70 × 121
3.17
7 × 7
1/16
1.6
80 × 139
2.17
7 × 7
1/16
1.6
70 × 121
2.17
7 × 7
1/16
1.6
60 × 104
2.17
7 × 7
1/16
1.6
51 × 87
2.17
7 × 7
3/64
1.2
80 × 139
1.22
7 × 7
3/64
1.2
60 × 104
1.22
7 × 7
3/64
1.2
50 × 87
1.22
7 × 7
3/64
1.2
40 × 69
1.22


2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19

The application of stainless steel cable mesh

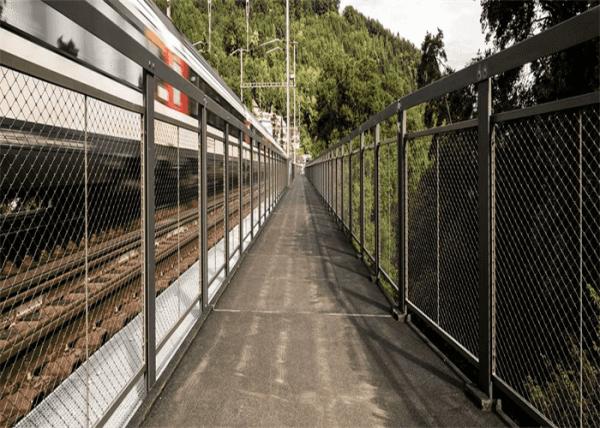

1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19

Packing & Delivery

2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

2.5mm Aisi 304 Knotted Wire Rope Mesh Hand Making 7X19

1. 100% QC inspection before shipment.

2. Competitive price-we are factory but not a trade company, we can provide you the best quality with the low price.

3. Quick response-professional lines, widely supplier sourcing and we will try our best to reply you at first time.

4. As long as provide specifications, we can do what you want products.

5. If the products you receive have any quality problems, we promise to return the goods timely.

6. Payment-we accept T/T, Western Union and Escrow.

7. We provide the sample free of charge, but we are so sorry that the courier charge is on your side.
