Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole
Specifications
Brand Name :
Jianping
Model Number :
JP-1530
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m²
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
7000m²/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Mesh
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Wire Diameter :
1.0mm 1.2 mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
15*15mm-300*300mm
Mesh Type :
Ferruled Or Knotted
Mesh Angle :
60 Degree
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7X 19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Shape :
Rhombus , Diamond
keyword :
Diamond stainless steel rope mesh
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

AISI 316 Cable Ferrule Mesh Wire Rope Net Stainless Steel Webnet With Sleeve For Zoo Animal Stainless Steel Rope Mesh

Ss Rope Mesh For Zoo Fence Mesh Stainless Steel Flexible Wire Ferrule Cable Rope Mesh Net Stainless Steel Cable Mesh

1.High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years.
5. The mesh size and diameter can be modify.

Customized flexible stainless steel cable mesh, wire rope mesh for building facade systems, green wall systems. railing & balustrade systems. safety nets. enclosure for animal in zoo.

Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole

Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole

Wire Rope Mesh Specifications Sheet
Rope Construction Rope Diameter Aperture Breaking Force
inch mm mm kn
7 × 19 1/8 3.2 120 × 208 7.38
7 × 19 1/8 3.2 100 × 173 7.38
7 × 19 1/8 3.2 90 × 156 7.38
7 × 7 3/32 2.4 100 × 173 4.18
7 × 7 3/32 2.4 90 × 156 4.18
7 × 7 3/32 2.4 80 × 139 4.18
7 × 7 3/32 2.4 70 × 121 4.18
7 × 7 5/64 2.0 100 × 173 3.17
7 × 7 5/64 2.0 90 × 156 3.17
7 × 7 5/64 2.0 80 × 139 3.17
7 × 7 5/64 2.0 70 × 121 3.17
7 × 7 1/16 1.6 80 × 139 2.17
7 × 7 1/16 1.6 70 × 121 2.17
7 × 7 1/16 1.6 60 × 104 2.17
7 × 7 1/16 1.6 51 × 87 2.17
7 × 7 3/64 1.2 80 × 139 1.22
7 × 7 3/64 1.2 60 × 104 1.22
7 × 7 3/64 1.2 50 × 87 1.22
7 × 7 3/64 1.2 40 × 69 1.22

The application of stainless steel rope mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing

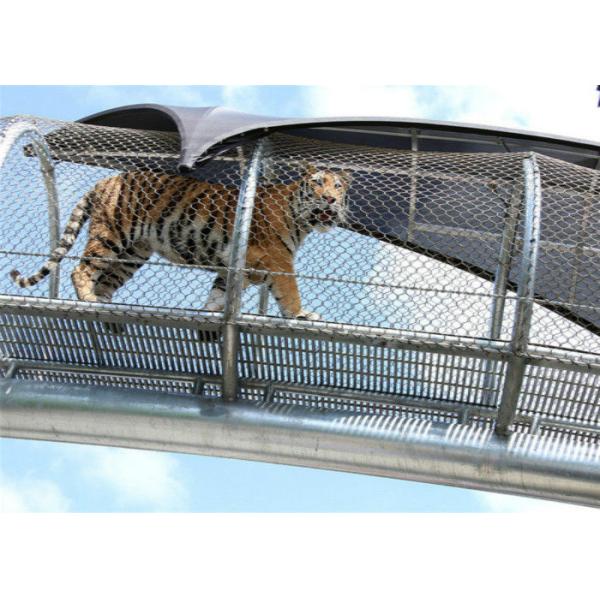

5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole

In poly bag or plastic cage ,and then in box or cartons as customer required.

Packing & Delivery

Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

Company Profile

Aisi 316 Ferrule 1.5mm Stainless Steel Rope Mesh Diamond Hole

Jianping wire mesh CO.LTD is a China company and has been operating since 2012.We are a professional manufacturer integrating the development, production and sales of metal and plastic fence, traffic signs,kinds of safty fence.

With 14,000 sq. meter of warehouse space & more than 200 well trained workers, we are able to serve wide variety of safe fence,security and enclosure needs in China and all over World. At Jianping, we specialize in fences and barriers and we take our craft seriously. It is our mission to provide you with exceptional choice, quality, efficient service, and unbeatable prices whether you are buying 1 panel or 1000 panels.

Jianping wire mesh CO.LTD offer personal service with a custom, flexible approach. Our skilled and experienced team are highly dedicated, and geared to responding to every enquiry promptly.

Why choose Jianping?

1) OEM available;
2) 10 years production experience make us more professional in the Wire Mesh fields;
3) 5 machines for manufacturing, faster production and short delivery time;
4) Pass the ISO9001 Certificate, high quality could make all clients rest assured.
