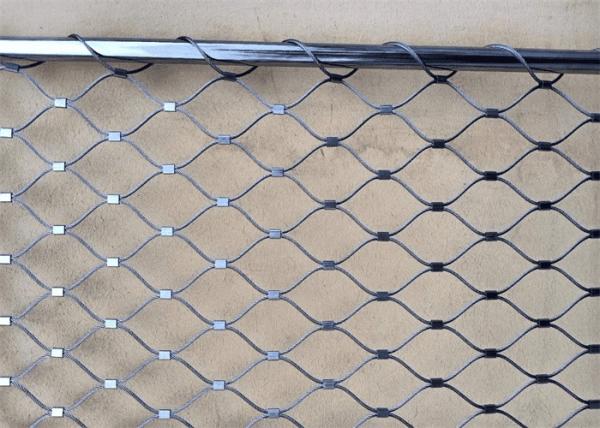

4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures
4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures
4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures
4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures
Specifications
Brand Name :
Jianping
Model Number :
JP-2050F
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Mesh,Stainless Steel Rope Mesh
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Rope Constructions :
7 X 7,7X 19
Mesh Type :
Ferruled Or Knotted
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Color :
Silver/Copper/Black/ Yellow/Blue/Green
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Surface treatment :
Hot Dipped Galvanized/silver/black oxide finish
Description

Stainless Steel Rope Mesh A Stainless Steel Wire Rope Mesh A Stainless Steel Wire Cable Rope Mesh

Stainless Steel Cable Mesh,stainless steel rope net

Material:Stainless steel rope mesh made from high-carbon steel wire rope, 304,304L, 316,316L.

Stainless steel wire rope mesh also name as stainless steel cable mesh , it is a kind of hand-making mesh by stainless steel wire rope . It is available in bulk rolls .The mesh can be stretched tight to conform to a rigid structure design,or can be draped like a tent to reduce impact damage to flying birds .

www.ss-ropemesh.com. Type: The Stainless Steel Cable Mesh are hand-made from the SS wire rope, there are two types: ferruled mesh and knotted mesh;

1).ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

2).knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

Stainless Steel Wire Rope Mesh is a modern building product that offers new ideas for global decoration and protection.Lightweight, high strength, corrosion resistance, good softness, fatigue resistance, impact resistance, breaking force, the overall structure of durable, life in more than 30 years.The stainless steel wire rope net is close to the nature, green and protects the birds feather and the animal skin, effectively prevents the rodents and other animals from biting, giving the animal a safe and comfortable living environment.

4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures

Flexible Silver and Black Stainless Steel Wire Rope Ferrule Mesh for Building Project Stainless Steel Rope Mesh

Stainless Steel Cable Mesh Specification

Stainless Steel Cable Mesh Specification
Rope Construction
Rope Diameter
Aperture
Breaking Force
inch
mm
mm
kn
7 × 19
1/8
3.2
120 × 208
7.38
7 × 19
1/8
3.2
100 × 173
7.38
7 × 19
1/8
3.2
90 × 156
7.38
7 × 7
3/32
2.4
100 × 173
4.18
7 × 7
3/32
2.4
90 × 156
4.18
7 × 7
3/32
2.4
80 × 139
4.18
7 × 7
3/32
2.4
70 × 121
4.18
7 × 7
5/64
2.0
100 × 173
3.17
7 × 7
5/64
2.0
90 × 156
3.17
7 × 7
5/64
2.0
80 × 139
3.17
7 × 7
5/64
2.0
70 × 121
3.17
7 × 7
1/16
1.6
80 × 139
2.17
7 × 7
1/16
1.6
70 × 121
2.17
7 × 7
1/16
1.6
60 × 104
2.17
7 × 7
1/16
1.6
51 × 87
2.17
7 × 7
3/64
1.2
80 × 139
1.22
7 × 7
3/64
1.2
60 × 104
1.22
7 × 7
3/64
1.2
50 × 87
1.22
7 × 7
3/64
1.2
40 × 69
1.22


4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures

Packing & Delivery

4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

4.0mm Aisi 304l Stainless Steel Ferrule Rope Mesh For Zoological Enclosures

1. 100% QC inspection before shipment.

2. Competitive price-we are factory but not a trade company, we can provide you the best quality with the low price.

3. Quick response-professional lines, widely supplier sourcing and we will try our best to reply you at first time.

4. As long as provide specifications, we can do what you want products.

5. If the products you receive have any quality problems, we promise to return the goods timely.

6. Payment-we accept T/T, Western Union and Escrow.

7. We provide the sample free of charge, but we are so sorry that the courier charge is on your side.
