304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing
Specifications
Brand Name :
Jianping
Model Number :
JP-2450
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Staninless Steel Rope Mesh
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Mesh Type :
Ferruled Or Knotted
Rope Constructions :
7 X 7
Mesh Angle :
60 Degree
Finished :
Ultrasonic Bath , Black Oxide
Mesh Shape :
Rhombus , Diamond
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

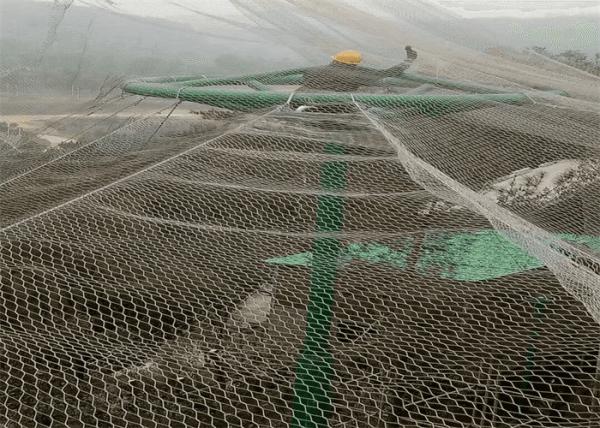

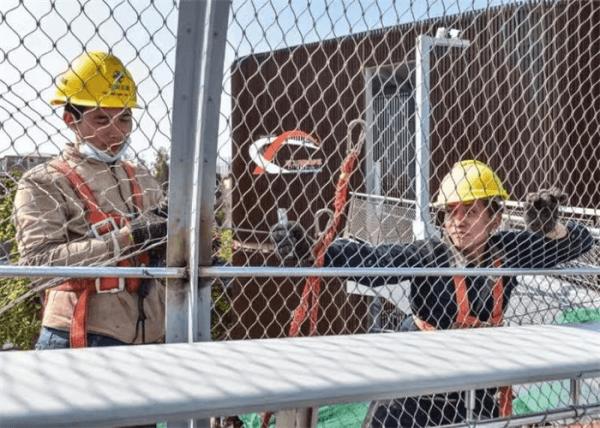

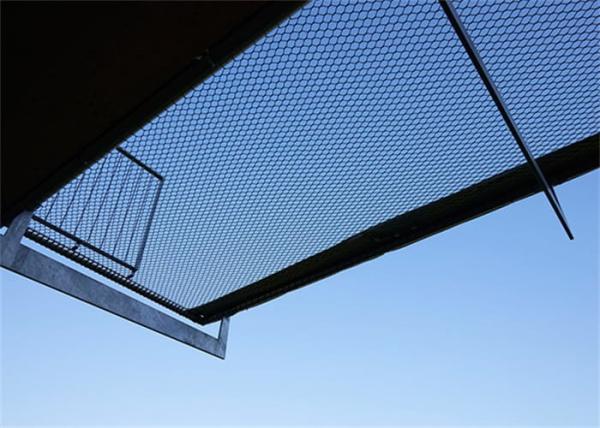

304 Stainless Steel Wire Rope Mesh/High-Altitude Anti-Dropping Net/Bridge Anti-Throwing Net/Stainless Steel Rope Mesh

Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.

It is maintenance-free, corrosion-resistant, requires no caustic cleaners or coatings, and is fully recyclable.Its unique 3-D characteristics allow amazing design flexibility.

X-TEND's ability to act as a 3-D structural element reduces the need for traditional building materials while permitting high load capacity and long spans. The result is a light, scalable, low-mass structure with greatly reduced material and installation costs.
Once installed, it requires no adjustment and retains its shape and resiliency indefinitely.It is particularly well suited for even the harshest climates.

Stainless Steel Rope Mesh Specification
item
 value
Place of Origin China
Hebei
Material STAINLESS STEEL WIRE
Type Wire Cloth
Application Woven Wire Mesh
Weave Style Plain Weave
Technique woven
Model Number JP-H07
Brand Name JianPing
Delivery Time 8-14 days
Product name Stainless Steel Wire Rope Mesh
Length 30m/roll 50m/roll
Hole shape Diamond Hole
MOQ 100 Rolls
Raw Material 304 316 316L 430 Stainless Steel Wire
Mesh size 2CM-20CM
Sample
Avaliable
Diameter 1MM-6MM
Factory experience 12years
PAYMENT TERMS 30%TT Advance + 70% Balance payment

304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing

304 Stainless Steel Wire Rope Mesh/High-Altitude Anti-Dropping Net/Bridge Anti-Throwing Net/Stainless Steel Rope Mesh

Wire Rope Mesh Specifications Sheet

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm JP-1235
25 x 42mm JP-1225 JP-1625
30 x 52mm JP-1230 JP-1630 JP-2030
35 x 60mm JP-1235 JP-1635 JP-2035
38 x 66mm JP-1238 JP-1638 JP-2038 JP-2438
40 x 69mm JP-1240 JP-1640 JP-2040 JP-2440 JP-3040
50 x 86mm JP-1250 JP-1650 JP-2050 JP-2450 JP-3050
60 x 104mm JP-1260 JP-1660 JP-2060 JP-2460 JP-3060
70 x 120mm JP-1270 JP-1670 JP-2070 JP-2470 JP-3070
76 x 131mm JP-1276 JP-1676 JP-2076 JP-2476 JP-3076
80 x 138mm JP-1280 JP-1680 JP-2080 JP-2480 JP-3080
90 x 154mm JP-1290 JP-1690 JP-2090 JP-2490 JP-3090
100 x 173mm JP-12100 JP-16100 JP-20100 JP-24100 JP-30100
120 x 206mm JP-12120 JP-16120 JP-20120 JP-24120 JP-30120

The application of stainless steel rope mesh

Item Cable diameter mesh opening Application
JP-SS200/2 2.0mm 200*200mm Architecture outdoor mesh
JP-SS40/02 2.0mm 40*40mm Playground mesh,stadium protection mesh
JP-SS50/02 2.0mm 50*50mm Playground mesh,decorative indoor mesh
JP-SS60/02 2.0mm 60*60mm Architecture outdoor mesh,Playground mesh
JP-SS80/02 2.0mm 80*80mm decorative indoor mesh,Aviary mesh
JP-SS100/02 2.0mm 100*100mm airport protection mesh
JP-SS12002 2.0mm 120*120mm suspended ceiling mesh
JP-SS140/02 2.0mm 140*140mm overhead coverage mesh
JP-SS60/1.5 1.5mm 60*60mm Playground mesh,Stairs Fence
JP-SS50/1.5 1.5mm 50*50mm Stairs Fence
JP-SS30/1.5 1.5mm 30*30mm shading canopy mesh,Tower Protection Net
JP-SS25/1.5 1.5mm 25*25mm Aviary mesh
JP-SS20/01 1.0mm 20*20mm Aviary mesh
JP-SS30/01 1.0mm 30*30mm Aviary mesh
JP-SS40/01 1.0mm 40*40mm Playground mesh,protection mesh
JP-SS50/2.5 2.5mm 50*50mm Animal enclosure
JP-SS100/03 3.0mm 100*100mm safety net,overhead coverage mesh
JP-SS40/03 3.0mm 40*40mm Playground mesh
JP-SS50/03 3.0mm 50*50mm barrier mesh,decorative indoor mesh
JP-SS80/03 3.0mm 80*80mm Bridge safety net
JP-SS100/1.5 1.5mm 100*100mm

Architecture outdoor mesh,

Pool protective net,Stairs Net
JP-SS40/1.5 1.5mm 40*40mm

Playground mesh,aviary mesh,

Stairs Fence,Architecture mesh,

Animal enclosure

304L 304 Stainless Steel Rope Mesh Wire Mesh 1.2mm Anti-Dropping Anti-Throwing

Delivevr time :
10~20 workinng days after payment receipt confirmed (based on actual quantity)
Packing :
standard export packing or customized packing as your request.
