Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony
Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony
Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony
Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony
Specifications
Brand Name :
JP Stainless Steel Cable Mesh
Model Number :
JP-2460
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Perth X-Tend Stainless Steel Cable Mesh Rope Net Railings
Material :
304, 316, AISI 304/316/304L/316L
Mesh Type :
Ferruled Or Knotted
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Perth X-Tend Stainless Steel Cable Mesh Rope Net Railings For Balcony

Material of Stainless Steel Wire Rope

AISI 304 Perth X-Tend Stainless Steel Cable Mesh Rope Net Railings
SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Perth X-Tend Stainless Steel Cable Mesh Rope Net Railings is a modern building product that offers new ideas for global decoration and protection.Lightweight, high strength, corrosion resistance, good softness, fatigue resistance, impact resistance, breaking force, the overall structure of durable, life in more than 30 years.The Perth X-Tend Stainless Steel Cable Mesh Rope Net Railings is close to the nature, green and protects the birds feather and the animal skin, effectively prevents the rodents and other animals from biting, giving the animal a safe and comfortable living environment.

Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony

Perth X-Tend Stainless Steel Cable Mesh Rope Net Railings
Product Name
 Perth X-Tend Stainless Steel Cable Mesh Rope Net Railings
Material SS304 SS316/316L
Color Silver,Black
Wire diameter 1.2mm,1.5mm or as your order
Hole size 30x30cm,40x70mm or as your order
Length Customers' Requirement
Sample Avaliable
Feature Hand knitting, Light weight, high-strength, rustless, eco-friendly, safety, long service life, Corrosion resisatant, easy -assembly
Usage Upscale hotels, restaurants, opera houses, exhibition halls
Delivery time 7-12 days

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L

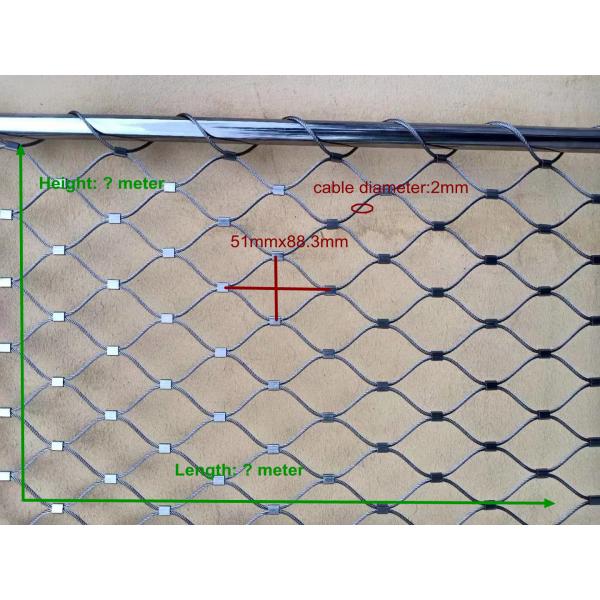

Stainless Steel Cable Mesh Specification

Stainless Steel Cable Mesh Specification
Rope Construction
Rope Diameter
Aperture
Breaking Force
inch
mm
mm
kn
7 × 19
1/8
3.2
120 × 208
7.38
7 × 19
1/8
3.2
100 × 173
7.38
7 × 19
1/8
3.2
90 × 156
7.38
7 × 7
3/32
2.4
100 × 173
4.18
7 × 7
3/32
2.4
90 × 156
4.18
7 × 7
3/32
2.4
80 × 139
4.18
7 × 7
3/32
2.4
70 × 121
4.18
7 × 7
5/64
2.0
100 × 173
3.17
7 × 7
5/64
2.0
90 × 156
3.17
7 × 7
5/64
2.0
80 × 139
3.17
7 × 7
5/64
2.0
70 × 121
3.17
7 × 7
1/16
1.6
80 × 139
2.17
7 × 7
1/16
1.6
70 × 121
2.17
7 × 7
1/16
1.6
60 × 104
2.17
7 × 7
1/16
1.6
51 × 87
2.17
7 × 7
3/64
1.2
80 × 139
1.22
7 × 7
3/64
1.2
60 × 104
1.22
7 × 7
3/64
1.2
50 × 87
1.22
7 × 7
3/64
1.2
40 × 69
1.22


Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony

The application of stainless steel cable mesh

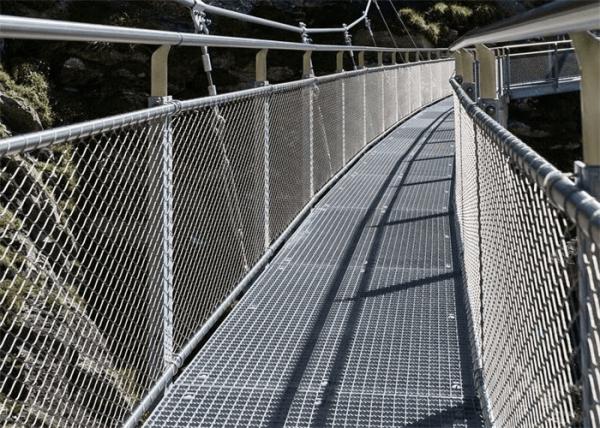

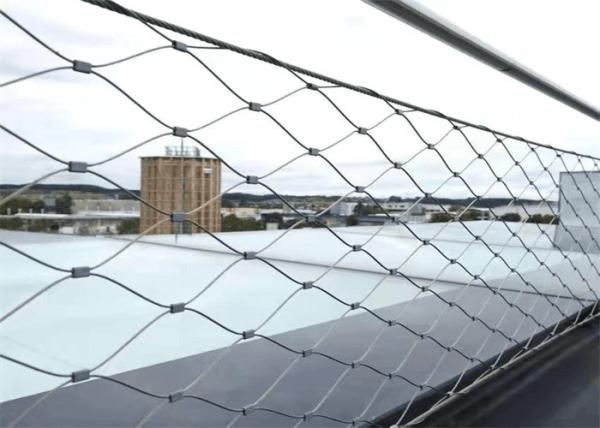

1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony

Packing & Delivery

Perth 1.2mm 1.5mm Wire X Tend Cable Mesh SS Rope Mesh Railings For Balcony

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.
