Specifications
Brand Name :
Jianping
Model Number :
JP-2080W
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Inter-Woven Mesh
Material :
304, 316, 316L
Mesh Type :
Ferruled Or Knotted
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7×19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

SS304 Animal Enclosure Of Stainless Steel Cable Inter-Woven Mesh


1. Stainless Steel Cable Mesh Product Parameters:

SS304 Animal Enclosure Of Stainless Steel Cable Inter-Woven Mesh/Stainless Steel Cable Mesh
Material Stainless steel wire 304/316/316L
Wire diameter 1.0MM-6.0MM
Hole size Can be customized.depend on your requirment
Wire structure 7*7,7*19
Feature 1.Lightweight, high strength.
2.Environmentally friendly and corrosion.
3.Long life, corrosion resistance.
Usages Stainless steel wire rope mesh is widely used as the safety fence in the zoo,animal cage,
aviary mesh, bird cage, bird netting.Balustrade mesh,railing mesh,plant climbing wall,architectural mesh,falling prevention mesh,staircase protective mesh, The courtyard security fence.

Ferrule Stainless Steel Cable Mesh Railing Interwoven 2.0m SS304 For Animal Enclosure

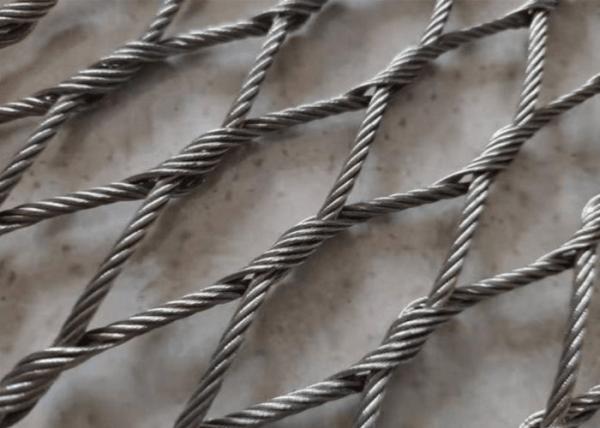

Stainless steel cable inter-woven mesh is woven by hand, so it is also called stainless steel hand-woven cable mesh. Its material are generally 7*7 or 7*19 structure stainless steel wire cable. This kind of mesh has the advantages of light weight, good stength and high transparency.It is especially suitable to be used as zoo enclosure mesh or aviary mesh.Compared with other ordinary wire mesh,cable mesh is more suitable for large-span installation, it has a good resistance to storms. And it also has good protection effect for flying bird or land animals because of its flexibility and elasticity. JP company has rich experience in producing the hand-woven cable mesh, and we had also undertaken many installation projects for zoo enclosures and aviaries. This kind of mesh also can be used as safety or protective mesh according to our clients' requirement.

Flexible stainless steel wire rope mesh(Inter-woven Type)
Item No.s Cable Diameter Mesh Opening Size
inch mm inch mm
JP-3212W 1/8 3.2 4.75 x 4.75 120 x 120
JP-3210W 1/8 3.2 4 x 4 102 x 102
JP-3290W 1/8 3.2 3.55 x 3.55 90 x 90
JP-3276W 1/8 3.2 3 x 3 76 x 76
JP-3250W 1/8 3.2 2 x 2 51 x 51
JP-2410W 3/32 2.4 4 x 4 102 x 102
JP-2490W 3/32 2.4 3.55 x 3.55 90 x 90
JP-2476W 3/32 2.4 3 x 3 76 x 76
JP-2460W 3/32 2.4 2.4 x 2.4 60 x 60
JP-2450W 3/32 2.4 2 x 2 51 x 51
JP-2076W 5/64 2.0 3 x 3 76 x 76
JP-2060W 5/64 2.0 2.4 x 2.4 60 x 60
JP-2050W 5/64 2.0 2 x 2 51 x 51
JP-2038W 5/64 2.0 1-1/2 x 1-1/2 38 x 38
JP-1676W 1/16 1.6 3 x 3 76 x 76
JP-1650W 1/16 1.6 2 x 2 51 x 51
JP-1638W 1/16 1.6 1-1/2 x 1-1/2 38 x 38
JP-1630W 1/16 1.6 1.2 x 1.2 30 x 30
JP-1625W 1/16 1.6 1 x 1 25.4 x 25.4
JP-1238W 3/64 1.2 1-1/2 x 1-1/2 38 x 38
JP-1230W 3/64 1.2 1.2 x 1.2 30 x 30
JP-1225W 3/64 1.2 1 x 1 25.4 x 25.4
JP-1220W 3/64 1.2 4/5 X 4/5 20 x 20



2. Applications:

Flexible stainless steel cable mesh, inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The
mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages
compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.

Ferrule Stainless Steel Cable Mesh Railing Interwoven 2.0m SS304 For Animal Enclosure

zoo mesh bird aviary cable mesh animal enclosure mesh

Ferrule Stainless Steel Cable Mesh Railing Interwoven 2.0m SS304 For Animal Enclosure

Green wall mesh animal enclosure mesh animal enclosure mesh

Ferrule Stainless Steel Cable Mesh Railing Interwoven 2.0m SS304 For Animal Enclosure
Why choose Jianping?
1) OEM available;
2) 10 years production experience make us more professional in the Wire Mesh fields;
3) 5 machines for manufacturing, faster production and short delivery time;
4) Pass the ISO9001 Certificate, high quality could make all clients rest assured.
