SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend
SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend
SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend
SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend
Specifications
Brand Name :
Jianping
Model Number :
JP-2060
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Ferrule Mesh
Material :
304, 316, 316L
Mesh Angle :
60 Degree
Rope Constructions :
7 X 7,7×19
Wire Diameter :
1.2Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

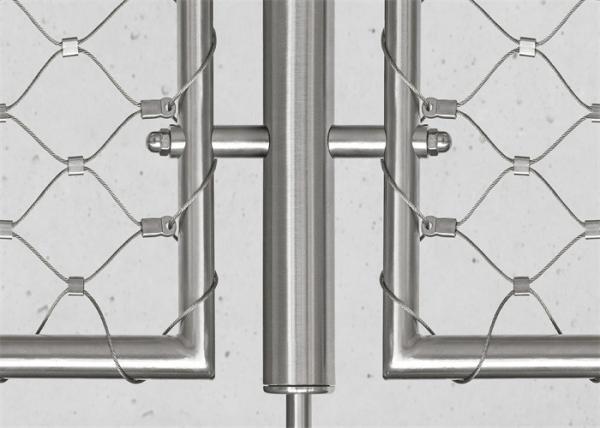

SS304 Handrail Infills By X-TEND Stainless Steel Cable Ferrule Mesh/Stainless Steel Cable Mesh


1.Product Description:

Stainless steel cable ferrule type mesh is also called SS ferrule mesh or X-TEND mesh. The mainly material is stainless steel cable and stainless steel ferrule. It is produced by putting the ferrules tough the cable first, and then press the ferrule using special molds. This kind of mesh has very beautiful appreance, it also has very good strength and flexibility. We can product various types of ferrule mesh in different cable diameter and mesh opening to meet our clients' requirement.

SS304 Handrail Infills By X-TEND Stainless Steel Cable Ferrule Mesh
Material Stainless steel wire 304/316/316L
Wire diameter 1.0MM-6.0MM
Hole size Can be customized.depend on your requirment
Wire structure 7*7,7*19
Feature 1.Lightweight, high strength.
2.Environmentally friendly and corrosion.
3.Long life, corrosion resistance.

SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend

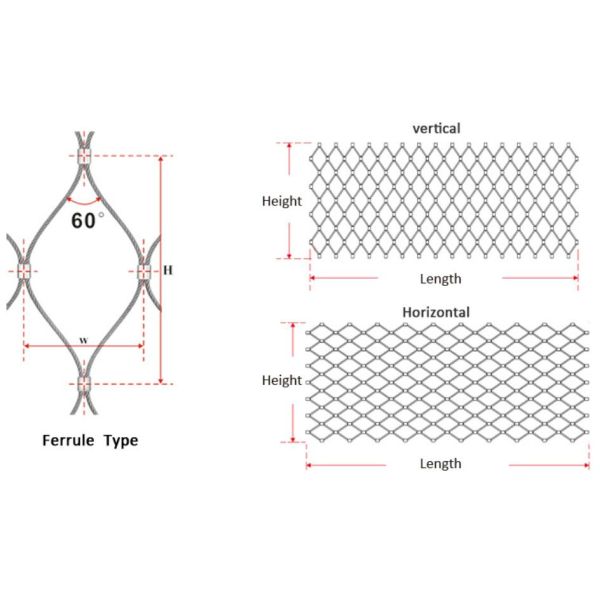

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size(W×H)
inch mm inch mm
JP-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
JP-32102F 1/8 3.2 4 x 6.9 102 x 176.7
JP-3290F 1/8 3.2 3.55 x 6.15 90 x 156
JP-3276F 1/8 3.2 3 x5.2 76 x 131.6
JP-3251F 1/8 3.2 2 x3.46 51 x88.3
JP-24102F 3/32 2.4 4x6.9 102x176.7
JP-2490F 3/32 2.4 3.55x6.15 90x 156
JP-2476F 3/32 2.4 3 x 5.2 76x 131.6
JP-2460F 3/32 2.4 2.4x 4.16 60x 104
JP-2451F 3/32 2.4 2x3.46 51 x 88.3
JP-2076F 5/64 2.0 3 x 5.2 76 x 131.6
JP-2060F 5/64 2.0 2.4x 4.16 60 x 104
JP-2051F 5/64 2.0 2 x 3.46 51 x 88.3
JP-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
JP-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
JP-1651F 1/16 1.6 2x 3.46 51 x 88.3
JP-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
JP-1630F 1/16 1.6 1.2x2.08 30 x 52
JP-1625F 1/16 1.6 1 x 1.73 25.4 x 44
JP-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
JP-1230F 3/64 1.2 1.2 x 2.08 30 x 52
JP-1225F 3/64 1.2 1 x 1.73 25.4 x 44
JP-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6

SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend

Stainless steel cable ferrule mesh


2. Applications:

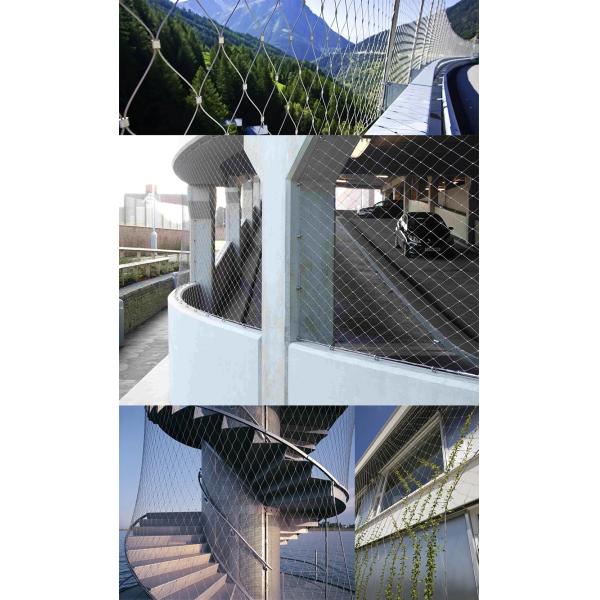

The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend

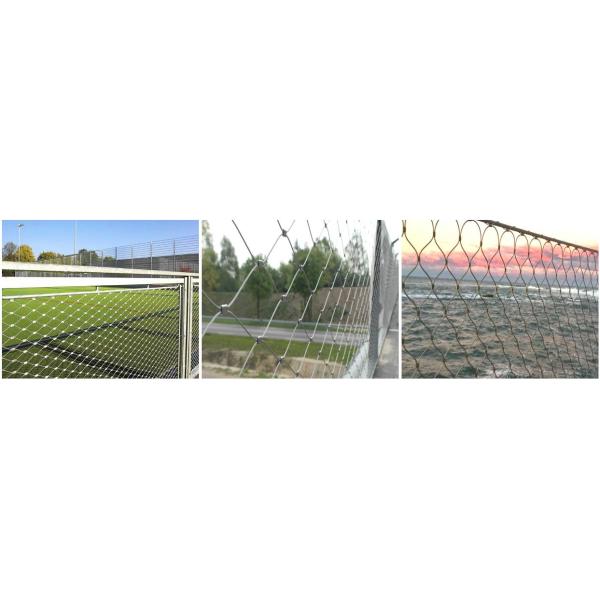

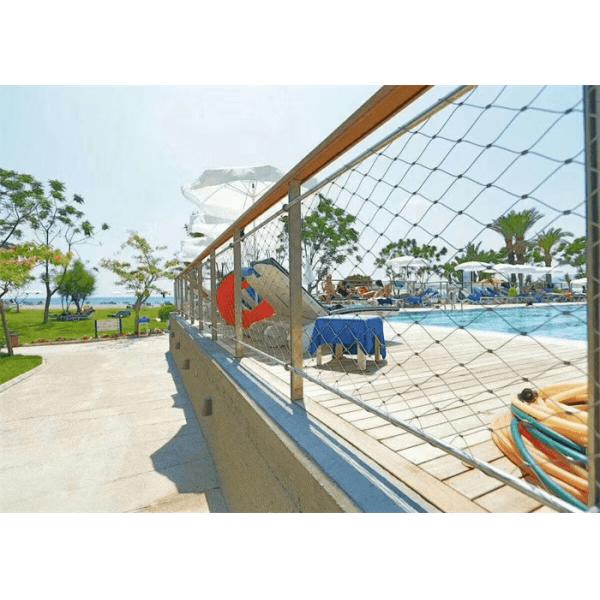

Ferrule mesh handrail infills Stainless steel cable safety mesh Stainless steel cable protection mesh

SS304 Stainless Steel Cable Mesh Trellis 300*300mm Handrail Infills X Tend

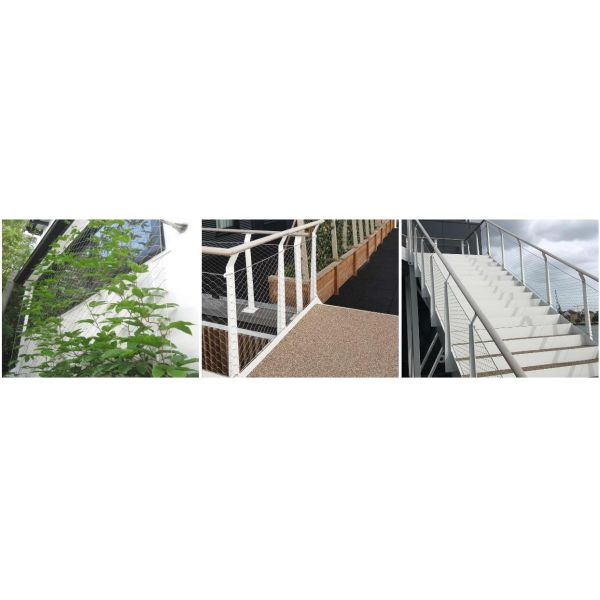

Stainless steel cable mesh green wall Ferrule mesh handrail infills Ferrule mesh handrail infills
