316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh
Specifications
Brand Name :
Jianping
Model Number :
JP-2070
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD m5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Knotted Mesh
Material :
304, 316, 316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7×19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing,Stainless Steel Cable Hand Woven Mesh
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

316 Marine Grade Bridge Stairway Netting Of With Stainless Steel Cable Knotted Mesh Netting


1.Stainless Steel Cable Knotted Mesh Product Description:

Stainless steel cable knotted mesh

Applications: zoo mesh, animal enclosure, bird aviary, anti-falling safety net, garden fence.

Material: SS304/SS316/SS316L

Flexibility: flexible in all directions

Stainless Steel Cable Knotted Mesh Netting 316 Marine Grade Bridge Stairway Netting
Product Name Stainless Steel Cable Knotted Mesh Netting 316 Marine Grade Bridge Stairway Netting
Material stainless steel 304/316/316L
Color silver,black
Wire diameter 3.18mm(1/8″),3.0mm, 3/32″(2.4mm), 1/16″(1.6mm), 1.5mm, 3/64″(1.2mm) and 1.0mm
Hole size 12.7mm x 12.7mm(1/2″ x 1/2″) ,4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25mm x 25mm), 30mm x 30mm,1-1/2″ x 1-1/2″(38mm x 38mm), 40mm x 40mm, 2″ x 2″(51mm x 51mm), 60mm x 60mm, 3″ x 3″(76mm x 76mm), 80mm x 80mm, 90mm x 90mm, 4″ x 4″ (102mm x 102mm) and 120mm x 120mm
Type Knotted or Ferruled
Features 1. lightweight, high strength, durable, good softness and fatigue resistance, impact resistance, large breaking force, the overall structure is strong and durable.
2. close to nature, green environmental protection, effective protection bird feathers and animal skin, effectively prevent rodents and other animals bite, give animals a safe and comfortable living environment.
3. good transparency, luxurious appearance, novel style, can be integrated with the surrounding environment, have very good decorative and protective effect.
4. one-time investment, permanent use, do not need any maintenance, the comprehensive economic benefit is can't be matched by other wire mesh products.
Application zoo mesh, animal enclosure mesh, animal containment mesh, fence netting, bird netting, sports netting, graden netting etc.
Flexible stainless steel wire rope mesh(knotted Type)
tem No.s Cable Diameter Mesh Opening Size
inch mm inch mm
JP-3212W 1/8 3.2 4.75 x 4.75 120 x 120
JP-3210W 1/8 3.2 4 x 4 102 x 102
JP-3290W 1/8 3.2 3.55 x 3.55 90 x 90
JP-3276W 1/8 3.2 3 x 3 76 x 76
JP-3250W 1/8 3.2 2 x 2 51 x 51
JP-2410W 3/32 2.4 4 x 4 102 x 102
JP-2490W 3/32 2.4 3.55 x 3.55 90 x 90
JP-2476W 3/32 2.4 3 x 3 76 x 76
JP-2460W 3/32 2.4 2.4 x 2.4 60 x 60
JP-2450W 3/32 2.4 2 x 2 51 x 51
JP-2076W 5/64 2.0 3 x 3 76 x 76
JP-2060W 5/64 2.0 2.4 x 2.4 60 x 60
JP-2050W 5/64 2.0 2 x 2 51 x 51
JP-2038W 5/64 2.0 1-1/2 x 1-1/2 38 x 38
JP-1676W 1/16 1.6 3 x 3 76 x 76
JP-1650W 1/16 1.6 2 x 2 51 x 51
JP-1638W 1/16 1.6 1-1/2 x 1-1/2 38 x 38
JP-1630W 1/16 1.6 1.2 x 1.2 30 x 30
JP-1625W 1/16 1.6 1 x 1 25.4 x 25.4
JP-1238W 3/64 1.2 1-1/2 x 1-1/2 38 x 38
JP-1230W 3/64 1.2 1.2 x 1.2 30 x 30
JP-1225W 3/64 1.2 1 x 1 25.4 x 25.4
JP-1220W 3/64 1.2 4/5 X 4/5 20 x 20

product information

316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh

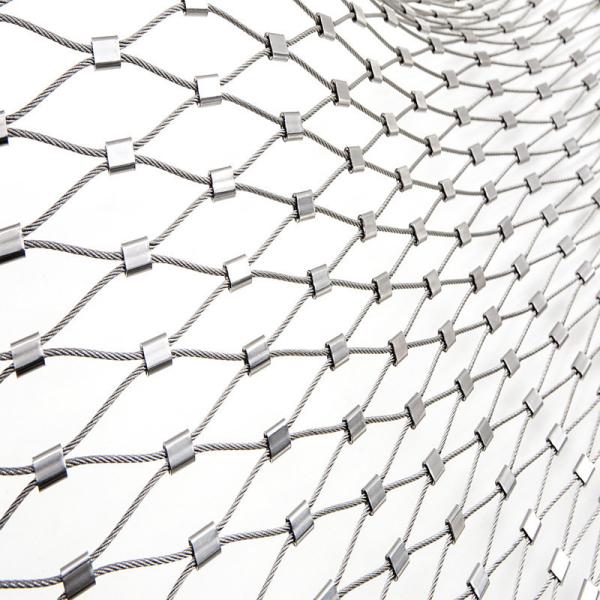

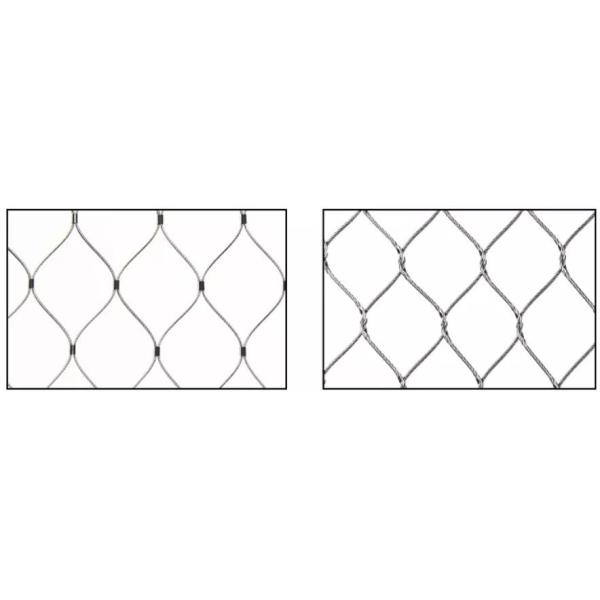

ferrulde Stainless Steel Cable Mesh woven Stainless Steel Cable Mesh




2. Applications:

Flexible stainless steel cable mesh, hand woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The
mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages
compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.

316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh

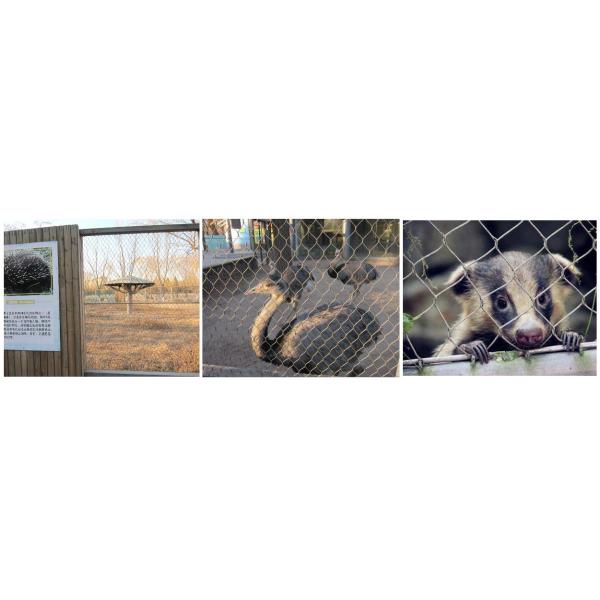

Green wall mesh animal enclosure mesh animal enclosure mesh

316 Bridge Stair Railing Safety Net Knotted Black Oxide Architectural Metal Mesh

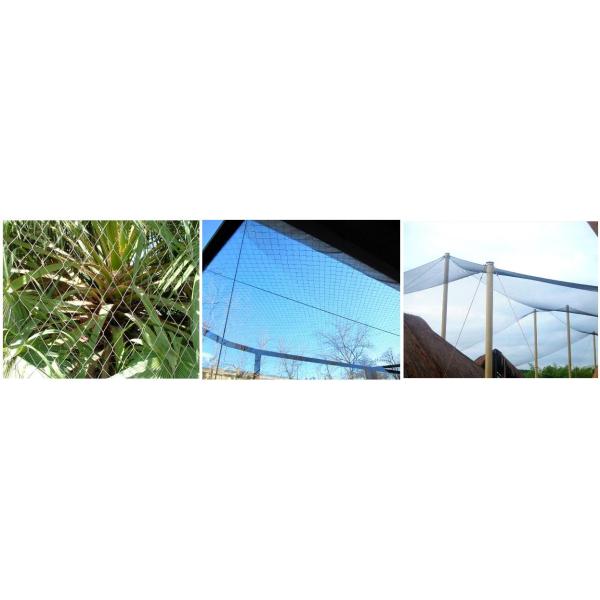

zoo mesh bird aviary cable mesh animal enclosure mesh
