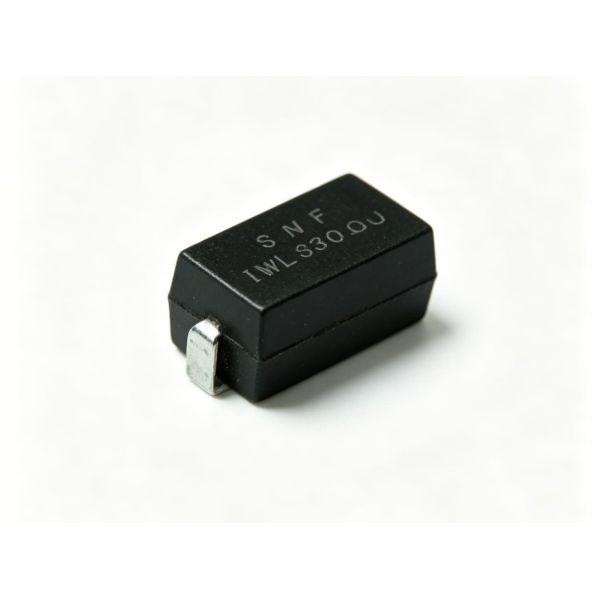

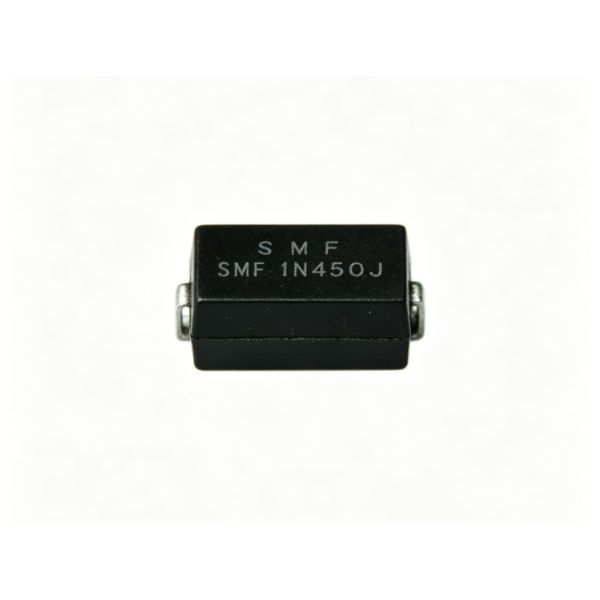

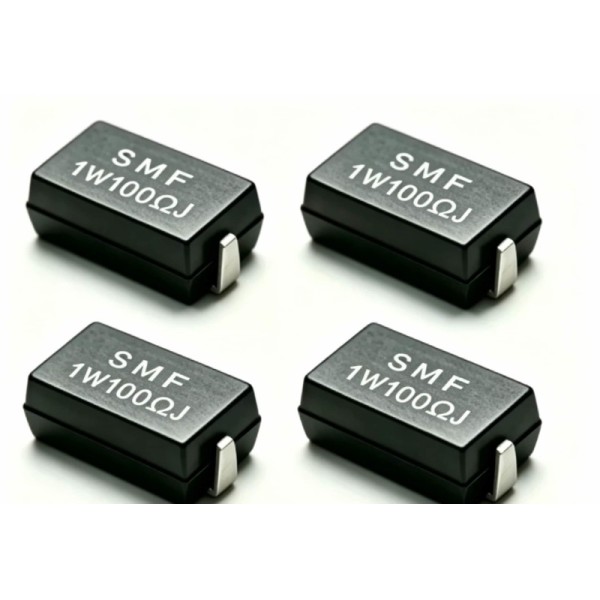

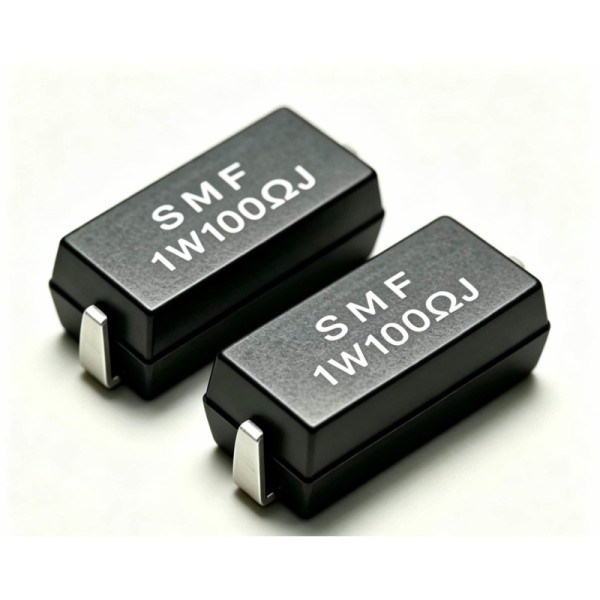

10~2MΩ 1WL Automotive Resistors 5% precision 100ppm/°C Metal Film Chip Resistors
10~2MΩ 1WL Automotive Resistors 5% precision 100ppm/°C Metal Film Chip Resistors
10~2MΩ 1WL Automotive Resistors 5% precision 100ppm/°C Metal Film Chip Resistors
10~2MΩ 1WL Automotive Resistors 5% precision 100ppm/°C Metal Film Chip Resistors
Specifications
Brand Name :
TYOHM
Model Number :
SMF
Place of Origin :
China
MOQ :
1K
Price :
Please contact us for details
Payment Terms :
T/T
Delivery Time :
7-10 work days
Packaging Details :
T/B
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Short Time Overload :
5 times of rated wattage for 5 seconds ( ±2% )
Dielectric Withstanding Voltage :
AC 500V for 1 minutes ( No evidence of mechanical damage or insulation breakdown )
Insulation Resistance :
10,000MΩ ( DC 500V megger )
Solder-ability :
235±5°C for 2 seconds ( Minimum 95% coverage )
Resistance to Soldering Heat :
270±5°C for 10±1 seconds ( No evidence of mechanical damage )
Moisture-proof Load Life :
Rated power load 90 minutes ON 30 minutes OFF 40°C 95% RH 500 hours ( ΔR/R≤±2% )
Description
Automotive High Reliability Power Metal Film Chip Resistors
  1. Flameproof UL94V0 molded package, resistant to heat, humidity & insulation.
  2. Special design for automatic surface mounting.
  3. Excellent mechanical strength & electrical stability.
  4. Reducing assembly costs.
  5. AEC-Q200 qualified
Product Overview

Power-type metal film chip resistors are high-performance resistors specifically designed for high-power-density circuits and surface-mount (SMT) applications.

These products exhibit excellent heat resistance, moisture resistance, and insulation properties, enabling stable operation in high-temperature and complex environments.

Utilizing a metal film structure, they maintain stable resistance characteristics even under high-power loads.

Their optimized structure is suitable for automated production lines, effectively reducing assembly costs and improving efficiency, meeting the demands of miniaturization and high reliability in electronic products.

Product Technical Specifications
Item Parameter Description
Product Name Power Type Metal Film Resistor
Power Range 1WL
Resistance Range 10Ω ～ 2MΩ
Resistance Tolerance ±5%
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ～ +200°C
Package Type SMD Surface Mount
Encapsulation Material Flame Retardant Epoxy Resin

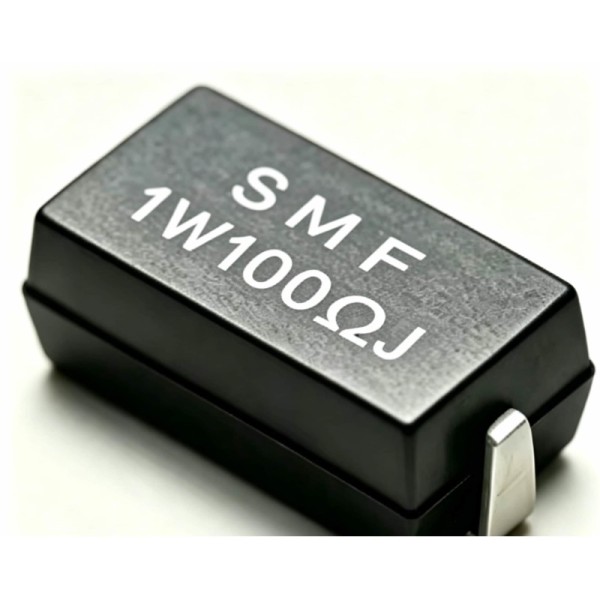

10~2MΩ 1WL Automotive Resistors 5% precision 100ppm/°C Metal Film Chip Resistors


Product Performance Advantages

High Power Handling Capacity Capability
Optimized metal film structure design enables higher power density in a small size.

Flameproof & Environmental Resistance
High temperature resistance, humidity resistance, and excellent insulation properties.

Excellent Mechanical Strength
Molded encapsulation effectively prevents mechanical stress damage, ensuring long-term reliability.

Low Assembly Cost
Supports automated surface mount technology, simplifying the production process and reducing assembly costs.

Applications

Power Metal Film Resistors are widely used in:

  • Power Conversion & Regulation Modules
  • Automotive Control Systems
  • Industrial Automation Equipment
  • Communication & Networking Devices
  • Home Appliances & Smart Devices
