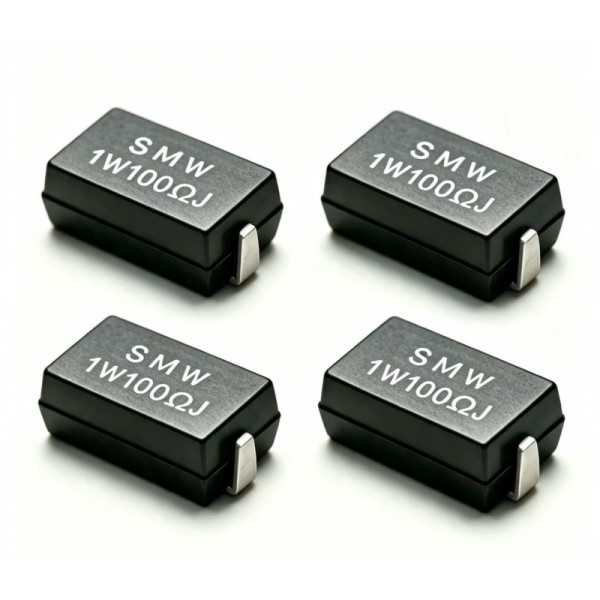

AEC-Q200 5% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
AEC-Q200 5% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
AEC-Q200 5% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
AEC-Q200 5% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
Specifications
Model Number :
SMW
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Power Rating Load :
Rated voltage for 30 minutes ( Surface temp. 275°C Max )
Brand Name :
TYOHM
Payment Terms :
T/T
Short-Term Overload :
5 times of rated wattage for 5 seconds ( ±2% )
Temp. Cycle :
-55°C( 30 min.)→ Room Temp.( 3 min.)→+200°C( 30 min.) →Room Temp.( 3 min.) / ( 5 cycles) ( ΔR/R≤±1% )
Price :
Please contact us for details
Dielectric Withstanding Voltage :
AC 500V for 1 minutes ( No evidence of mechanical damage or insulation breakdown )
Place of Origin :
China
Packaging Details :
T/B
MOQ :
1K
Delivery Time :
7-10 work days
Load Life :
Rated power load 90 minutes ON 30 minutes OFF 70°C 1000 hours ( ΔR/R≤±2% )
Insulation Resistance :
10,000MΩ ( DC 500V megger )
Certification :
AEC-Q200
Description
Features
  • Flameproof UL94V0 molded package, resistant to heat, humidity & insulation.
  • Special design for automatic surface mounting.
  • Excellent mechanical strength & electrical stability.
  • Reducing assembly costs.
  • AEC-Q200 qualified.
Product Overview

The SMW 1WL Power Wire Wound Chip Resistor is designed for automotive electronics, industrial control systems and power conversion equipment that require dependable performance and SMT compatibility. Manufactured with a UL94V0 flameproof molded package and qualified to AEC-Q200, this resistor provides reliable operation under demanding working environments while supporting efficient automated assembly.

Featuring a ±5% resistance tolerance, the resistor is suitable for applications where stable power handling, mechanical durability and long-term electrical reliability are important. Its compact surface-mount design also helps manufacturers improve production efficiency and reduce assembly costs.

Specifications
Item Specification
Product Type Power Wire Wound Chip Resistor
Rated Power 1WL
Resistance Tolerance ±5% (J)
Resistance Range 0.1Ω–200Ω
Temperature Coefficient ±200ppm/℃
Operating Temperature -55℃ to +150℃
Maximum Surface Temperature 200℃ Max.
Dielectric Withstanding Voltage AC 500V / 1 Minute
Insulation Resistance 10,000MΩ (DC500V)
Package UL94V0 Flameproof Molded Package
Qualification AEC-Q200 Qualified

AEC-Q200 5% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics

Applications
Automotive Electronics

Suitable for automotive ECUs, body control modules (BCM), battery management systems (BMS), lighting controllers and other electronic assemblies requiring AEC-Q200 qualified components.

Industrial Automation

Widely used in PLC control boards, motor drive modules, automation controllers and industrial electronic equipment where stable resistance performance and SMT assembly are required.

Power Supply & Power Conversion

Applicable to switching power supplies, DC/DC converters and power management circuits that require reliable current limiting and power dissipation.

Automated SMT Manufacturing

Designed for automatic surface mounting to improve production consistency, simplify assembly processes and support high-volume manufacturing.
