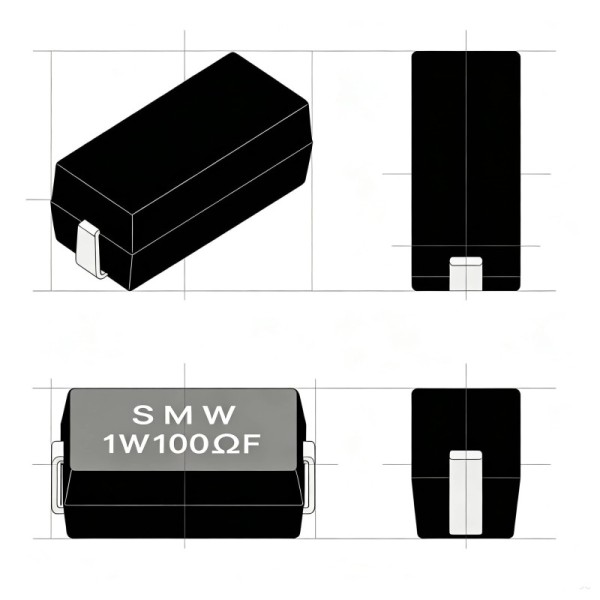

AEC-Q200 1% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
AEC-Q200 1% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
AEC-Q200 1% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
AEC-Q200 1% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics
Specifications
Short-Term Overload :
5 times of rated wattage for 5 seconds ( ±2% )
Brand Name :
TYOHM
Model Number :
SMW
Certification :
AEC-Q200
Place of Origin :
China
MOQ :
1K
Price :
Please contact us for details
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Delivery Time :
7-10 work days
Packaging Details :
T/B
Load Life :
Rated power load 90 minutes ON 30 minutes OFF 70°C 1000 hours ( ΔR/R≤±2% )
Power Rating Load :
Rated voltage for 30 minutes ( Surface temp. 275°C Max )
Temp. Cycle :
-55°C( 30 min.)→ Room Temp.( 3 min.)→+200°C( 30 min.) →Room Temp.( 3 min.) / ( 5 cycles) ( ΔR/R≤±1% )
Dielectric Withstanding Voltage :
AC 500V for 1 minutes ( No evidence of mechanical damage or insulation breakdown )
Insulation Resistance :
10,000MΩ ( DC 500V megger )
Description
Features
  • Flameproof UL94V0 molded package, resistant to heat, humidity & insulation.
  • Special design for automatic surface mounting.
  • Excellent mechanical strength & electrical stability.
  • Reducing assembly costs.
  • AEC-Q200 qualified.
Product Overview

The SMW 1WL Power Wire Wound Chip Resistor is designed for automotive electronics and industrial electronic equipment requiring high reliability and stable electrical performance. Featuring a UL94V0 flameproof molded package and AEC-Q200 qualification, it is optimized for automated SMT production while delivering excellent mechanical strength and long-term electrical stability.

With a ±1% resistance tolerance, this precision wire wound resistor is suitable for automotive control systems, industrial automation, power conversion equipment and other electronic circuits where consistent resistance values and dependable performance are essential. It also helps manufacturers improve SMT assembly efficiency and reduce overall production costs.

Specifications
Item Specification
Product Type Power Wire Wound Chip Resistor
Rated Power 1WL
Resistance Tolerance ±1% (F)
Resistance Range 0.1Ω–200Ω
Temperature Coefficient ±200ppm/℃
Operating Temperature -55℃ to +150℃
Maximum Surface Temperature 200℃ Max.
Dielectric Withstanding Voltage AC 500V for 1 Minute
Insulation Resistance 10,000MΩ (DC500V)
Package UL94V0 Flameproof Molded Package
Qualification AEC-Q200 Qualified

AEC-Q200 1% Precision 1WL Power Wire Wound Chip Resistor for Automotive Electronics

Applications
Automotive Electronics

Ideal for automotive ECUs, battery management systems (BMS), body control modules, lighting controllers and other automotive electronic circuits requiring AEC-Q200 qualified components.

Industrial Automation

Suitable for PLC systems, industrial controllers, motor drive circuits and automation equipment where high electrical stability and reliable SMT assembly are required.

Power Conversion Equipment

Applicable to switching power supplies, DC/DC converters and power management circuits that require dependable resistance performance during continuous operation.

SMT Manufacturing

Specifically designed for automated surface mount assembly, helping improve manufacturing efficiency while reducing assembly costs.
