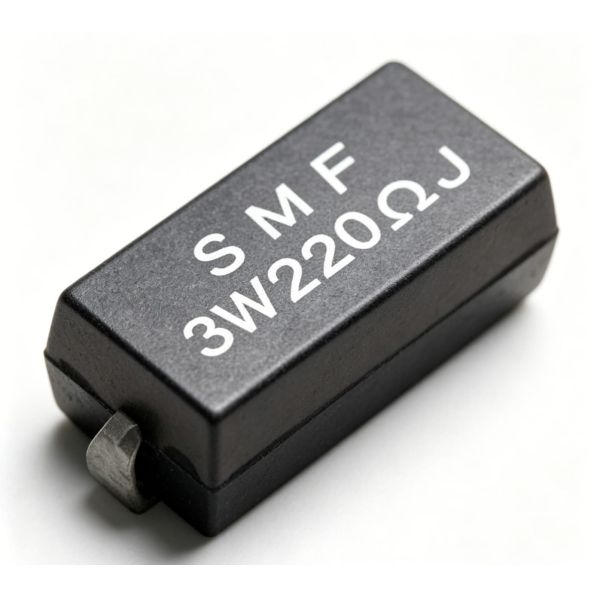

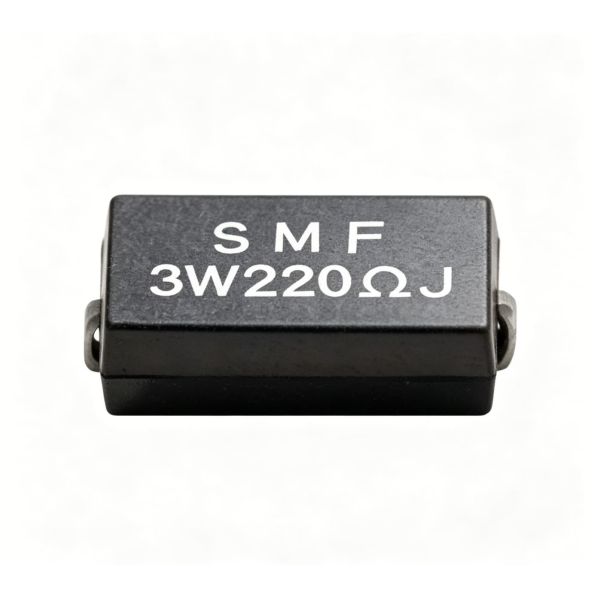

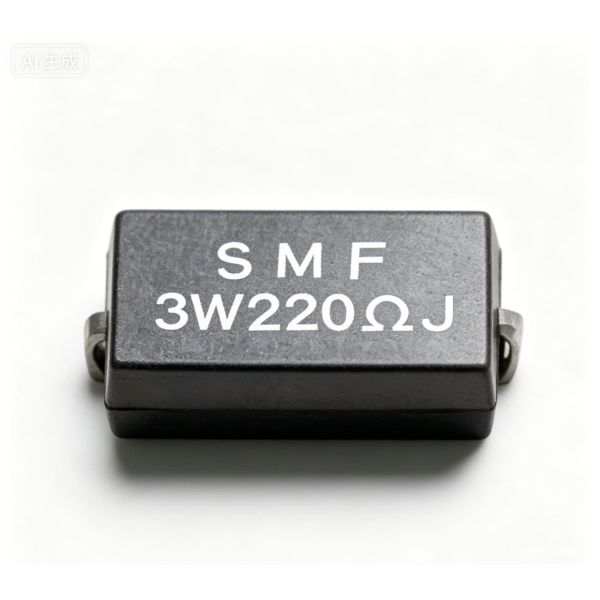

5% precision 10~2MΩ 3WL Automotive Resistors 100ppm/°C Metal Film Chip Resistors
5% precision 10~2MΩ 3WL Automotive Resistors 100ppm/°C Metal Film Chip Resistors
5% precision 10~2MΩ 3WL Automotive Resistors 100ppm/°C Metal Film Chip Resistors
5% precision 10~2MΩ 3WL Automotive Resistors 100ppm/°C Metal Film Chip Resistors
Specifications
Brand Name :
TYOHM
Model Number :
SMF
Place of Origin :
China
MOQ :
1K
Price :
Please contact us for details
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Delivery Time :
7-10 work days
Packaging Details :
T/B
Short Time Overload :
5 times of rated wattage for 5 seconds ( ±2% )
Dielectric Withstanding Voltage :
AC 500V for 1 minutes ( No evidence of mechanical damage or insulation breakdown )
Insulation Resistance :
10,000MΩ ( DC 500V megger )
Solder-ability :
235±5°C for 2 seconds ( Minimum 95% coverage )
Resistance to Soldering Heat :
270±5°C for 10±1 seconds ( No evidence of mechanical damage )
Moisture-proof Load Life :
Rated power load 90 minutes ON 30 minutes OFF 40°C 95% RH 500 hours ( ΔR/R≤±2% )
Description
Automotive High Reliability Power Metal Film Chip Resistors
  1. Flameproof UL94V0 molded package, resistant to heat, humidity & insulation.
  2. Special design for automatic surface mounting.
  3. Excellent mechanical strength & electrical stability.
  4. Reducing assembly costs.
  5. AEC-Q200 qualified.
Product Overview

Power-type metal film chip resistors are high-performance resistors designed for high-power-density circuits and surface-mount (SMT) applications.

This series features excellent heat resistance, moisture resistance, and insulation properties, enabling stable operation in high-temperature and complex environments.

Utilizing a metal film structure design, they maintain stable resistance characteristics even under high-power loads.

Their structure is optimized for automated assembly, effectively reducing production costs and improving efficiency, meeting the miniaturization and high reliability requirements of electronic devices.

5% precision 10~2MΩ 3WL Automotive Resistors 100ppm/°C Metal Film Chip Resistors

Product Technical Specifications
Item Parameter Description
Product Name Power Type Metal Film Resistor
Power Range 3WL
Resistance Range 10Ω ～ 2MΩ
Resistance Tolerance ±5%
Temperature Coefficient ±100ppm/°C
Operating Voltage 300V ～ 500V
Operating Temperature Range -55°C ～ +200°C
Package Type SMD Surface Mount
Encapsulation Material Flame Retardant Epoxy Resin

5% precision 10~2MΩ 3WL Automotive Resistors 100ppm/°C Metal Film Chip Resistors


Product Performance Advantages

High Power Handling Capacity Capability
Optimized metal film structure design enables higher power density in a small size.

Flameproof & Environmental Resistance
High temperature resistance, humidity resistance, and excellent insulation properties.

Excellent Mechanical Strength
Molded encapsulation effectively prevents mechanical stress damage, ensuring long-term reliability.

Low Assembly Cost
Supports automated surface mount technology, simplifying the production process and reducing assembly costs.

Applications

Power Metal Film Resistors are widely used in:

  • Power Conversion & Regulation Modules
  • Automotive Control Systems
  • Industrial Automation Equipment
  • Communication & Networking Devices
  • Home Appliances & Smart Devices
