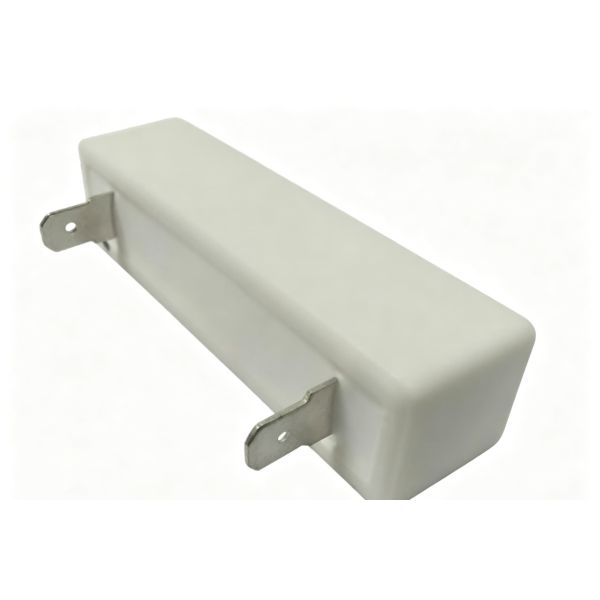

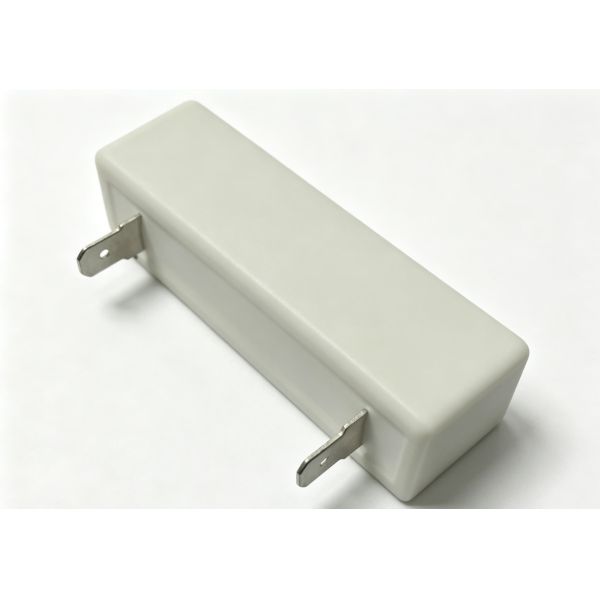

30W/40W Heat Resistance Durable Cement Resistor With Faston Terminals
30W/40W Heat Resistance Durable Cement Resistor With Faston Terminals
30W/40W Heat Resistance Durable Cement Resistor With Faston Terminals
30W/40W Heat Resistance Durable Cement Resistor With Faston Terminals
Specifications
Resistance Accuracy :
±5%
Terminal Strength :
4.5kg ( No evidence of mechanical damage )
Dielectric Withstanding Voltage :
AC 2000V for 1 minutes (No evidence of mechanical damage)
Resistance Range(Ω) :
1~3KΩ
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Nonflammability :
16 times of rated wattage for 5 minutes ( not flamed )
Brand Name :
TYOHM
Model Number :
SQH
Place of Origin :
China
MOQ :
0.5K
Price :
Please contact us for details
Payment Terms :
T/T
Delivery Time :
7-10 work days
Packaging Details :
T/B
Insulation Resistance :
1,000MΩ ( DC 1000V megger )
Description
Features
  1. Flameproof construction in a ceramic case, resistant to humidity and insulation.
  2. Quick connect terminals designed for automotives.
  3. Super heat dissipation；Small linear temperature coefficient.
  4. Instant overload capability；Low noise figures and low annual shift on resistance values.
  5. AEC-Q200 qualified.
Product Overview

The SQH(T) Series Cement Wire Wound Resistor is designed for automotive electronics and industrial power applications requiring dependable thermal performance and convenient installation. Featuring a flameproof ceramic housing and Faston quick-connect terminals, it helps simplify assembly while maintaining stable electrical characteristics during continuous operation.

Qualified to the AEC-Q200 standard, the resistor is suitable for automotive control systems, industrial automation, power supplies, motor drives, inverters, and energy dissipation circuits. As an automotive resistor manufacturer, wire wound resistor manufacturer, and power wire wound resistor supplier, we provide reliable resistor solutions for OEM and industrial customers worldwide. We also support customized projects for automotive power resistor OEM applications from our wire wound resistor factory China.

Specifications
Item Specification
Series SQH(T)
Resistor Type Cement Wire Wound Resistor with Faston Terminals
Rated Power 30W / 40W
Resistance Range 30W: 1Ω–2.5kΩ; 40W: 1Ω–3kΩ
Resistance Tolerance ±1% / ±5%
Temperature Coefficient ±300ppm/°C
Maximum Surface Temperature 275°C Max.
Short-Time Overload 10 × Rated Power for 5 Seconds, ΔR/R ≤ ±2%
Dielectric Withstanding Voltage AC1000V for 1 Minute
Insulation Resistance ≥1000MΩ at DC500V
Qualification AEC-Q200 Qualified

30W/40W Heat Resistance Durable Cement Resistor With Faston Terminals

Applications

The SQH(T) Series is suitable for a wide range of power management and control applications, including:

  • Automotive electronic control modules
  • Electric vehicle (EV) systems
  • Industrial automation equipment
  • Switching power supplies
  • Motor drives and controllers
  • Frequency inverters
  • Brake resistor circuits
  • Industrial control cabinets
  • Power electronics equipment
  • OEM electronic manufacturing
