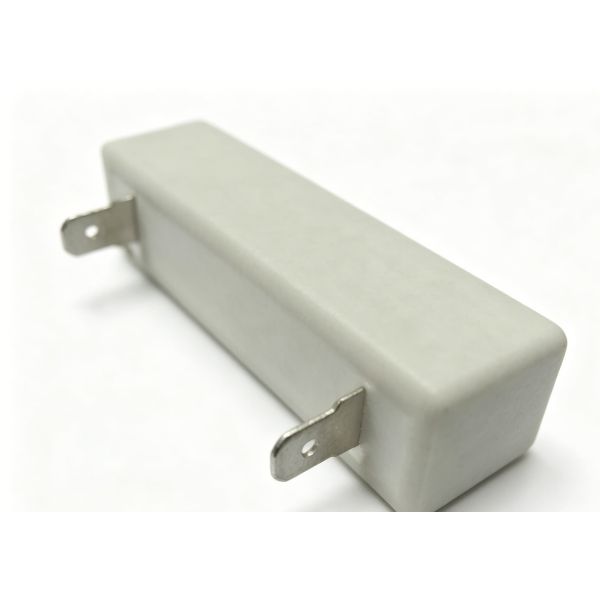

Automotive Grade 50W Faston Terminal Cement Resistor | High-Reliability Wire Wound Power Resistor
Automotive Grade 50W Faston Terminal Cement Resistor | High-Reliability Wire Wound Power Resistor
Automotive Grade 50W Faston Terminal Cement Resistor | High-Reliability Wire Wound Power Resistor
Automotive Grade 50W Faston Terminal Cement Resistor | High-Reliability Wire Wound Power Resistor
Specifications
Model Number :
SQH
Resistance Accuracy :
±5%，±1%
Price :
Please contact us for details
Packaging Details :
T/B
Terminal Strength :
4.5kg ( No evidence of mechanical damage )
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Place of Origin :
China
Dielectric Withstanding Voltage :
AC 2000V for 1 minutes (No evidence of mechanical damage)
Brand Name :
TYOHM
Resistance Range(Ω) :
1~3KΩ
Payment Terms :
T/T
Nonflammability :
16 times of rated wattage for 5 minutes ( not flamed )
Delivery Time :
7-10 work days
MOQ :
0.5K
Insulation Resistance :
1,000MΩ ( DC 1000V megger )
Description
Features
  1. Flameproof construction in a ceramic case, resistant to humidity and insulation.
  2. Quick connect terminals designed for automotives.
  3. Super heat dissipation; Small linear temperature coefficient.
  4. Instant overload capability; Low noise figures and low annual shift on resistance values.
  5. AEC-Q200 qualified.
Product Overview

The SQH(T) 50W Automotive Grade Cement Resistor is designed with a flameproof ceramic housing and Faston quick-connect terminals for reliable installation in demanding electrical systems. As a wire wound resistor, it offers excellent heat dissipation, a low linear temperature coefficient, high insulation resistance and outstanding short-term overload capability. Qualified to AEC-Q200, it is well suited for automotive electronics, industrial automation, power supplies and other applications requiring long-term operational stability.

Natural keywords: wire wound resistor manufacturer, power wire wound resistor supplier, automotive resistor manufacturer, automotive grade resistor, automotive power resistor OEM.

Specifications
ItemSpecification
SeriesSQH(T)
Rated Power50W
Resistance Range1Ω–3kΩ
Resistance Tolerance±1%, ±5%
Temperature Coefficient±300ppm/°C
Maximum Surface Temperature275°C Max.
Short-Time Overload10× Rated Power for 5 Seconds
Dielectric Withstanding VoltageAC1000V for 1 Minute
Insulation Resistance≥1000MΩ (DC500V)
Load Life1000 Hours at Rated Load (70°C)
Moisture-Proof Load Life1000 Hours at 40°C, 95% RH
QualificationAEC-Q200 Qualified

Automotive Grade 50W Faston Terminal Cement Resistor | High-Reliability Wire Wound Power Resistor

Applications
  • Automotive electronic control systems
  • Electric vehicle (EV) electronics
  • Industrial automation equipment
  • Switching power supplies
  • Motor drives and inverter systems
  • Servo control equipment
  • Electrical control cabinets
  • OEM electrical and electronic equipment
