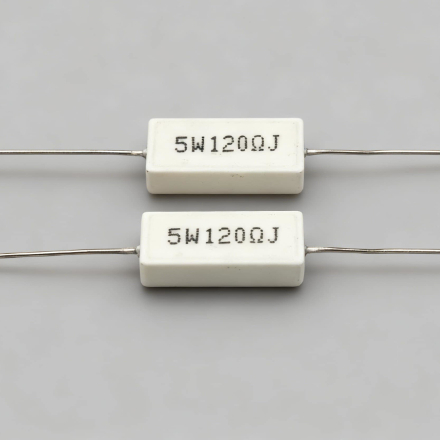

1500V Cement Resistors High Temperature Non Inductive Wire Wound Resistor
1500V Cement Resistors High Temperature Non Inductive Wire Wound Resistor
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
5K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Temp. Coeff. :
±300pmm/°C
Operating Temperature :
-55℃ ～ +275℃
Withstand Voltage :
AC 1500V / 1 minute
Short-Term Overload :
10 times rated power for 5 seconds
Load Life in Humidity :
Overload rated voltage or Max, working voltage for 1000 hours at the 40±2 °C and 90~95% relative humidity
Nonflammability :
16 times rated power for 5 minutes
Description
Heated Cement Resistor
Product Introduction

Heating-type cement resistors are high-performance devices that integrate resistance and heating functions.

The products are made with highly stable resistance wire wound and encapsulated in a high-temperature resistant insulating cement shell, possessing excellent thermal conductivity and mechanical strength.

Their robust structure and uniform heat dissipation allow for long-term stable operation under high power loads and harsh environments.

The JRX series can be used for current limiting, voltage dividing, and as heating elements, and is widely applicable to industrial and household equipment.

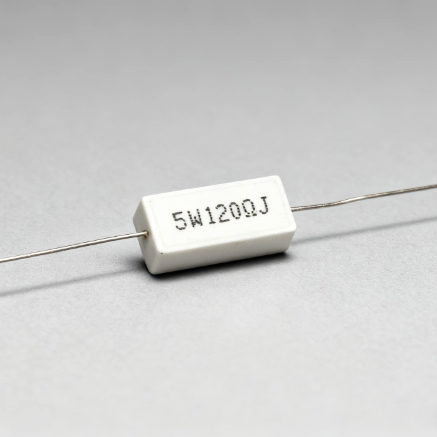

1500V Cement Resistors High Temperature Non Inductive Wire Wound Resistor

Product Parameters
Item Specification
Series Heated Cement Resistor
Power Rating Typical power range 5W～50W depending on model
Tolerance ±5%, ±10%
Insulation Resistance ≥100MΩ (DC 500V)
Temperature Coefficient Low temperature drift characteristic, better than ±400ppm/°C
Material High-insulation inorganic ceramic housing
Internal Structure/Construction Iron cap end seal, high-temperature potting compound, fiberglass core support
Performance Characteristics
Excellent Heat Resistance and Stability

The series utilizes a high-temperature sintering process and an inorganic insulation filling structure, resulting in excellent heat resistance and shock resistance. The resistor element can operate continuously in high-temperature environments without failure, ensuring long-term stable output.

High Insulation and Safety

The outer shell uses ceramic insulation material with an insulation resistance exceeding 10MΩ, effectively preventing leakage and short circuits. The internal design employs a high-temperature resistant iron cap and fiberglass skeleton, providing good mechanical strength and shock resistance.

Uniform Heating and Reliable Heat Dissipation

The resistor wire structure is rationally designed, resulting in uniform heat distribution and stable temperature rise, suitable for both continuous heating and intermittent operation.

1500V Cement Resistors High Temperature Non Inductive Wire Wound Resistor

Typical Applications

The series is widely used in electric heating devices, power supply equipment, household appliances, lighting systems, motor brakes, thermostats, and industrial instruments, among other fields. Its high temperature resistance, high stability and insulation properties make it an ideal choice for applications requiring current limiting, energy dissipation and thermal control.
