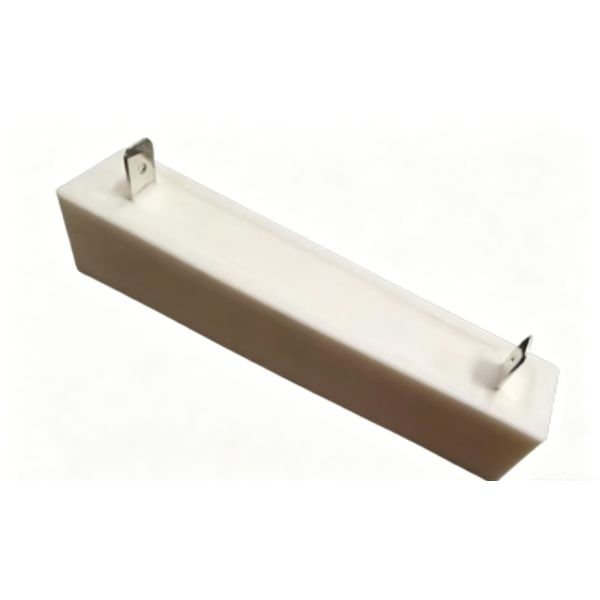

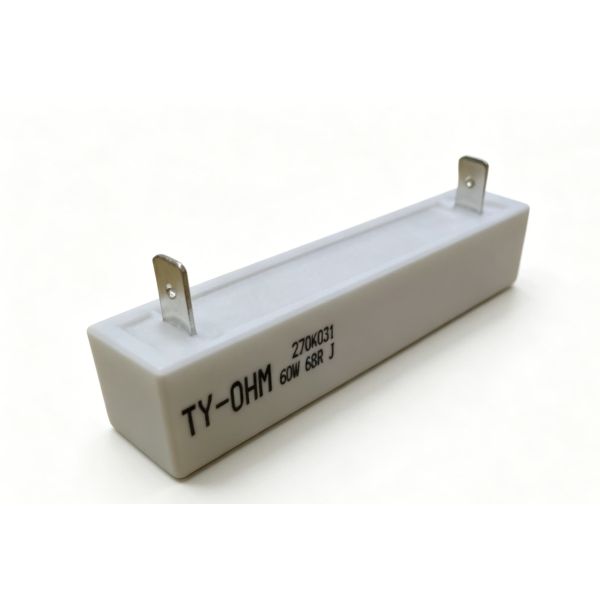

60W High Power Wire Wound Cement Resistor With Flameproof Ceramic Housing And Quick Installation Design
60W High Power Wire Wound Cement Resistor With Flameproof Ceramic Housing And Quick Installation Design
60W High Power Wire Wound Cement Resistor With Flameproof Ceramic Housing And Quick Installation Design
60W High Power Wire Wound Cement Resistor With Flameproof Ceramic Housing And Quick Installation Design
Specifications
Resistance Accuracy :
±5%，±1%
Model Number :
SQH
Terminal Strength :
4.5kg ( No evidence of mechanical damage )
Price :
Please contact us for details
Packaging Details :
T/B
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Dielectric Withstanding Voltage :
AC 2000V for 1 minutes (No evidence of mechanical damage)
Place of Origin :
China
Resistance Range(Ω) :
1~3KΩ
Brand Name :
TYOHM
Nonflammability :
16 times of rated wattage for 5 minutes ( not flamed )
Payment Terms :
T/T
Delivery Time :
7-10 work days
Insulation Resistance :
1,000MΩ ( DC 1000V megger )
MOQ :
0.5K
Description
Features
  • Flameproof construction in a ceramic case, resistant to humidity and insulation.
  • Quick connect terminals designed for automotives.
  • Super heat dissipation; Small linear temperature coefficient.
  • Instant overload capability; Low noise figures and low annual shift on resistance values.
Product Overview

The SQH(T) 60W Cement Resistor is a high-power wire wound resistor designed with a flameproof ceramic housing and Faston quick-connect terminals for efficient installation. It is suitable for automotive electronics, industrial control equipment, power supplies, and various power electronic systems requiring dependable power dissipation and current limiting.

Designed for long-term operational stability, this resistor features excellent heat dissipation, high insulation resistance, humidity resistance, and strong short-time overload capability. It is an ideal choice for companies seeking a wire wound resistor manufacturer, power wire wound resistor supplier, or custom wire wound resistor OEM for industrial and automotive applications.

Specifications
ItemSpecification
SeriesSQH(T)
TypeCement Wire Wound Resistor with Faston Terminals
Rated Power60W
Resistance Range1Ω–3kΩ
Resistance Tolerance±1%, ±5%
Temperature Coefficient±300ppm/°C
Operating Temperature-55°C to +155°C
Maximum Surface Temperature275°C
Dielectric StrengthAC1000V for 1 Minute
Insulation Resistance≥1000MΩ (DC500V)
Short-Time Overload10 × Rated Power for 5 Seconds
Load Life1000 Hours at 70°C
Moisture Load Life1000 Hours at 40°C, 95% RH

60W High Power Wire Wound Cement Resistor With Flameproof Ceramic Housing And Quick Installation Design

Applications
  • Automotive electronic control systems
  • Power supplies and switching power supplies
  • Industrial automation equipment
  • Servo drives and motor control systems
  • Inverters and frequency conversion equipment
  • Power electronic devices
  • New energy equipment
  • High-power current limiting and energy dissipation circuits

Asia Akita is a professional wire wound resistor factory China serving global OEM and industrial customers. We provide automotive power resistor OEM and customized resistor solutions with consistent quality, stable production capacity, and reliable technical support for worldwide B2B projects.
