High Precision Aluminum End Mills 3 Flutes For High Performance Cutting
High Precision Aluminum End Mills 3 Flutes For High Performance Cutting
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
4—200 USD
Packaging Details :
standard packaging
Delivery Time :
7-15day
Supply Ability :
1000000 Piece/Pieces per Month
Helix Angle :
45 Degrees
Coating :
Uncoated
Advantages :
High Efficiency, Long Time
Flute :
3 Flutes
Precision :
High Precision
Application :
Aluminum Milling
Feature :
High Performance Cutting
Processing Material :
Alumium
Description

Product Description:

Polishing And Passivation Process

Unique polishing passivation process is utilized to greatly reduce the coefficient of friction. This process is especially suitable for aluminum with gold, copper alloy, tempered plastic, and other non-metallic materials.

Sharp Edge Design

The design of sharp blades helps in reducing cutting resistance, thereby significantly decreasing the generation of burrs and vibration marks. This is further improved by an optimized chip evacuation function achieved through deep groove design.

High Performance Aluminum Cutter

By employing fine grinding techniques, the issue of chip sticking is effectively resolved. This high-performance aluminum cutter can meet higher requirements on appearance effects and enhance metal removal efficiency.

Features:

Key Features of Aluminum End Mills:

Material:

Typically made from carbide (solid carbide or carbide-tipped) for rigidity and heat resistance.

Flute Count:

Usually 2 or 3 flutes.

Fewer flutes prevent chip clogging and improve chip evacuation (important for soft materials like aluminum).

Helix Angle:

High helix angles (typically 35°–45°) enhance chip removal and reduce heat buildup.

Surface Coating (or uncoated):

Often uncoated or coated with ZrN, TiB2, or DLC for better lubricity and reduced aluminum adhesion (galling).

TiN is less common due to aluminum’s tendency to stick to it.

Geometry:

Polished flutes and sharp cutting edges help reduce built-up edge (BUE) and increase tool life.

Corner radius or ball nose may be used for specific applications.

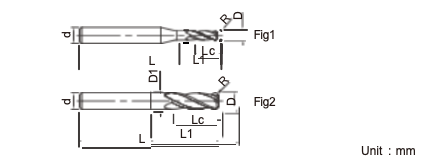

Technical Parameters:

High Precision Aluminum End Mills 3 Flutes For High Performance Cutting

Corner R Shank Dia
Type No. Diameter Corner R Flute length Effective length Overall length Shank Dia Flutes
ARS0305 D3 R0.5 4.5 9 L50 6 3
ARS0405 D4 R0.5 6 12 L50 6 3
ARS0605 D6 R0.5 9 18 L50 6 3
ARS0610 D6 R1 9 18 L50 6 3
ARS0805 D8 R0.5 12 24 L60 8 3
ARS0810 D8 R1 12 24 L60 8 3
ARS1005 D10 R0.5 15 30 L75 10 3
ARS1010 D10 R1 15 30 L75 10 3
ARS1205 D12 R0.5 18 36 L75 12 3
ARS1210 D12 R1 18 36 L75 12 3
ARS1605 D16 R0.5 24 40 L100 16 3
ARS1610 D16 R1 24 40 L100 16 3
ARS1630 D16 R3 24 40 L100 16 3
ARS2005 D20 R0.5 30 50 L100 20 3
ARS2010 D20 R1 30 50 L100 20 3
ARS2030 D20 R3 30 50 L100 20 3

Applications:

Applications:

  • Aerospace components
  • Automotive parts
  • Prototyping aluminum housings
  • General aluminum machining on CNC mills
