Sharp Edge Aluminum End Mills 45° Helix Angle High Performance Aluminum Cutter
Sharp Edge Aluminum End Mills 45° Helix Angle High Performance Aluminum Cutter
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
4—200 USD
Packaging Details :
standard packaging
Delivery Time :
7-15day
Supply Ability :
1000000 Piece/Pieces per Month
Flute :
3 Flutes
Advantages :
High Efficiency, Long Time
Flute Shape :
Square
Precision :
High Precision
Helix Angle :
45 Degrees
Item :
Metal Cutting Tools
Coating :
Uncoated
Application :
Aluminum Milling
Description

Product Description:

Polishing And Passivation Process

Unique polishing passivation process, greatly reduces the coefficient of friction. Especially suitable for aluminum with gold, copper alloy, tempered plastic, and other non-metallic materials;

Sharp Edge Design

The sharp blade design reduces cutting resistance and greatly reduces the generation of burrs and vibration marks. Optimized chip evacuation function through deep groove design;

High Performance Aluminum Cutter

Through fine grinding, the problem of chip sticking is perfectly solved. Can achieve higher requirements on appearance effects and higher metal removal efficiency;

Features:

Key Features of Aluminum End Mills:

Material:

  • Typically made from carbide (solid carbide or carbide-tipped) for rigidity and heat resistance.

Flute Count:

  • Usually 2 or 3 flutes.
  • Fewer flutes prevent chip clogging and improve chip evacuation (important for soft materials like aluminum).

Helix Angle:

  • High helix angles (typically 35°–45°) enhance chip removal and reduce heat buildup.

Surface Coating (or uncoated):

  • Often uncoated or coated with ZrN, TiB2, or DLC for better lubricity and reduced aluminum adhesion (galling).
  • TiN is less common due to aluminum’s tendency to stick to it.

Geometry:

  • Polished flutes and sharp cutting edges help reduce built-up edge (BUE) and increase tool life.
  • Corner radius or ball nose may be used for specific applications.

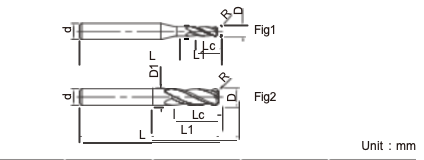

Technical Parameters:

Sharp Edge Aluminum End Mills 45° Helix Angle High Performance Aluminum Cutter

Type No. Diameter Corner R Flute length Effective length Overall length Shank Dia Flutes
ARS0305 D3 R0.5 4.5 9 L50 6 3
ARS0405 D4 R0.5 6 12 L50 6 3
ARS0605 D6 R0.5 9 18 L50 6 3
ARS0610 D6 R1 9 18 L50 6 3
ARS0805 D8 R0.5 12 24 L60 8 3
ARS0810 D8 R1 12 24 L60 8 3
ARS1005 D10 R0.5 15 30 L75 10 3
ARS1010 D10 R1 15 30 L75 10 3
ARS1205 D12 R0.5 18 36 L75 12 3
ARS1210 D12 R1 18 36 L75 12 3
ARS1605 D16 R0.5 24 40 L100 16 3
ARS1610 D16 R1 24 40 L100 16 3
ARS1630 D16 R3 24 40 L100 16 3
ARS2005 D20 R0.5 30 50 L100 20 3
ARS2010 D20 R1 30 50 L100 20 3
ARS2030 D20 R3 30 50 L100 20 3

Applications:

Applications:

Aerospace components

Automotive parts

Prototyping aluminum housings

General aluminum machining on CNC mills
