Long Shank Aluminum Finishing End Mill Versatile 45 Degrees Helix Angle
Long Shank Aluminum Finishing End Mill Versatile 45 Degrees Helix Angle
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
4—200 USD
Packaging Details :
standard packaging
Delivery Time :
7-15day
Supply Ability :
1000000 Piece/Pieces per Month
Flute :
2-6 Flutes
Flute Shape :
Square
Coating :
Uncoated
Application :
Aluminum Milling
Advantages :
High Efficiency, Long Time
Processing Material :
Alumium
Feature :
High Performance Cutting
Helix Angle :
45 Degrees
Description

Product Description:

Polishing And Passivation Process

Unique polishing passivation process, greatly reducing the coefficient of friction. Especially suitable for aluminum with gold, copper alloy, tempered plastic, and other non-metallic materials;

Sharp Edge Design

The sharp blade design reduces cutting resistance and greatly reduces the generation of burrs and vibration marks. Optimized chip evacuation function through deep groove design;

High Performance Aluminum Cutter

Through fine grinding, the problem of chip sticking is perfectly solved. Can achieve higher requirements on appearance effects and higher metal removal efficiency;

Features:

Key Features of Aluminum End Mills:

Material:

Typically made from carbide (solid carbide or carbide-tipped) for rigidity and heat resistance.

Flute Count:

Usually 2 or 3 flutes. Fewer flutes prevent chip clogging and improve chip evacuation (important for soft materials like aluminum).

Helix Angle:

High helix angles (typically 35°–45°) enhance chip removal and reduce heat buildup.

Surface Coating (or uncoated):

Often uncoated or coated with ZrN, TiB2, or DLC for better lubricity and reduced aluminum adhesion (galling). TiN is less common due to aluminum’s tendency to stick to it.

Geometry:

Polished flutes and sharp cutting edges help reduce built-up edge (BUE) and increase tool life. Corner radius or ball nose may be used for specific applications.

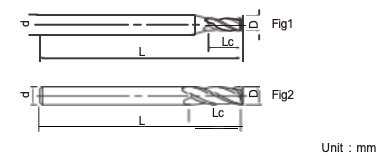

Technical Parameters:

Long Shank Aluminum Finishing End Mill Versatile 45 Degrees Helix Angle

Type No. Diameter Flute length Overall length Shank Dia Flutes
AEH0303A D3 12 L75 4 3
AEH0303 D3 12 L75 6 3
AEH0403A D4 16 L75 4 3
AEH0403 D4 16 L75 6 3
AEH0503Z D5 20 L75 5 3
AEH0503 D5 20 L75 6 3
AEH0603 D6 25 L75 6 3
AEH0803 D8 32 L75 8 3
AEI0603 D6 25 L100 6 3
AEI0803 D8 32 L100 8 3
AEI1003 D10 45 L100 10 3
AEI1203 D12 45 L100 12 3
AEJ0603 D6 30 L150 6 3
AEJ0803 D8 40 L150 8 3
AEJ1003 D10 45 L150 10 3
AEJ1203 D12 50 L150 12 3
AEJ1603 D16 65 L150 16 3
AEJ2003 D20 75 L150 20 3

Applications:

Applications:

  • Aerospace components
  • Automotive parts
  • Prototyping aluminum housings
  • General aluminum machining on CNC mills
