Uncoated Carbide End Mill For Aluminum High Durability 3 Flute Aluminum End Mill
Uncoated Carbide End Mill For Aluminum High Durability 3 Flute Aluminum End Mill
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
4—200 USD
Packaging Details :
standard packaging
Delivery Time :
7-15day
Supply Ability :
1000000 Piece/Pieces per Month
Helix Angle :
45 Degrees
Feature :
High Performance Cutting
Advantages :
High Efficiency, Long Time
Flute :
3 Flutes
Coating :
Uncoated
Item :
Metal Cutting Tools
Precision :
High Precision
Processing Material :
Alumium
Description

Product Description:

Polishing And Passivation Process

Unique polishing passivation process, greatly reducing the coefficient of friction. Especially suitable for aluminum with gold, copper alloy, tempered plastic and other non-metallic materials;

Sharp Edge Design

The sharp blade design reduces cutting resistance and greatly reduces the generation of burrs and vibration marks. Optimized chip evacuation function through deep groove design;

High Performance Aluminum Cutter

Through fine grinding, the problem of chip sticking is perfectly solved. Can achieve higher requirements on appearance effects and higher metal removal efficiency;

Features:

Key Features of Aluminum End Mills:

Material:
Typically made from carbide (solid carbide or carbide-tipped) for rigidity and heat resistance.

Flute Count:
Usually 2 or 3 flutes. Fewer flutes prevent chip clogging and improve chip evacuation (important for soft materials like aluminum).

Helix Angle:
High helix angles (typically 35°–45°) enhance chip removal and reduce heat buildup.

Surface Coating (or uncoated):
Often uncoated or coated with ZrN, TiB2, or DLC for better lubricity and reduced aluminum adhesion (galling). TiN is less common due to aluminum’s tendency to stick to it.

Geometry:
Polished flutes and sharp cutting edges help reduce built-up edge (BUE) and increase tool life. Corner radius or ball nose may be used for specific applications.

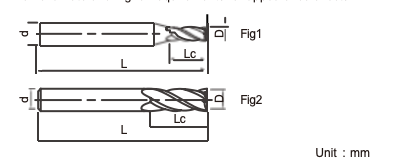

Technical Parameters:

Uncoated Carbide End Mill For Aluminum High Durability 3 Flute Aluminum End Mill

Type No. Diameter Flute length Overall length Shank Dia Flutes
AE0103A D1 3 L50 4 3
AE0153A D1.5 4 L50 4 3
AE0203A D2 6 L50 4 3
AE0303A D3 8 L50 4 3
AE0303 D3 8 L50 6 3
AE0403A D4 12 L50 4 3
AE0403 D4 12 L50 6 3
AE0503Z D5 15 L50 5 3
AE0503 D5 15 L50 6 3
AE0603 D6 18 L50 6 3
AE0803 D8 20 L60 8 3
AE1003 D10 30 L75 10 3
AE1203 D12 30 L75 12 3
AE1603 D16 45 L100 16 3
AE2003 D20 45 L100 20 3

Applications:

Applications:

  • Aerospace components
  • Automotive parts
  • Prototyping aluminum housings
  • General aluminum machining on CNC mills
