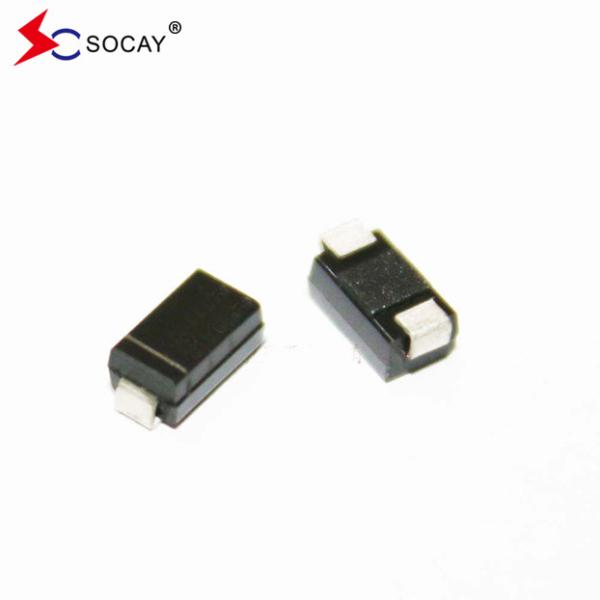

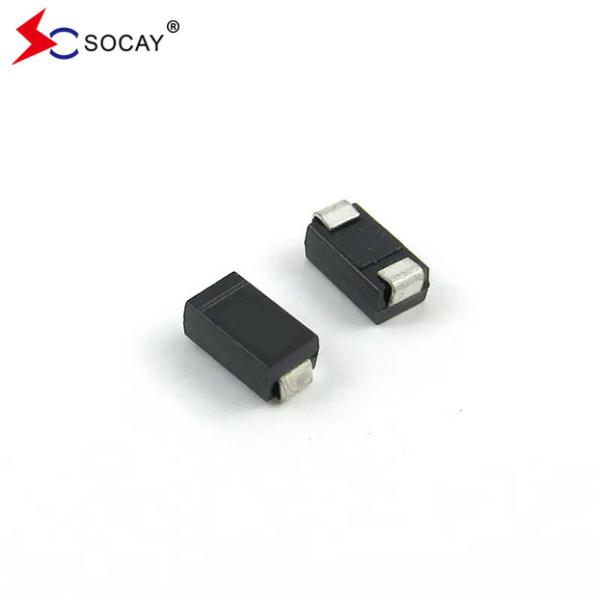

SMA Package Silicon Zener Diode 1SMA4728A 1W 3.3V Admissible Zener Current 285mA

Silicon Zener Diode DATASHEET: 1SMA4728A~1SMA4764A(SMA)_v2311.1.pdf

Silicon Zener Diode Features:

  • Total power dissipation: Max. 1.0 W.
  • Wide zener reverse voltage range 3.3V to 51V.

  • Small plastic package suitable for surface mounted design.

Silicon Zener Diode Mechanical Date:

  • Case: SMA
  • Terminals: Solderable per MIL-STD-750, Method 2026
  • Approx. Weight: 0.055g / 0.002oz

Silicon Zener Diode Symbol:

SMA Package Silicon Zener Diode 1SMA4728A 1W 3.3V Admissible Zener Current 285mA

Silicon Zener Diode Absolute Maximum Ratings (TA=25℃):

Zener Diode Parameter Symbol Value Units
Power Dissipation at Tc=75°C PD 1 W
Forward Voltage at IF = 200 mA VF 1.2 V
Junction Temperature Range TJ -55 to +150 ℃
Storage Temperature Range TS -55 to +150 ℃

Silicon Zener Diode Electrical Characteristics (TA=25℃):

Zener DiodePart Number Zener Diode Zener Voltage Range (1) Zener Diode IZT Dynamic Impedance Reverse Current

Admissible Zener

Current
VZ @ IZT ZZT @ IZT IR @ VR
Min.(V) Nom.(V) Max.(V) (mA) Max.(Ω) Max.(μA) (V) IZM (mA)
1SMA4728A 3.10 3.3 3.50 75 10 100 1 285
1SMA4730A 3.70 3.9 4.10 64 9 50 1 243
1SMA4731A 4.06 4.3 4.56 58 9 25 1 219
1SMA4732A 4.50 4.7 4.93 53 8 10 1 203
1SMA4733A 4.84 5.1 5.36 49 7 10 1 186
1SMA4734A 5.32 5.6 5.92 45 5 10 2 170
1SMA4735A 5.86 6.2 6.51 41 2 10 3 154
1SMA4736A 6.46 6.8 7.18 37 3.5 10 4 140
1SMA4737A 7.12 7.5 7.88 34 4 10 5 127
1SMA4738A 7.79 8.2 8.67 31 4.5 10 6 116
1SMA4739A 8.60 9.1 9.59 28 5 10 7 104
1SMA4740A 9.50 10 10.5 25 7 10 7 95
1SMA4741A 10.4 11 11.6 23 8 5 8 86
1SMA4742A 11.4 12 12.6 21 9 5 9 79
1SMA4743A 12.4 13 14.1 19 10 5 10 71
1SMA4744A 13.8 15 15.8 17 14 5 11 63
1SMA4745A 15.2 16 17.1 16 16 5 12 58
1SMA4746A 16.8 18 19.2 14 20 5 13 52
1SMA4747A 19.0 20 21.2 13 22 5 15 47
1SMA4748A 20.8 22 23.3 12 23 5 17 43
1SMA4749A 22.8 24 26.0 11 25 5 18 38
1SMA4750A 25.3 27 28.9 9.5 35 5 21 35
1SMA4751A 28.2 30 32.0 8.5 40 5 23 31
1SMA4752A 31.3 33 34.9 7.5 45 5 25 28
1SMA4753A 34.2 36 37.9 7 50 5 27 26
1SMA4754A 37.2 39 41.5 6.5 60 5 30 24
1SMA4755A 40.9 43 45.6 6 70 1 32 22
1SMA4756A 44.9 47 49.8 5.5 80 1 35 20
1SMA4757A 48.6 51 54.0 5 95 1 38 18

Silicon Zener Diode Rating and Characteristic Curves:

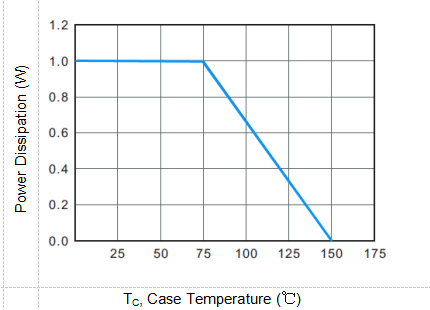

Fig. 1. Maximum Continuous Power Derating

SMA Package Silicon Zener Diode 1SMA4728A 1W 3.3V Admissible Zener Current 285mA

DO-214AC/SMA Package Outline Silicon Zener Diode ​Dimensions:

SMA Package Silicon Zener Diode 1SMA4728A 1W 3.3V Admissible Zener Current 285mA

DO-214AC/SMA Package Silicon Zener Diode ​Ordering Information:

Silicon Zener Diode Part Number Component Package Silicon Zener Diode Quantity
1SMA4728A~1SMA4764A DO-214AC/SMA 5000 PCS

SMA Package Silicon Zener Diode 1SMA4728A 1W 3.3V Admissible Zener Current 285mA
