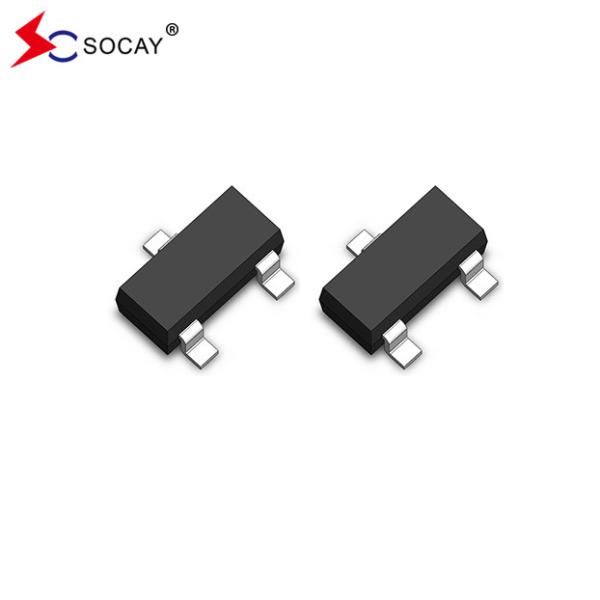

300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V
Specifications
Brand Name :
SOCAY
Model Number :
BZX84C9V1
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Name :
Zener Diode
Package :
SOT-23
P(AV) :
300mW
VZ (Nom.) :
9.1V
IFSM :
2.0A
ZZT :
15Ω
IZT :
5mA
IR :
0.5μA
Description

300mW SMD Zener Diode BZX84C9V1 SOT-23 Zener Voltage Range 8.5~9.6V

SMD Zener Diode DATASHEET: BZX84C2V4~BZX84C75(SOT-23)_v2112.1.pdf


SMD Zener Diode Characteristics:

  • Planar Die construction
  • 300mW Power Dissipation
  • Zener Voltages from 2.4V to 75V

  • RoHS compliant / Green EMC



SMD Zener Diode Absolute Maximum Ratings (TA=25℃):

ParameterSymbolValueUnits
Maximum Forward Voltage (Note 2) @ IF=10mAVF0.9V
Power Dissipation (Note 1)P(AV)300mW
Operating and Storage TemperatureTJ,TSTG-55 to +150℃
Peak Forward Surge Surge CurrentIFSM2.0A
Thermal Resistance Junction to AmbientRJ357℃/W

Note1: Valid provided that device terminals are kept at ambient temperature.
Note 2: Tested with pulses, period=5ms,pulse width =300μs.





SMD Zener Diode Electrical Characteristics (TA=25℃):

Part NumberZener Voltage Range (Note 2)Maximum Zener Impedance (Note 3)Maximum Reverse Leakage Current
VZ @ IZTZZT @ IZTZZK @ IZKIR @ VR
Nom.(V)Min.(V)Max.(V)(Ω)(mA)(Ω)(mA)(μA)(V)
BZX84C2V42.42.22.610056001501
BZX84C2V72.72.52.910056001201
BZX84C3V03.02.83.29556001101
BZX84C3V33.33.13.5955600151
BZX84C3V63.63.43.8905600151
BZX84C3V93.93.74.1905600131
BZX84C4V34.34.04.6905600131
BZX84C4V74.74.45.0805500132
BZX84C5V15.14.85.4605480122
BZX84C5V65.65.26.0405400112
BZX84C6V26.25.86.6105150134
BZX84C6V86.86.47.215580124
BZX84C7V57.57.07.915580115
BZX84C8V28.27.78.71558010.75
BZX84C9V19.18.59.615510010.56
BZX84C10109.410.620515010.27
BZX84C111110.411.620515010.18
BZX84C121211.412.725515010.18
BZX84C131312.414.130517010.18
BZX84C151513.815.630520010.110.5
BZX84C161615.317.140520010.111.2
BZX84C181816.819.145522510.112.6
BZX84C202018.821.255522510.114.0

Part NumberZener Voltage Range (Note 2)Maximum Zener Impedance (Note 3)Maximum Reverse Leakage Current
VZ @ IZTZZT @ IZTZZK @ IZKIR @ VR
Nom.(V)Min.(V)Max.(V)(Ω)(mA)(Ω)(mA)(μA)(V)
BZX84C222220.823.355525010.115.4
BZX84C242422.825.670525010.116.8
BZX84C272725.128.98023000.50.118.9
BZX84C303028.032.08023000.50.121.0
BZX84C333331.035.08023250.50.123.1
BZX84C363634.038.09023500.50.125.2
BZX84C393937.041.013023500.50.127.3
BZX84C434340.046.0100270010.132.0
BZX84C474744.050.0170237510.0532.9
BZX84C515148.054.0180240010.0535.7
BZX84C626258.066.021524500.50.0543.4
BZX84C686864.072.0240216000.250.0547.6
BZX84C757570.079.0255217000.250.0552.5

Note 2: Tested with pulses, period=5ms,pulse width =300μs.
Note 3: f=1kHZ.



SOT-23 SMD Zener Diode ​Circuit Diagram:
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V



SOT-23 Surface Mount Zener Diode Rating and Characteristic Curves:
Fig1. Zener Characteristics (VZ Up to 10V)
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V

Fig2. Zener Characteristics (11V to 43V)
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V

Fig3. Temperature Coefficients
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V


Fig4. Typical Leakage Current
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V



SOT-23 SMD Zener Diode ​Package Outline:
300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V


SOT-23 Package SMD Zener Diode ​Ordering Information:

Part NumberComponent PackageQuantity
BZX84C2V4~BZX84C75SOT-23Tape & Reel 3000 PCS / 7” Reel


300mW SMD Diode Zener BZX84C9V1 SOT-23 Zener Voltage Range 8.5 - 9.6V
