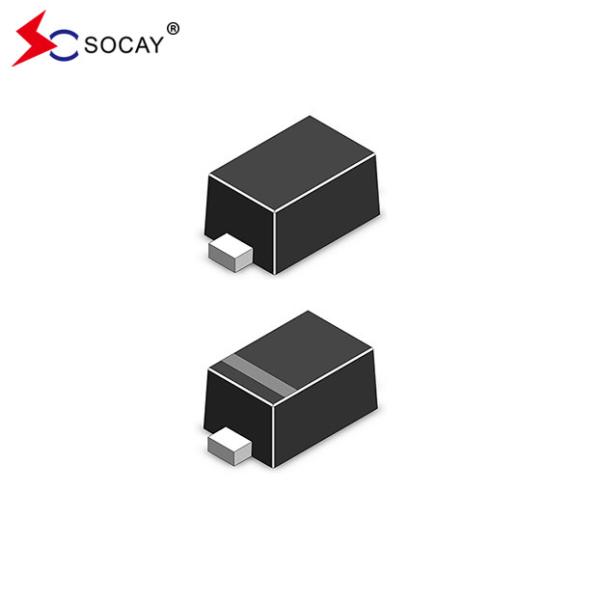

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package
Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package
Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package
Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package
Specifications
Brand Name :
SOCAY
Model Number :
BZX584C2V4
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
8000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
Zener Diode
Product Package Type :
SOD-523
PD :
200mW
VZ (Nom.) :
2.4V
VZ (Min.) :
2.2V
VZ (Max.) :
2.6V
IZK :
1.0mA
IR (Max.) :
20μA
Description

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

Surface Mount Zener Diode DATASHEET: BZX584C2V4_BZX584C75V(SOD-523)_v2303.1.pdf

Surface Mount Zener Diode Characteristics:

  • Constant voltage control
  • It has wide voltage range selection 2.4V to 75V
  • Surface Mount Zener Diode is SOD-523 Thin SMD package
  • RoHS compliant / Green EMC
  • Matte Tin (Sn) Lead finish
  • Cathode Band / Device marking

  • Refer to table list

Surface Mount Zener Diode Absolute Maximum Ratings (TA=25℃):

Parameter Symbol Value Units
Power Dissipation PD 200 mW
Junction Temperature TJ 150 ℃
Storage Temperature TSTG -55 to +150 ℃
Maximum Regulator Current IZM PD / VZ mA

Surface Mount Zener Diode Electrical Characteristics (TA=25℃):

Part Number VZ *1 IZT ZZT @ IZT ZZK @ IZK IZK IR VR
Nom.(V) Min.(V) Max.(V) (mA) Max.(Ω) (mA) Max.(μA) (V)
BZX584C2V4 2.4 2.2 2.6 5 100 600 1.0 50 1.0
BZX584C2V7 2.7 2.5 2.9 5 100 600 1.0 20 1.0
BZX584C3V0 3.0 2.8 3.2 5 95 600 1.0 10 1.0
BZX584C3V3 3.3 3.1 3.5 5 95 600 1.0 5 1.0
BZX584C3V6 3.6 3.4 3.8 5 90 600 1.0 5 1.0
BZX584C3V9 3.9 3.7 4.1 5 90 600 1.0 3 1.0
BZX584C4V3 4.3 4.0 4.6 5 90 600 1.0 3 1.0
BZX584C4V7 4.7 4.4 5.0 5 80 500 1.0 3 2.0
BZX584C5V1 5.1 4.8 5.4 5 60 480 1.0 2 2.0
BZX584C5V6 5.6 5.2 6.0 5 40 400 1.0 1 2.0
BZX584C6V2 6.2 5.8 6.6 5 10 150 0.5 3 4.0
BZX584C6V8 6.8 6.4 7.2 5 15 80 0.5 2 4.0
BZX584C7V5 7.5 7.0 7.9 5 15 80 0.5 1 5.0
BZX584C8V2 8.2 7.7 8.7 5 15 80 0.5 0.7 5.0
BZX584C9V1 9.1 8.5 9.6 5 15 100 0.5 0.5 6.0
BZX584C10V 10 9.4 10.6 5 20 150 1.0 0.2 7.0
BZX584C11V 11 10.4 11.6 5 20 150 1.0 0.1 8.0
BZX584C12V 12 11.4 12.7 5 25 150 1.0 0.1 8.0
BZX584C13V 13 12.4 14.1 5 30 170 1.0 0.1 8.0
BZX584C15V 15 13.8 15.6 5 30 200 1.0 0.1 10.5
BZX584C16V 16 15.3 17.1 5 40 200 1.0 0.1 11.2
BZX584C18V 18 16.8 19.1 5 45 225 1.0 0.1 12.6
BZX584C20V 20 18.8 21.2 5 55 225 1.0 0.1 14.0
BZX584C22V 22 20.8 23.3 5 55 250 1.0 0.1 15.4
BZX584C24V 24 22.8 25.6 5 70 250 1.0 0.1 16.8
BZX584C27V 27 25.1 28.9 2 80 300 0.5 0.1 18.9
BZX584C30V 30 28.0 32.0 2 80 300 0.5 0.1 21.0
BZX584C33V 33 31.0 35.0 2 80 325 0.5 0.1 23.1
BZX584C36V 36 34.0 38.0 2 90 350 0.5 0.1 25.2
BZX584C39V 39 37.0 41.0 2 130 350 0.5 0.1 27.3
BZX584C43V 43 40.0 46.0 2 100 700 1.0 0.1 32.0
BZX584C47V 47 44.65 49.35 2 170 1000 0.25 0.1 36.0
BZX584C51V 51 48.45 53.55 2 180 1300 0.25 0.1 39.0
BZX584C56V 56 53.2 58.8 2 200 1400 0.25 0.1 43.0
BZX584C62V 62 58.9 65.1 2 225 1400 0.25 0.1 47.0
BZX584C68V 68 64.6 71.4 2 240 1600 0.25 0.1 52.0
BZX584C75V 75 71.25 78.75 2 265 1700 0.25 0.1 56.0
*1 Pulse width = 10 ms.

SOD-523 Surface Mount Zener Diode ​Circuit Diagram:

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

SOD-523 Surface Mount Zener Diode Typical Characteristics:

Fig1. Zener Breakdown Characteristic

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

Fig2. Zener Breakdown Characteristics

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

Fig3. Typical Forward Voltage

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

Fig4. Effect of Zener Voltage on Zener Impedance

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

Fig5. Typical Capacitance

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

Fig6. Typical Leakage Current

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

Fig7. Power Derating Curve

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

SOD-523 Surface Mount Zener Diode ​Dimensions:

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package

SOD-523 Package Zener Diode ​Ordering Information:

Part Number Component Package Shipping
BZX584C2V4~BZX584C75V SOD-523 Tape & Reel 8000 PCS / 7” Reel

Power Dissipation 200mW Zener Diode BZX584C2V4 SOD-523 Thin SMD Package
