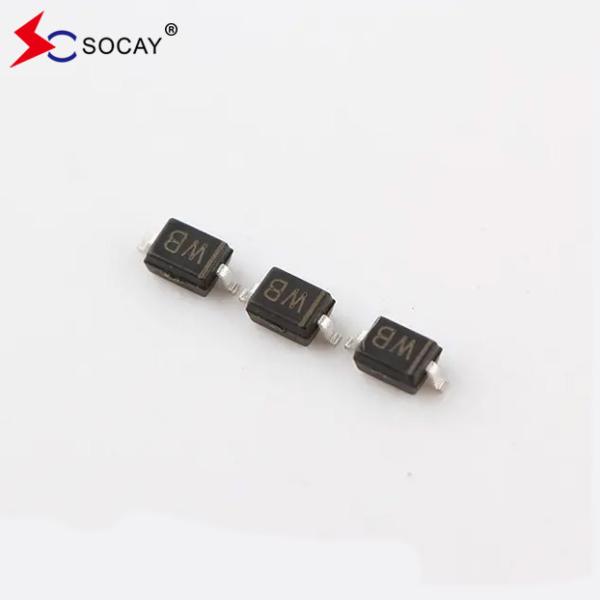

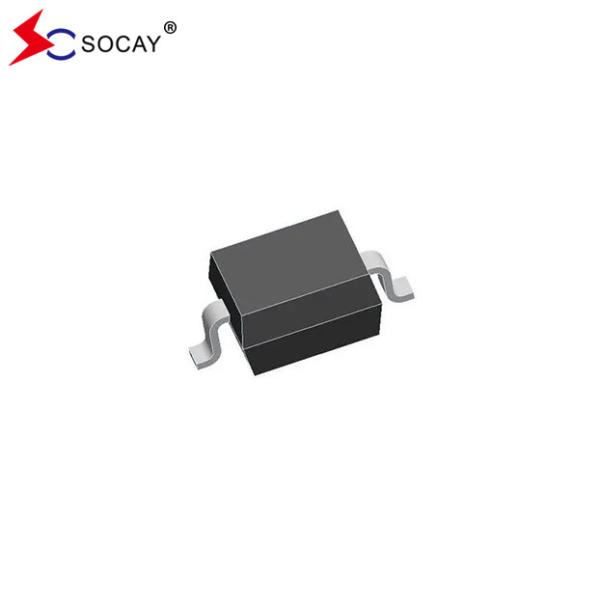

10V 200mW Zener SMD Diode BZT52C10S Electronic Components
10V 200mW Zener SMD Diode BZT52C10S Electronic Components
10V 200mW Zener SMD Diode BZT52C10S Electronic Components
10V 200mW Zener SMD Diode BZT52C10S Electronic Components
Specifications
Brand Name :
SOCAY
Model Number :
BZT52C10S
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
3000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
BZT52C10S Name :
Zener Diode
BZT52C10S Package Type :
SOD-323
BZT52C10S Power Dissipation :
200mW
BZT52C10S Vz (Nom.) :
10V
Vz (Min.) :
9.5V
Vz (Max.) :
10.5V
ZZT (Max.) :
15Ω
IZT :
5mA
Description

Zener Diode BZT52C10S 10V 200mW Electronic Components In Stock SMD Diode

SMD Diode DATASHEET: BZT52C2V4S~BZT52C75S(SOD-323)_v2106.1.pdf

SMD Diode Characteristics:

  • Constant Voltage control
  • It has Wide Voltage Range Selection: From 2.4V to 75V
  • Thin SMD package: SOD-323
  • Accord with RoHS compliant / Green EMC
  • Matte Tin (Sn) Lead finish

SMD Diode BZT52C10S Absolute Max. Ratings (TA=25℃):

SMD DiodeParameter Symbol SMD Diode Value Units
SMD Diode Power Dissipation (Note 1) PD 200 mW
SMD Diode Junction Temperature TJ 150 ℃
SMD Diode Storage Temperature TSTG -55 to +150 ℃
Maximum Regulator Current IZM PD / VZ mA

Note1: Device mounted on ceramic PCB: 7.6mm x 9.4mm x 0.87mm with pad areas 25mm2 .

SMD Diode Electrical Characteristics (TA=25℃):

SMD Diode

Part Number

SMD Diode

Zener Voltage Range (Note 2)

SMD Diode

Maximum Zener Impedance (Note 3)

 SMD Diode Maximum Leakage Current (Note 2)
SMD Diode VZ @ IZT

SMD Diode

ZZT @ IZT

 ZZK @ IZK IR @ VR
Nom.(V) Min.(V) Max.(V) (Ω) (mA) (Ω) (mA) (μA) (V)
BZT52C2V4S 2.4 2.20 2.60 100 5.0 600 1.0 50 1.0
BZT52C2V7S 2.7 2.50 2.90 100 5.0 600 1.0 20 1.0
BZT52C3V0S 3.0 2.80 3.20 95 5.0 600 1.0 10 1.0
BZT52C3V3S 3.3 3.10 3.50 95 5.0 600 1.0 5 1.0
BZT52C3V6S 3.6 3.40 3.80 90 5.0 600 1.0 5 1.0
BZT52C3V9S 3.9 3.70 4.10 90 5.0 600 1.0 3 1.0
BZT52C4V3S 4.3 4.00 4.60 90 5.0 600 1.0 3 1.0
BZT52C4V7S 4.7 4.40 5.00 80 5.0 500 1.0 3 2.0
BZT52C5V1S 5.1 4.80 5.40 60 5.0 480 1.0 2 2.0
BZT52C5V6S 5.6 5.20 6.00 40 5.0 400 1.0 1 2.0
BZT52C6V2S 6.2 5.80 6.60 10 5.0 150 1.0 3 4.0
BZT52C6V8S 6.8 6.40 7.20 15 5.0 80 1.0 2 4.0
BZT52C7V5S 7.5 7.00 7.90 15 5.0 80 1.0 1 5.0
BZT52C8V2S 8.2 7.70 8.70 15 5.0 80 1.0 0.7 5.0
BZT52C9V1S 9.1 8.50 9.60 15 5.0 100 1.0 0.5 6.0
BZT52C10S 10 9.40 10.60 20 5.0 150 1.0 0.2 7.0
BZT52C11S 11 10.40 11.60 20 5.0 150 1.0 0.1 8.0
BZT52C12S 12 11.40 12.70 25 5.0 150 1.0 0.1 8.0
BZT52C13S 13 12.40 14.10 30 5.0 170 1.0 0.1 8.0
BZT52C15S 15 13.80 15.60 30 5.0 200 1.0 0.1 10.5
BZT52C16S 16 15.30 17.10 40 5.0 200 1.0 0.1 11.2
BZT52C18S 18 16.80 19.10 45 5.0 225 1.0 0.1 12.6
BZT52C20S 20 18.80 21.20 55 5.0 225 1.0 0.1 14.0
BZT52C22S 22 20.80 23.30 55 5.0 250 1.0 0.1 15.4
BZT52C24S 24 22.80 25.60 70 5.0 250 1.0 0.1 16.8
BZT52C27S 27 25.10 28.90 80 2.0 300 0.5 0.1 18.9
BZT52C30S 30 28.00 32.00 80 2.0 300 0.5 0.1 21.0
BZT52C33S 33 31.00 35.00 80 2.0 325 0.5 0.1 23.1
BZT52C36S 36 34.00 38.00 90 2.0 350 0.5 0.1 25.2
BZT52C39S 39 37.00 41.00 130 2.0 350 0.5 0.1 27.3
BZT52C43S 43 40.00 46.00 100 2.0 700 1.0 0.1 32.0
BZT52C47S 47 44.00 50.00 100 2.0 750 1.0 0.1 35.0
BZT52C51S 51 48.00 54.00 100 2.0 750 1.0 0.1 38.0
BZT52C56S 56 53.20 58.80 200 2.0 400 0.5 0.045 39.2
BZT52C62S 62 58.90 65.10 215 2.0 423 0.5 0.045 43.4
BZT52C68S 68 64.60 71.40 240 2.0 447 0.5 0.045 47.6
BZT52C75S 75 71.25 78.75 255 2.0 470 0.5 0.045 52.5

Note 2: Short duration test pulse used to minimize self-heating effect. Note 3: f=1kHZ.

SOD-323 SMD Diode ​Circuit Pictiure:

10V 200mW Zener SMD Diode BZT52C10S Electronic Components

SOD-323 SMD Diode ​Outline and Dimensions:

10V 200mW Zener SMD Diode BZT52C10S Electronic Components

SOD-323 SMD Diode ​Quantity:

Part Number Package Shipping
BZT52C2V4S~BZT52C75S SOD-323 Tape & Reel 3000 PCS / 7” Reel
