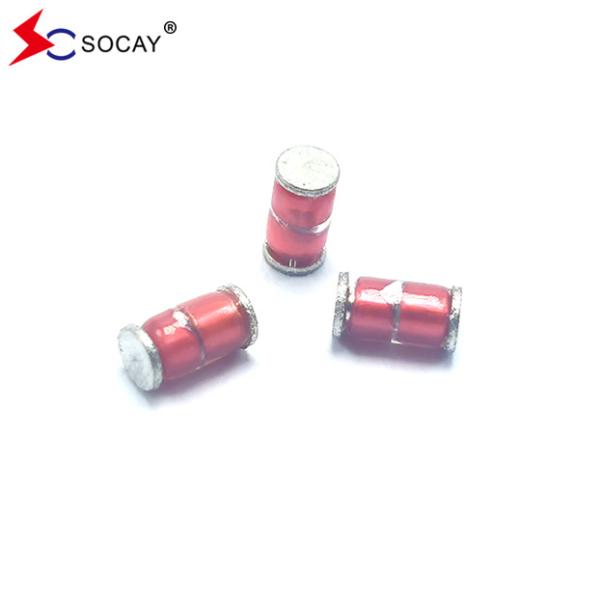

SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD
SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD
SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD
SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD
SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD
SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD
Specifications
Brand Name :
SOCAY
Model Number :
SCB-141N-SMD
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
5-8 work days
Item :
Spark Gap Protectors
Package size :
SMD
VS :
140(119~221)V
IR/DC :
100M/50V
C :
1.0pF
8/20μS :
1000A
Surge Life Test :
10KV / 150A , >200T
Description

SOCAY SCB-141N-SMD SMD Spark Gap Protectors (SPG) 1000A @8/20μS IR/DC 100M/50V

DATASHEET: SCB-SMD_v2204.1.pdf

Part Number

DC Spark-over

Voltage

Vs(V)

Minimum

Insulation

Resistance

IR(OHM)/DC

Maximum

Capacitance

1KHZ-6Vmax

C (pF)

Surge Current

Capacity

8/20 μS

 Surge Life Test
SCB-141N-SMD 140(98~182) 100M / 50V 1.0 1000A 10KV / 150A , >200T
SCB-181N-SMD 180(126~234) 100M / 50V 1.0 1000A 10KV / 150A , >200T
SCB-201M-SMD 200(160~240) 100M /100V 1.0 1000A 10KV / 150A , >200T
SCB-301M-SMD 300(240~360) 100M /100V 1.0 1000A 10KV / 150A , >200T
SCB-401M-SMD 400(320~480) 100M / 250V 1.0 1000A 10KV / 150A , >200T
SCB-501M-SMD 500(400~600) 100M / 250V 1.0 1000A 10KV / 150A , >200T

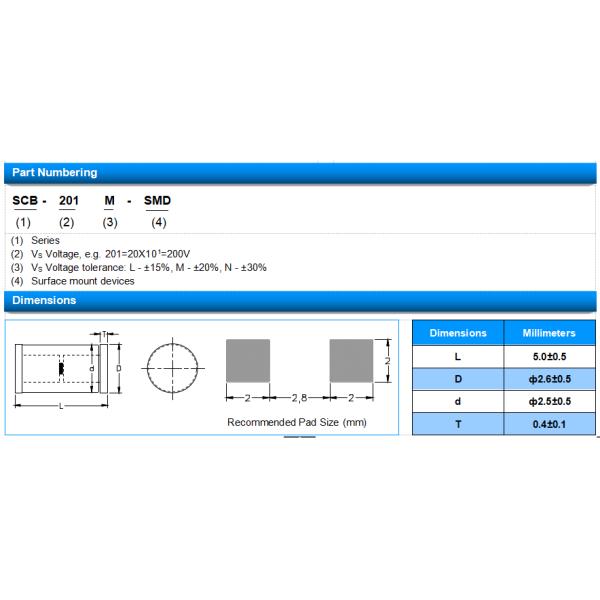

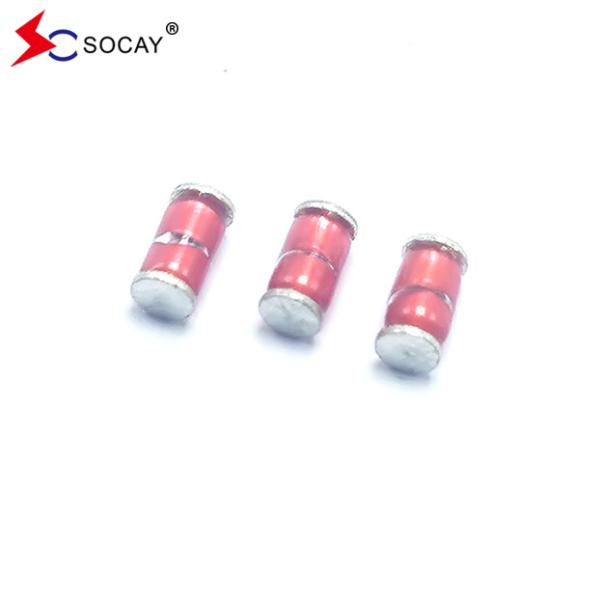

SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD

I.Selection method /Model Name


1,To know the customer's operating voltage, product, application port, protection level.
2,Minimum DC breakdown voltage > 1.2 times the normal DC operating voltage.
3,Select the package, size and flow rate of the device according to the application port and protection level.

Applications:

All kinds of power products, isolators, inverters, medical equipment, 485 converter, communication products, security products.

Items Test Method Standard
DC Spark-over Voltage Measure starting discharge voltage (Vs) by gradually increasing applied DC voltage. Test current is 0.5mA max. And the DC voltage ascends up within 100V/s(Vs＜1000V) or 500V/s(Vs≥1000V).

Rate-of-change, within±30%

insulation resistance & capacitance,

conformed to rated spec.
Insulation Resistance Measure the insulation resistance across the terminal at regular voltage. But the test voltage doesn’t over the DC spark-over voltage.
Capacitance Measure the electrostatic capacitance by applying a voltage of less than 6V (at 1KHz) between terminals.
Static Life 10KV with 1500pf condenser is discharged through 2KΩ resistor. 200 times at an interval of 10sec.

∣△Vs/Vs∣≤30%

Characteristics of other items must meet the specified value

Surge Current

Capacity

 1.2/50μs & 8/20μs, 1000A, electrically connected with a resistor (1~2 Ω), ±5 times, each time interval 60 seconds. Thereafter, outer appearance shall be visually examined. No crack and no failures
Cold Resistance Measurement after -40℃/1000 HRS & normal temperature/2 HRS. Features are conformed to rated spec
Heat Resistance Measurement after 125℃ /1000 HRS & normal temperature/2 HRS.
Humidity Resistance Measurement after humidity 90~95℃(45℃ ) /1000 HRS & normal temperature/2 HRS.
Temperature Cycle 10 times repetition of cycle -40℃ /30min →normal, temp/2 min →125℃/30min, measurement after normal temp/2 HRS.
Solder Ability Apply flux and immerse in molten solder 230±5℃ for 3sec up to the point of 1.5mm from body. Check for solder adhesion. Lead wire is evenly covered by solder
Solder Heat Measurement after lead wire is dipped up to the point of 1.5mm from body into 260±5℃ solder for 10sec Conformed to rated spec
Pull Strength Apply 0.5kg load for 10sec Lead shall not pull out to snap
Flexural Strength Bend lead wire at the point of 2mm from body under 0.25 load and back to its original point. Repeat 1 time.

SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD


SOCAY's main products include a full range of Ceramic Gas Discharge Tubes (GDT), Transient Suppression Diodes (TVS Diodes), ESD Suppressor, Thyristor Surge Suppressors (TSS), Spark Gap Protectors (SPG), Varistors (MOV), Chip Varistors (MLV), PTC Resettable Fuse, Negative Temperature Coefficient thermistors (NTC Thermistors), Chip Bead, Schottky Diodes , Zener Diode, etc. From circuit design to product testing (and provide test reports), we will provide you with one-stop services in the field of circuit protection. With excellent quality and service, SOCAY has won extensive praise from customers and respect from the industry.
