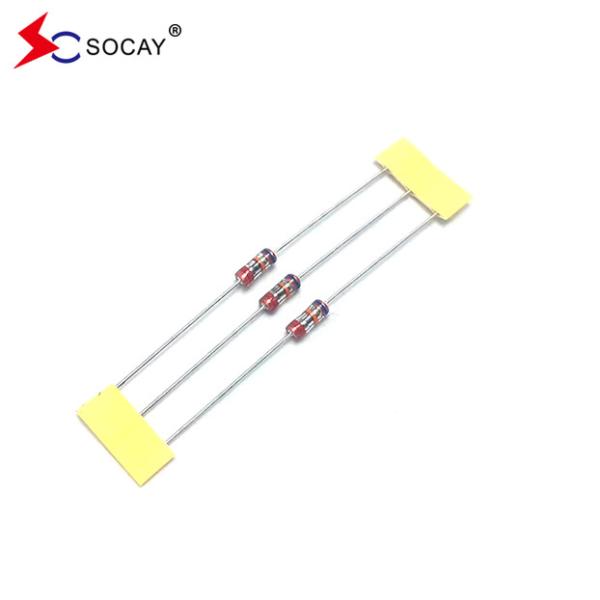

SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
Specifications
Brand Name :
SOCAY
Model Number :
SCBE-141N
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
2000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Packaging Details :

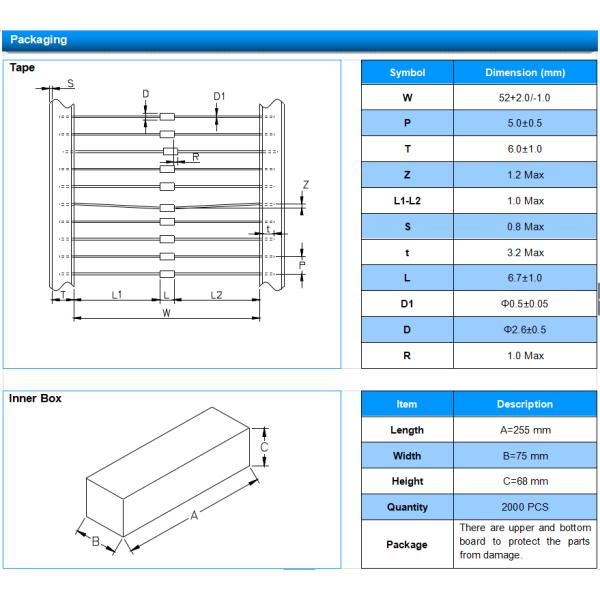

AMMO packing bulk
Product Name :
Spark Gap Protectors (SPG)
Package Type :
Axial Lead
VS :
140(98~182)V
IR/DC :
100M/50V
C :
1.0pF
8/20μS :
1000A
Surge Life Test :
10KV / 150A , >200T
Description

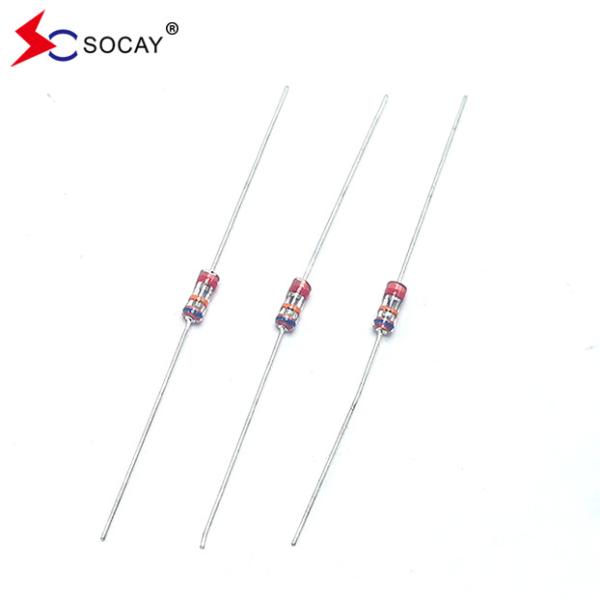

SOCAY SCBE Series Glass Discharge Tube SCBE-141N SPG 140VS Low Electrode Capacitance (≤1.0pF)

DATASHEET: SCBE_v2204.1.pdf

Part Number

DC Spark-over

Voltage

Vs(V)

Minimum

Insulation

Resistance

IR(OHM)/DC

Maximum

Capacitance

1KHZ-6Vmax

C (pF)

Surge Current

Capacity

8/20 μS

 Surge Life Test
SCBE-141N 140(98~182) 100M / 50V 1.0 1000A 10KV / 150A , >200T
SCBE-201M 200(160~240) 100M /100V 1.0 1000A 10KV / 150A , >200T
SCBE-251M 250(200~300) 100M /100V 1.0 1000A 10KV / 150A , >200T
SCBE-301M 300(240~360) 100M /100V 1.0 1000A 10KV / 150A , >200T
SCBE-401M 400(320~480) 100M / 250V 1.0 1000A 10KV / 150A , >200T
SCBE-501M 500(400~600) 100M / 250V 1.0 1000A 10KV / 150A , >200T
SCBE-601M 600(480~720) 100M / 250V 1.0 1000A 10KV / 150A , >200T
SCBE-102M 1000(800~1200) 100M / 500V 1.0 1000A 10KV / 150A , >200T
SCBE-122M 1200(960~1440) 100M / 500V 1.0 1000A 10KV / 150A , >200T


SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester

Features:

u Approximately zero leaking current before clamping voltage

u Less decay at on/off state.

u High capability to withstand repeated lightning strikes.

u Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ).

u RoHS compliant.

u Bilateral symmetrical.

u Temperature, humidity and lightness insensitive.

u Working temperature: -45℃~ +125 ℃

u Storage temperature: -45℃~ +125 ℃

u Meets MSL level 1, per J-STD-020



Applications:

u Power Supplies

u Motor sparks eliminating

u Relay switching spark absorbing

u Data line pulse guarding

u Electronic devices requiring UL497A and UL497B compliant

u Telephone/Fax/Modem

u High frequency signal transmitters/receivers

u Satellite antenna

u Radio amplifiers

u Alarm systems

u Cathode ray tubes in Monitors/TVs

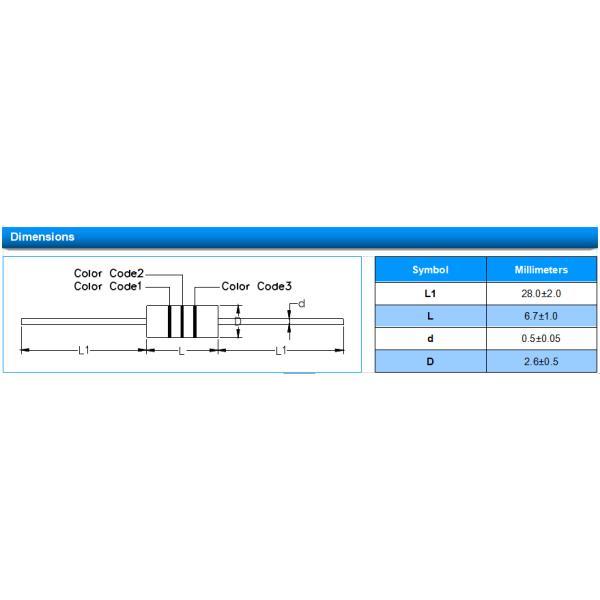

Part Number Color Code1 Color Code2 Color Code3
SCBE-141N Brown Red White
SCBE-201M Red Orange Blue
SCBE-251M Red Orange Green
SCBE-301M Orange Red White
SCBE-401M Yellow Black Brown
SCBE-501M Green Yellow Orange
SCBE-601M Blue Red Yellow
SCBE-102M Black Orange Red
SCBE-122M Black Red Orange



Hand Soldering
Solder iron temperature: 350±5℃
Heating time: 3 seconds max.

General attention to soldering

  • High soldering temperatures and long soldering times can cause leaching of the termination, decrease in adherence strength, and the change of characteristic may occur.
  • For soldering, please refer to the soldering curves above. However, please keep exposures to temperatures exceeding 200℃ to fewer than 50 seconds.
  • Please use a mild flux (containing less than 0.2wt% CI). Also, if the flux is water soluble, be sure to wash thoroughly to remove any residue from the underside of components that could affect resistance.


Cleaning
When using ultrasonic cleaning, the board may resonate if the output power is too high. Since this vibration can cause cracking or a decrease in the adherence of the termination, we recommend that you use the conditions below:
Frequency: 40kHz max.
Output power: 20W/liter
Cleaning time: 5 minutes max.


SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
