RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors
RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors
RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors
RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors
RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors
RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors
Specifications
Brand Name :
SOCAY
Model Number :
SCC-141N
Certification :
REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1500PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Packaging Details :

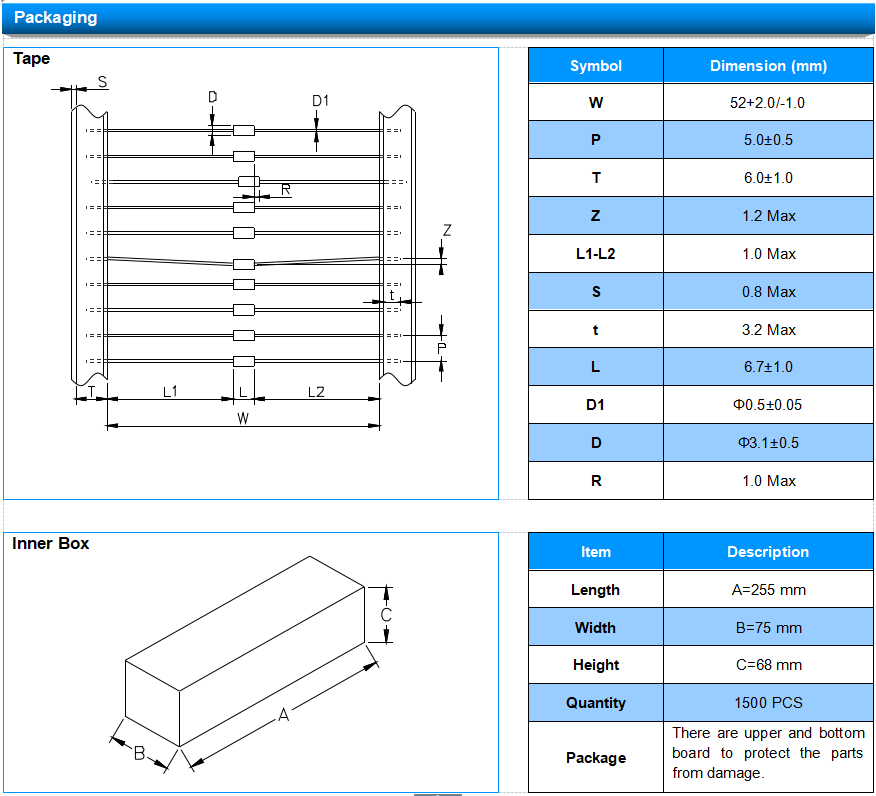

AMMO packing bulk
Product Name :
Spark Gap Protectors (SPG)
Package Type :
Axial Lead
VS :
140(98~182)V
IR/DC :
100M/50V
C :
1.0pF
8/20μS :
3000A
Surge Life Test :
10KV / 150A , >300T
Description

Original Factory Supply Spark Gap Protectors (SPG) SCC-141N SPG SOCAY Provide Free Protection Plan

DATASHEET: SCC_v2204.1 .pdf

Part Number

DC Spark-over

Voltage

Vs(V)

Minimum

Insulation

Resistance

IR(OHM)/DC

Maximum

Capacitance

1KHZ-6Vmax

C (pF)

Surge Current

Capacity

8/20 μS

Surge Life Test
SCC-141N140(126~210)100M / 50V1.03000A10KV / 150A , >300T
SCC-201M200(160~240)100M /100V1.03000A10KV / 150A , >300T
SCC-251M250(200~300)100M /100V1.03000A10KV / 150A , >300T
SCC-301M300(240~360)100M /100V1.03000A10KV / 150A , >300T
SCC-401M400(320~480)100M / 250V1.03000A10KV / 150A , >300T
SCC-501M500(400~600)100M / 250V1.03000A10KV / 150A , >300T
SCC-601M600(480~720)100M / 250V1.03000A10KV / 150A , >300T
SCC-701M700(560~840)100M / 250V1.03000A10KV / 150A , >300T
SCC-801M800(640~960)100M / 250V1.03000A10KV / 150A , >300T
SCC-102M1000(800~1200)100M / 500V1.03000A10KV / 150A , >300T
SCC-122M1200(960~1440)100M / 500V1.03000A10KV / 150A , >300T
SCC-302M3000 (2400~3600)100M / 500V1.03000A10KV / 150A , >300T
SCC-362M3600 (2880~4320)100M / 500V1.03000A10KV / 150A , >300T


RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors


Features:

u Approximately zero leaking current before clamping voltage

u Less decay at on/off state.

u High capability to withstand repeated lightning strikes.

u Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ).

u RoHS compliant.

u Bilateral symmetrical.

u Temperature, humidity and lightness insensitive.

u Working temperature: -45℃~ +125 ℃

u Storage temperature: -45℃~ +125℃

u Meets MSL level 1, per J-STD-020




Applications:

u Power Supplies

u Motor sparks eliminating

u Relay switching spark absorbing

u Data line pulse guarding

u Electronic devices requiring UL497A and UL497B compliant

u Telephone/Fax/Modem

u High frequency signal transmitters/receivers

u Satellite antenna

u Radio amplifiers

u Alarm systems

u Cathode ray tubes in Monitors/TVs

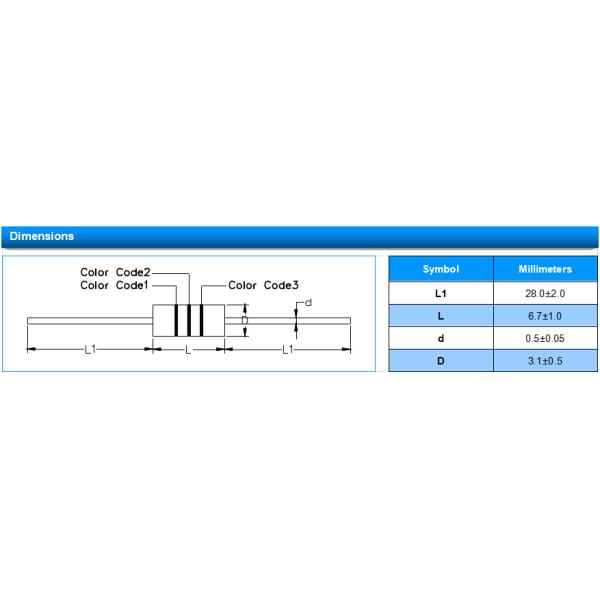

Part NumberColor Code1Color Code2Color Code3
SCC-141NBrownRedWhite
SCC-201MRedBrownWhite
SCC-251MRedGreenBrown
SCC-301MOrangeRedWhite
SCC-401MYellowBrownWhite
SCC-501MGreenOrangeRed
SCC-601MBlueRedOrange
SCC-801MGrayBlackRed
SCC-102MBlackBlackRed
SCC-122MBlackRedOrange
SCC-302MOrangeBlackRed
SCC-362MOrangeBlueRed


RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors

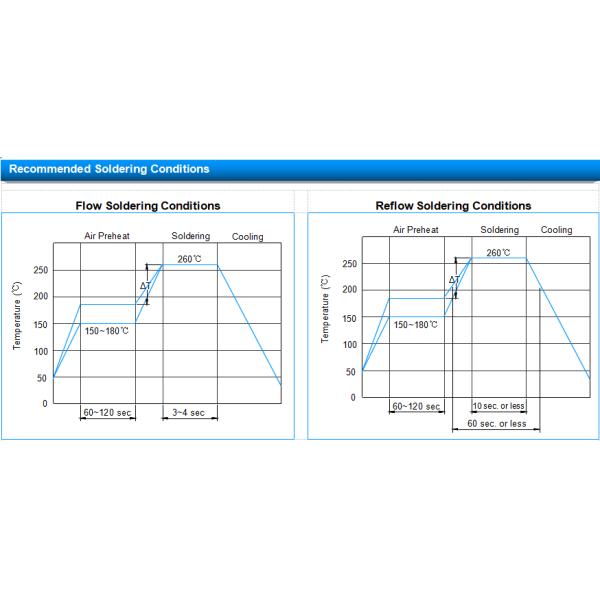

1) Time shown in the above figures is measured from the point when chip surface reaches temperature.
2) Temperature difference in high temperature part should be within 110℃ .
3) After soldering, do not force cool, allow the parts to cool gradually.

RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors

RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors
