High Precision WIFI Smart HVAC Controller For Centralized Management
High Precision WIFI Smart HVAC Controller For Centralized Management
High Precision WIFI Smart HVAC Controller For Centralized Management
High Precision WIFI Smart HVAC Controller For Centralized Management
Specifications
Fan speed control :
Three speed levels
Brand Name :
OEM or neutral (no brand)
Payment Terms :
T/T
Shell color :
White
Model Number :
G7 Pro
Place of Origin :
China
Delivery Time :
2-3 weeks
Suitable for fans :
AC/EC/DC fans
Certification :
CE, RoHS
Optional built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Price :
$103
Warranty :
1 Year
MOQ :
1
Material :
PC and ABS
Supply Ability :
100000pcs
Description
G7 PRO -- Smart HVAC Controller Equipped with Advanced Sensors and Intelligent Algorithms for Optimal Energy Consumption Reduction
Product Overview

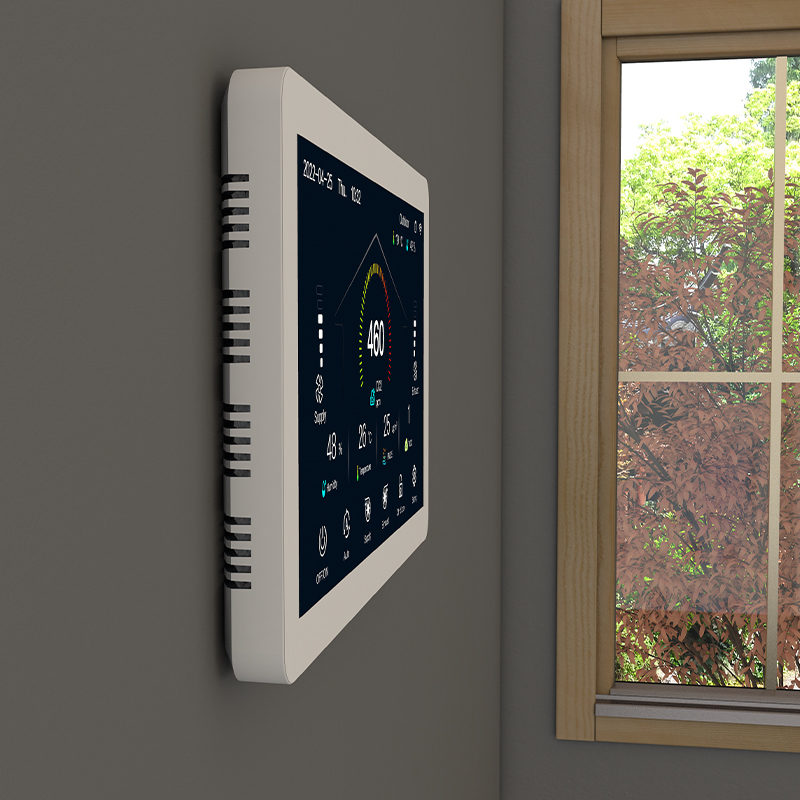

G7 Pro (black UI version) is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, VOC temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design.

Equipped with Wi-Fi for remote access and control via the internet, it also includes RS485 port and MODBUS protocol for communication with smart home and building automation systems.

The AC version outputs relay signals to directly control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation. Suitable for residential, commercial, and industrial applications, it effectively improves air quality and creates healthy, comfortable, efficient, and energy-saving environments.

Key Features
  • CO2 PM2.5 VOC Humidity Temp Monitor Controller
  • Automatic Air Exchange Based CO2 PM2.5 VOC Levels
  • High Precision Air Sensor Vent Panel
  • Indoor Air Quality IAQ Smart Controller
  • WIFI remote control
  • Three Levels Fan Speed Control
  • Energy Recovery Ventilation (ERV) Compatible
  • Heat Recovery Ventilation (HRV) Compatible
Product Specifications
Dimension 115 × 185 mm
Display Interface 7 inch, 1024 x 600
Warm-up Time 2 minutes
Response Time ≤ 10 seconds
Wiring Terminal Max 2.5 mm² wire
Recovery Time ≤ 30 seconds
Rated Voltage AC110-240V, 50/60Hz
Operating Temperature -10℃ to +50℃
Standby Power ≤ 3.0W
Operating Humidity 5％RH to 90％RH
Control Power ≤ 200W
Storage Temperature -10℃ to +60℃
Suitable for Fans AC/EC/DC
PM2.5 Display Range 0μg/m³ to 999μg/m³
Temperature Display Range 0℃ to 99℃
CO2 Display Range 0ppm to 9999ppm
Humidity Display Range 0% to 99%
Fixing Hole Distance 60mm (standard)
