Automatic Energy Optimization HRV / ERV Controller With WiFi RS485 CO2 Controller
Automatic Energy Optimization HRV / ERV Controller With WiFi RS485 CO2 Controller
Automatic Energy Optimization HRV / ERV Controller With WiFi RS485 CO2 Controller
Automatic Energy Optimization HRV / ERV Controller With WiFi RS485 CO2 Controller
Specifications
OEM/ODM Service :
Available
Communication Interface :
RS485 standard
Brand Name :
OEM or neutral (no brand)
Place of Origin :
Guangdong, China
MOQ :
1
Wireless Control :
Wi-Fi Remote Access
Model Number :
G6-S
Delivery Time :
2-3 weeks
Payment Terms :
T/T
Supply Ability :
100000pcs
Operating Mode :
Auto/ Manual/ Timer
Power Supply :
Customized According to Project Requirements
Price :
$65
Certification :
CE, RoHS
Built in sensors :
VOC+PM2.5+CO2+Temperature+Humidity
Description

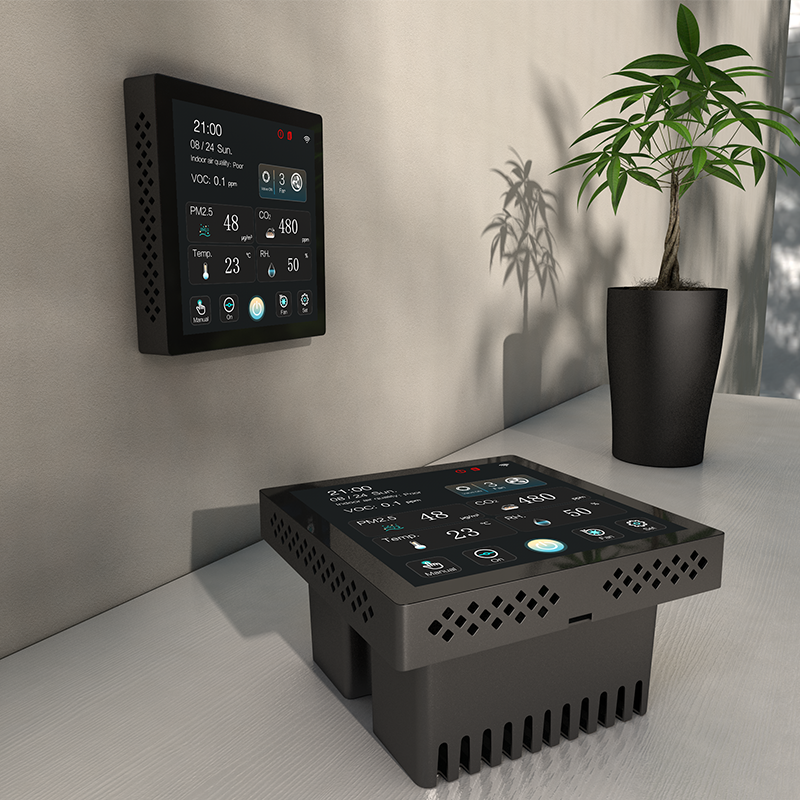

Product overview:


G6-S smart fresh air ventilation controller with touchscreen display can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional) and other data in real time; can be connected to WIFI (optional); with ModBus RTU (RS485) interface.


Users can connect to backends such as smart homes through the ModBus interface to monitor device status;

the output signal of the AC 3-speed controller directly controls the start and speed of the fresh air fan (for AC fan).

the output signal 0-10V of controller directly controls the start and speed of the fresh air fan (for EC fan).


It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.



Product features:

  • Ventilation System Controller
  • Air Ventilation Control Panel
  • Smart Ventilation Controller
  • HVAC Ventilation Controller
  • Air Exchange Controller
  • Fresh Air Management Controller



* Dimension:
86 × 86 × 52.5 mm

* Warm-up time:
2 minutes
* Fixing hole distance:
60mm (standard)

* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire

* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 2.0W

* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W

* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

* Storage humidity:
≤ 60％RH
* Temperature display range:
0℃ —— 99℃

* Life:
≥ 3 years
* CO2 display range:
350ppm——2000ppm

* PM2.5 display range:
1ug/m3——999ug/m3

Product images:

Automatic Energy Optimization HRV / ERV Controller With WiFi RS485 CO2 Controller

Automatic Energy Optimization HRV / ERV Controller With WiFi RS485 CO2 Controller
