Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Specifications
Applicable Industries :
Building Material Shops, Construction works , Energy & Mining
Showroom Location :
Canada, United States, Brazil, Mexico, Russia, Kenya, South Africa, Nigeria, Australia
Condition :
New
Type :
Gravity Separator
Production Capacity :
98%
Place of Origin :
Henan, China
Brand Name :
sinolion
Voltage :
380v/415v/440v
Dimension(L*W*H) :
depends on models
Weight :
2200 KG
Warranty :
1 Year
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Gear, PLC, Pressure vessel, Engine, Gearbox
Key Selling Points :
Automatic
Power :
3-30KW
Screen material :
steel bar, steel plate punch hole, steel wire woven, stainless steel
Dimension :
according to capacity
Installation :
supply manual to guide user
Capacity :
50-500 tons per hour
Feeding size :
less than 300mm
Discharge size :
as request
Color :
yellow, white, red, blue, gray( or as client request)
Product name :
Gold Ore Processing Plant Gold Mining Trommel Equipment for Sale
Keywords :
Gold Ore Processing Plant

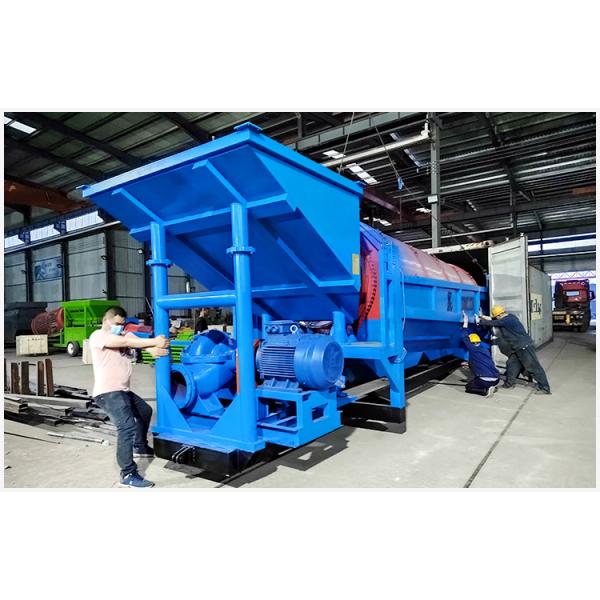

Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight.
Motor is packed
Port :
Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( as client request)
Supply Ability :
40 Set/Sets per Month coke trommel screen
Price :
$4,080.00 - $24,000.00/sets
MOQ :
1 unit
Description
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity

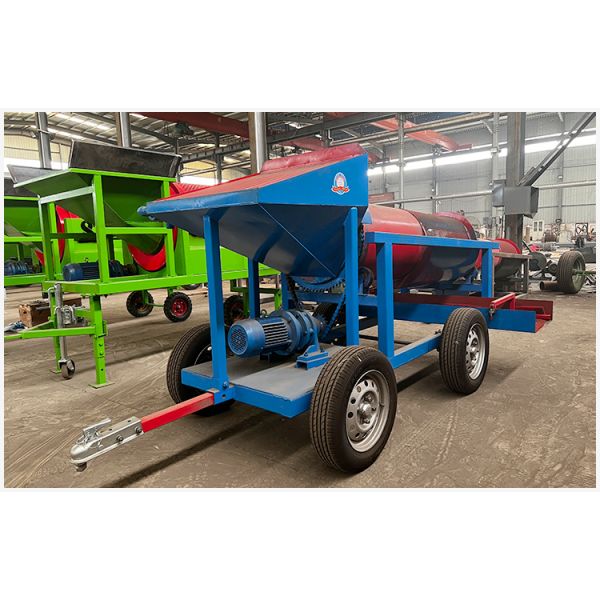

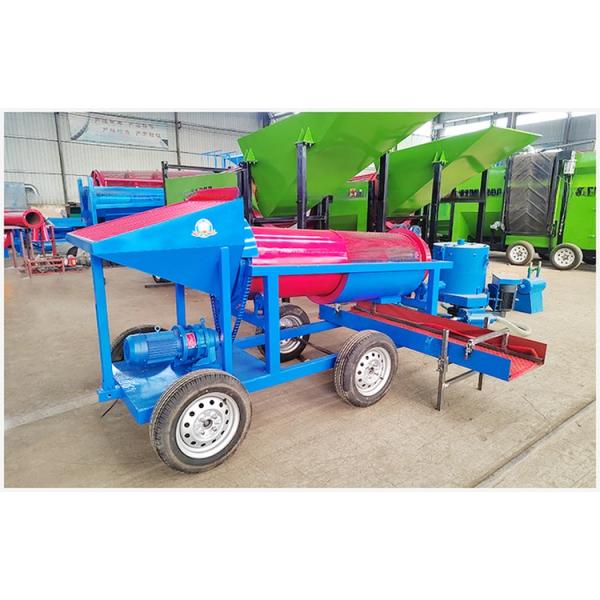

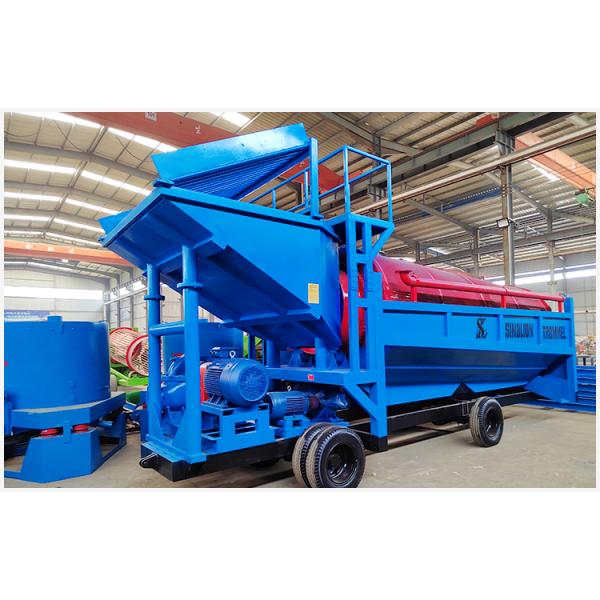

Mobile Stationary Sand Trommel Screen For River Gold Mining Equipment
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity

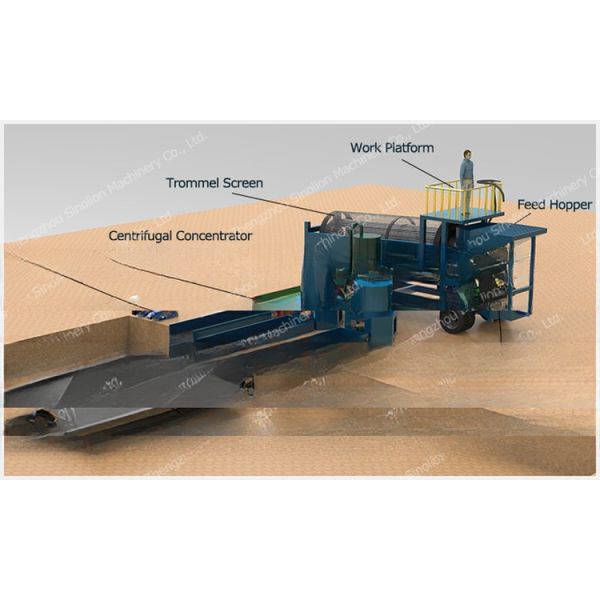

Structure and Principle

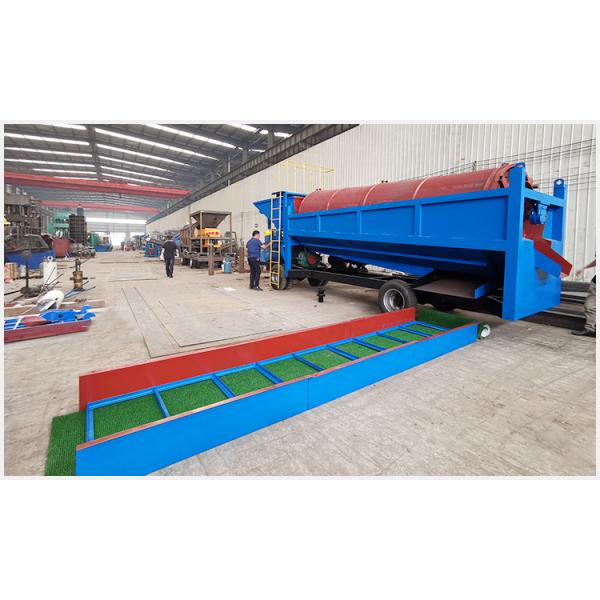

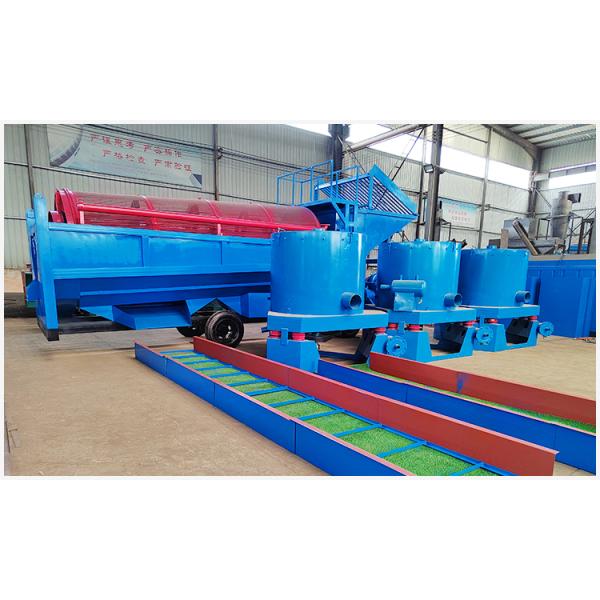

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The
Strong Water Pressure Of The Shower Equipped In The Hopper. 2. Selection And Cleaning Of Raw Materials Raw Materials Of The
Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The
Gold Dust Separate Panel. 3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But
Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Model
Capacity
(t/h)
Capacity
(t/h)
Diameter
(mm)
Length
(mm)
Discharge
(mm)
Input
(mm)
Dimension
((mm)
GMTS0519
5-10
5-10
500
1910
0-100
≤300
3000x1000x1800
GMTS1020
10-30
10-30
1000
2000
0-100
≤300
3390×1400×2140
GMTS1225
30-50
30-50
1200
2500
0-100
≤300
4146×1600×2680
GMTS1548
80-150
80-150
1500
4800
0-100
≤400
8460×2300×2500
GMTS1848
100-200
100-200
1800
4800
0-100
≤400
8460×2300×2700
GMTS2060
200-350
200-350
2000
6000
0-100
≤400
9680×2300x3420
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity
