6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Other
Showroom Location :
Canada, United States, Australia
Condition :
New
Type :
Gravity Separator
Production Capacity :
80-150T/H
Place of Origin :
Henan, China
Brand Name :
SinoLion
Voltage :
220V/380V/415V/480V
Dimension(L*W*H) :
8000*2200*3600
Weight :
6500 KG
Warranty :
1 Year
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Engine, Gearbox
Key Selling Points :
Competitive Price, High Separation Efficiency
Installation :
supply manual to guide user
Customizable :
logo / packing / graphic
Color :
yellow, white, red, blue, gray( or as client request)
Sieve :
Manganese wire
Dimension :
As per different model
Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.
Port :
Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)
Supply Ability :
50 Set/Sets per Month gold trommel screening plant
Price :
$14,500.00/sets 1-1 sets
MOQ :
1 unit
Description
Product Description

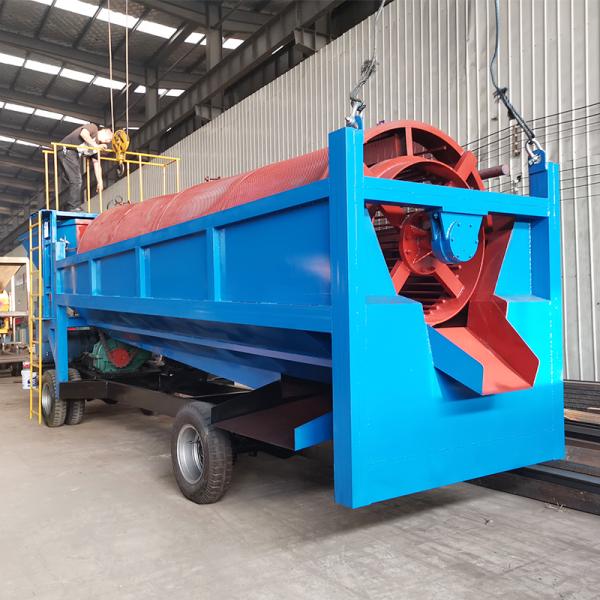

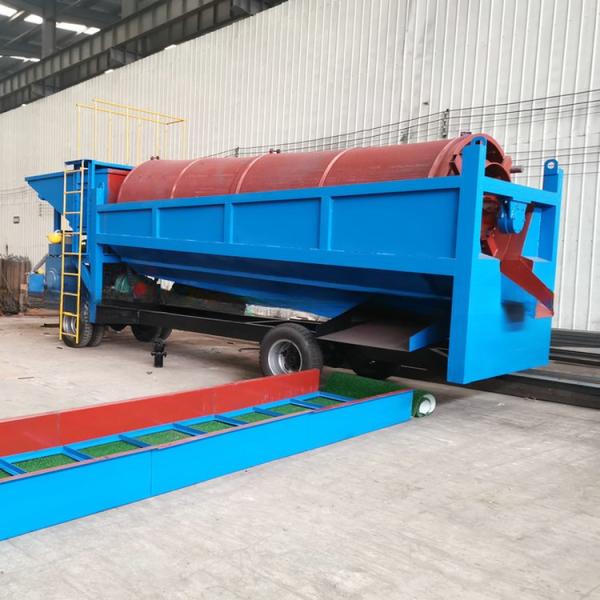

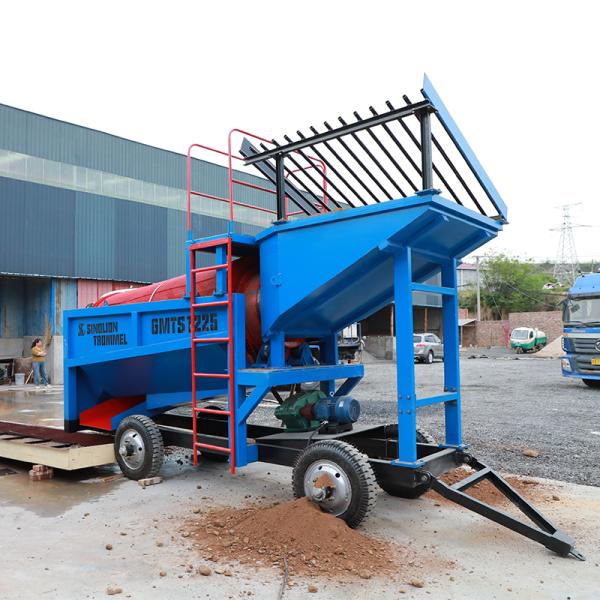

The gold trommel screen is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein. It can be easily movable on land, it has a compact structure, strong integrity, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
Raw materials input through the inletof the hopper will be pushed into thesieve by the strong water pressure ofthe spray head installed in the hopper ,through the rotation of the drum sievethe raw material is washed by waterand selected through the gold pan.the light soil and sand are washedaway by the water, and the heaviergold will gather in the gold pan.
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
Screen material
The drum part is made of round steel and manganese wire, and the outer screen is made of manganese wire, which is strong and durable. The design of the double-layer screen improves the screening efficiency on the one hand, and can screen materials of three specifications On the one hand, it protects and improves the service life of the screen.
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000

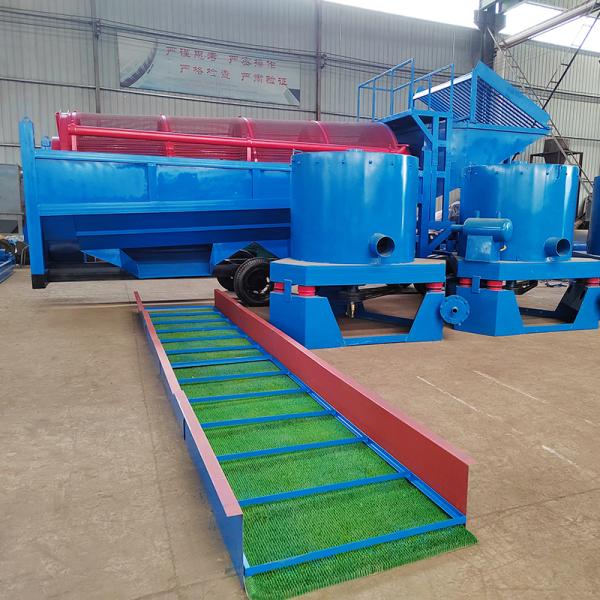

We have rich experience in the production of mineral processing equipment. The following are the gold ore processing lines we customized for our customers.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
Packing & Delivery
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant
6500 KG Gold Machinery Separator Mobile Gold Trommel Wash Plant

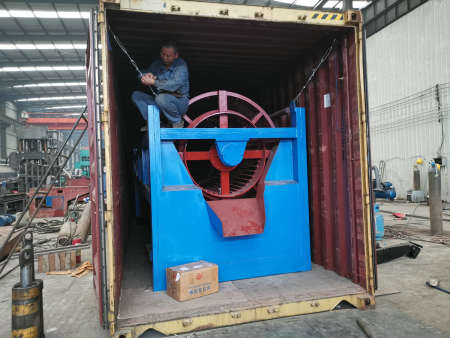

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
