Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Showroom Location :
Canada, United States, Australia
Condition :
New
Type :
Gravity Separator
Production Capacity :
98%
Place of Origin :
Henan, China
Brand Name :
SinoLion
Voltage :
220V/380V
Dimension(L*W*H) :
4300*1650*2220
Weight :
1900 KG
Warranty :
1 Year
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Engine, Gearbox
Key Selling Points :
Easy to Operate, High Separation Efficiency
Installation :
supply manual to guide user
Color :
yellow, white, red, blue, gray( or as client request)
Customizable :
logo / packing / graphic
Double screen :
Multiple material output
Screen aperture :
5mm
Price :
$7,750.00/sets >=1 sets
MOQ :
1 unit
Description
Product Description

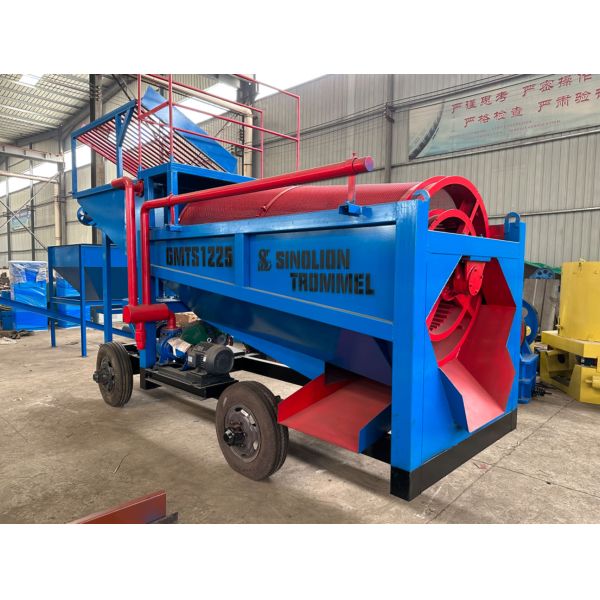

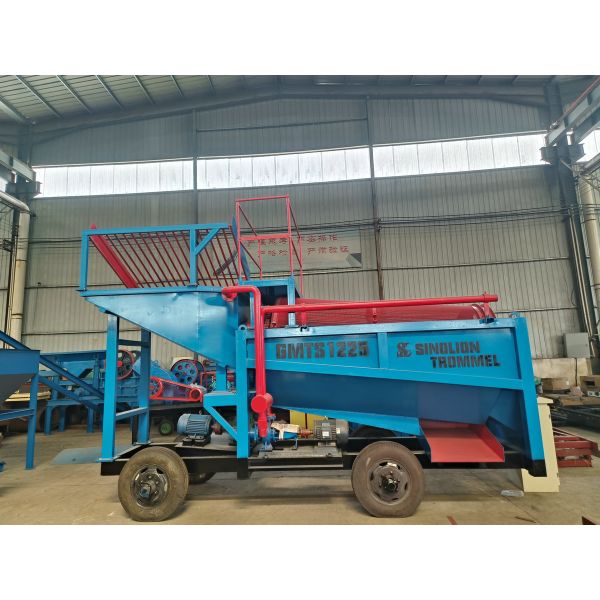

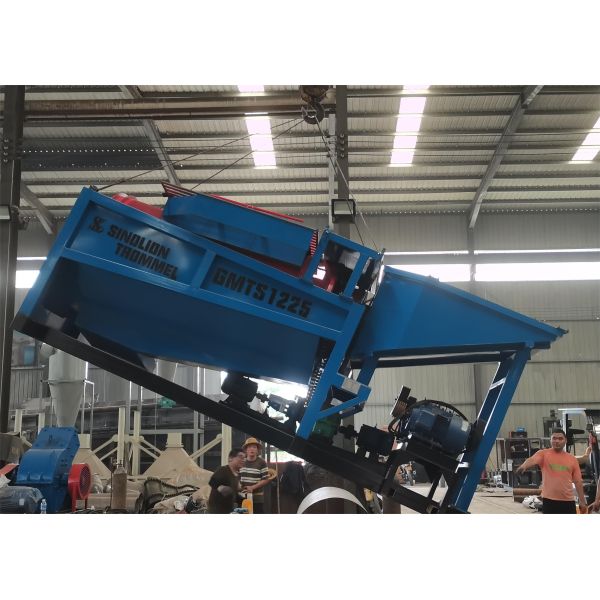

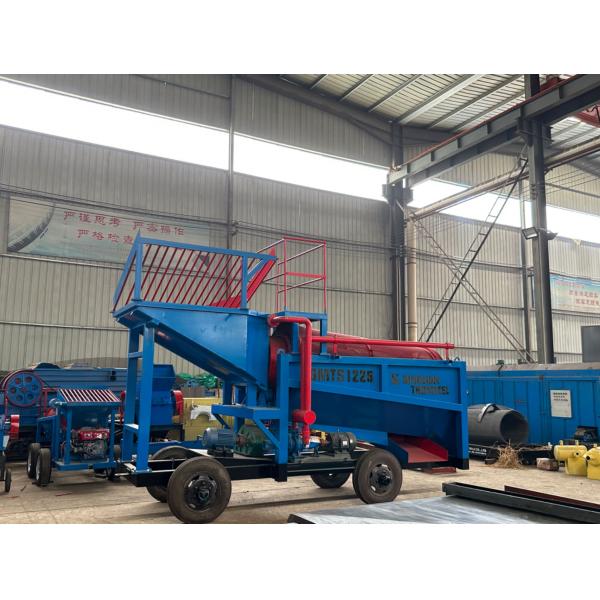

Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection.
The mobile gold washing plant is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Sudan, Africa, North Korea, Tanzania, Ghana etc.
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing

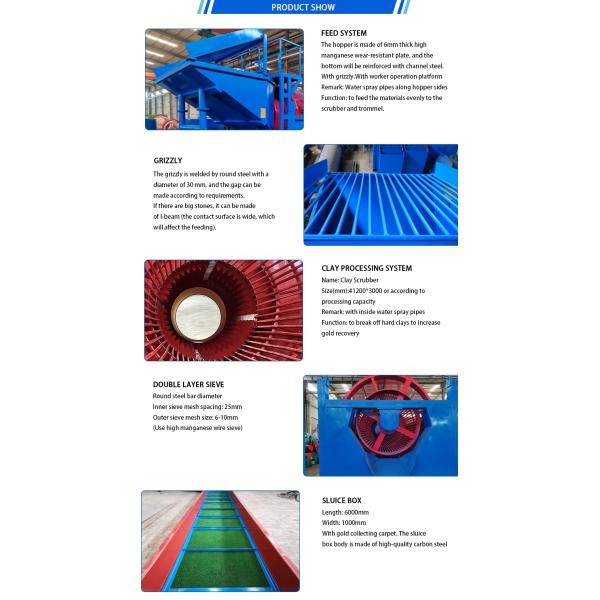

Working Principle
1.Raw material feeding
The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper.
2. Washing
The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection
Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
The drum part is made of round steel and manganese wire. It has three outlets, which can screen materials of three specifications, and the screen can be designed with two apertures, which improves the screening efficiency of materials and saves working time. , the maximum size of the product under the screen is 100 mm, the middle is 10-50 mm, and the thinnest is up to 3 mm.
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing

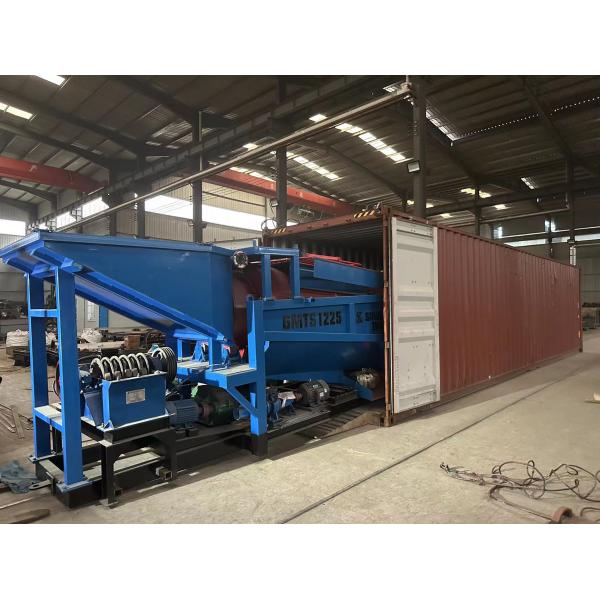

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
Company Profile
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
Gold Separation Mining Trommel Gold Washing Plant Equipment with Customizable Packing
We have rich experience in the production of mineral processing equipment.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
