220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Showroom Location :
Canada, United States, Germany
Condition :
New
Type :
Gravity Separator
Production Capacity :
98%
Place of Origin :
Henan, China
Brand Name :
SinoLion
Voltage :
220V/380V/415V/480V
Dimension(L*W*H) :
3200*1400*1900
Weight :
1200 KG
Warranty :
1 Year
Marketing Type :
Hot Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Engine, Gearbox
Key Selling Points :
Easy to Operate, High Separation Efficiency
Customizable :
logo / packing / graphic
Color :
yellow, white, red, blue, gray( or as client request)
Installation :
supply manual to guide user
Feeding size :
less than 300mm
Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.
Port :
Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)
Supply Ability :
50 Set/Sets per Month gold trommel screening plant
Price :
$5,310.00/sets 1-2 sets
MOQ :
1 unit
Description
Product Description

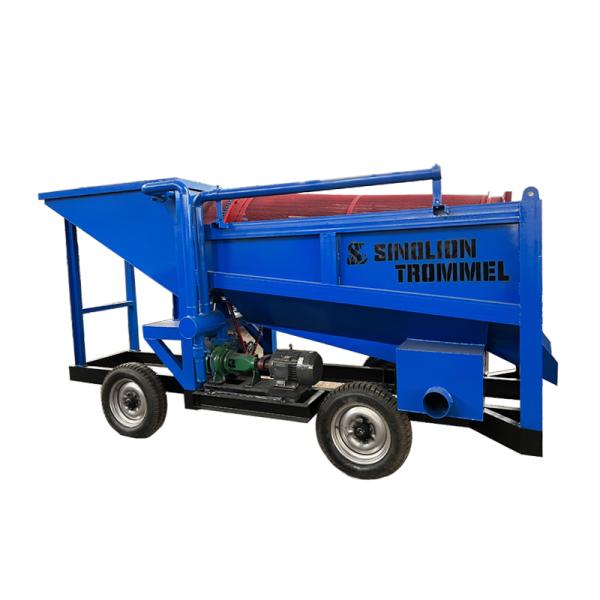

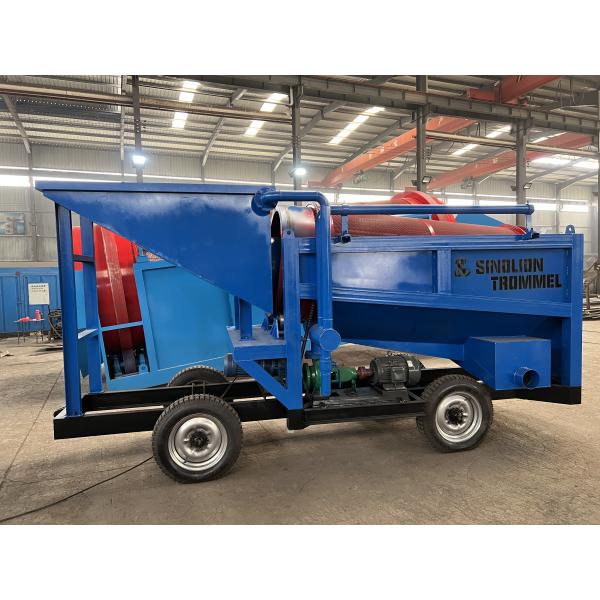

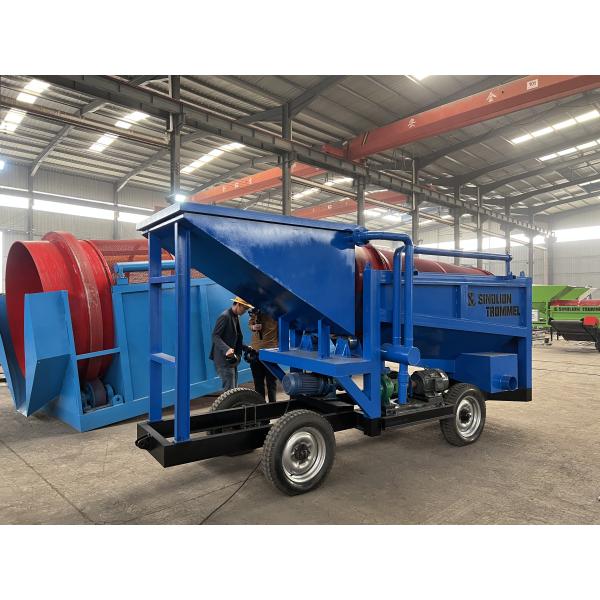

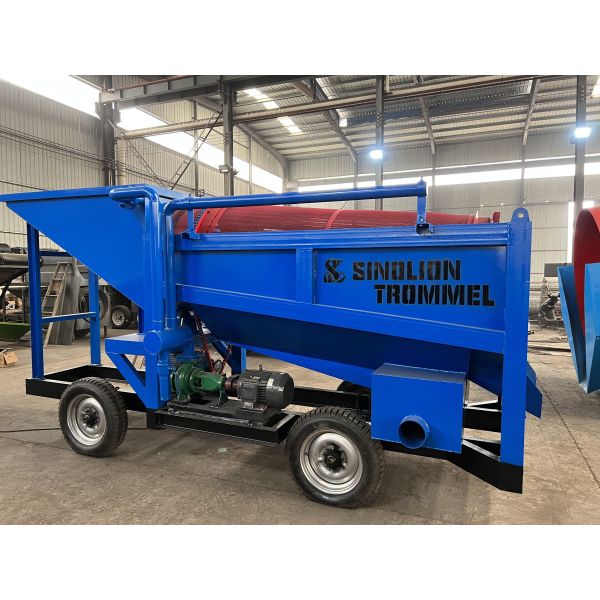

Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection.
Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
Raw materials input through the inletof the hopper will be pushed into thesieve by the strong water pressure ofthe spray head installed in the hopper ,through the rotation of the drum sievethe raw material is washed by waterand selected through the gold pan.the light soil and sand are washedaway by the water, and the heaviergold will gather in the gold pan.
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant

The drum part is made of round steel and manganese wire, the design of the double-layer screen improves the screening efficiency on the one hand, and on the other hand protects and improves the service life of the screen.
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000

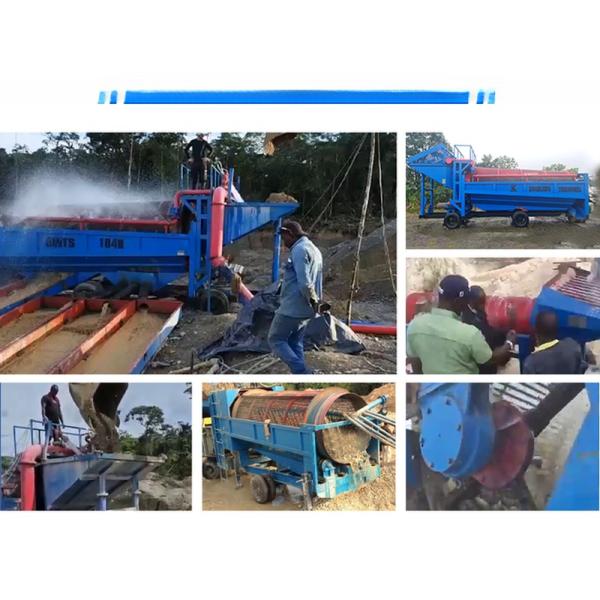

Case
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
Packing & Delivery
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
220V/380V/415V/480V Mobile Gold Sand Separator Mining Trommel Machinery Washing Plant
All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container. Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
