Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location :
Canada, United States, Australia
Condition :
New
Type :
Gravity Separator
Production Capacity :
10-30T/H
Place of Origin :
Henan, China
Brand Name :
Sionlion
Voltage :
220V/380V
Dimension(L*W*H) :
3200*1400*1900
Weight :
1200 KG
Warranty :
1 Year
Marketing Type :
Hot Product 2023, Hot Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Engine, Gearbox
Key Selling Points :
High-accuracy, obvious gold-selected effect
Feeding size :
less than 300mm
Installation :
supply manual to guide user
Customizable :
logo / packing / graphic
Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.
Port :
Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)
Supply Ability :
50 Set/Sets per Month gold trommel screening plant
Price :
$5,310.00/sets 1-1 sets
MOQ :
1 unit
Description
Product Description

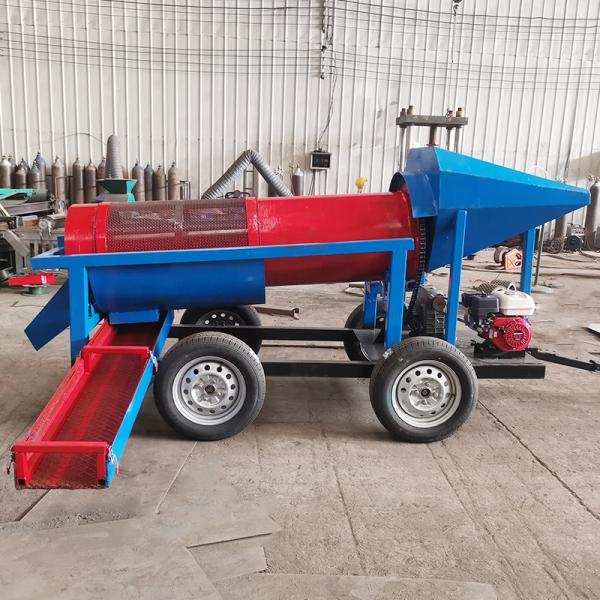

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold . Its advantages are flexible movement, simple operation, convenient cleaning, high gold recovery capacity，and obvious gold selection effect, and the equipment can work in different construction and operation areas, it can be moved with a trailer hitch ,and the operation cost is low.
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Working principle
1.>Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Double screen
The drum part is made of round steel and manganese wire, the design of the double-layer screen improves the screening efficiency ; on the one hand, and on the other hand protects and improves the service life of the screen.
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
More models
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment

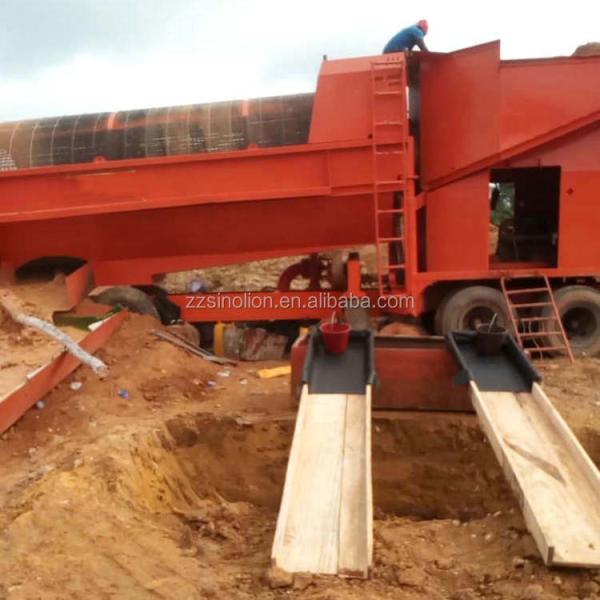

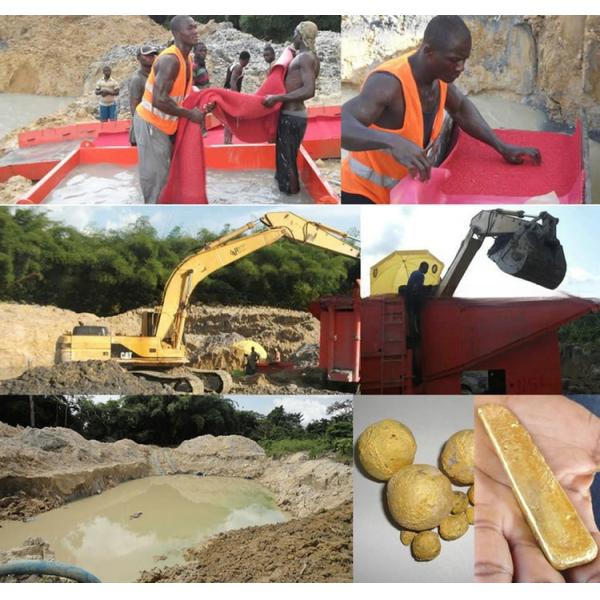

Case
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000
Packing & Delivery
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Gold Machinery Separator Gold Trommel Wash Plant with Gravity Separation Equipment
Wooden box packing or Container shipping.
