Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Farms, Retail, Construction works , Energy & Mining
Showroom Location :
United States, Australia
Condition :
New
Type :
Gravity Separator
Production Capacity :
10-30T/H
Place of Origin :
Henan, China
Brand Name :
Sionlion
Voltage :
220V/380V/415V/480V
Dimension(L*W*H) :
3000x800x1640
Weight :
600 KG
Warranty :
1 Year
Marketing Type :
Ordinary Product, Hot Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, Engine
Key Selling Points :
Easy to Operate, obvious gold-selected effect
Feeding size :
less than 300mm
Installation :
supply manual to guide user
Customizable :
logo / packing / graphic
Price :
$5,310.00/sets 1-1 sets
MOQ :
1 unit
Description
Product Description

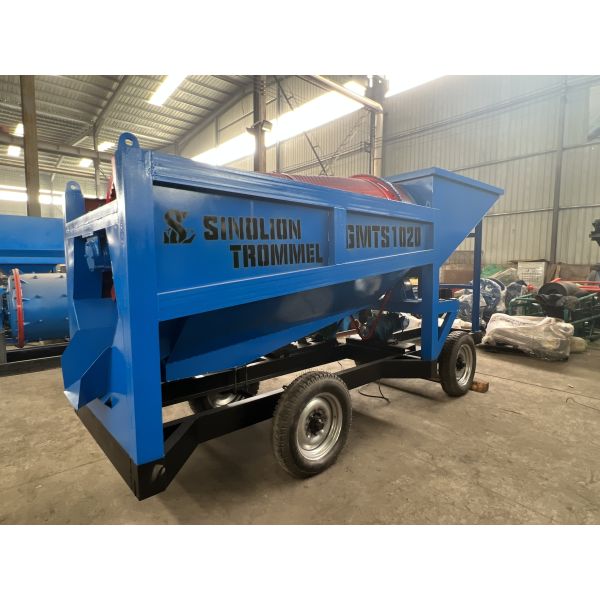

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold .Its advantages are flexible movement, simple operation,convenient cleaning， high gold recovery capacity， and obvious gold selection effect, and the equipment can work in different construction and operation areas, it can be moved with a trailer hitch ,and the operation cost is low.
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Working Principle
1. Raw material feeding> The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
It has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Double screen
The drum part is made of round steel and manganese wire mesh. The outermost layer of the screen drum is manganese wire mesh, and the inner layer is round steel with a diameter of 20mm and an interval of 50mm. The design of the double-layer screen on the one hand protects the material from damage caused by impact on the screen, thus extending the service life of the screen, and on the other hand improves the screening efficiency.
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000

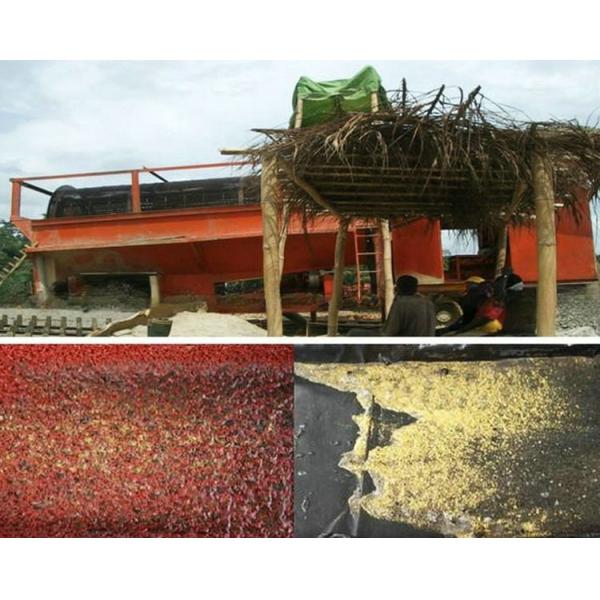

Case
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Packing & Delivery
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm

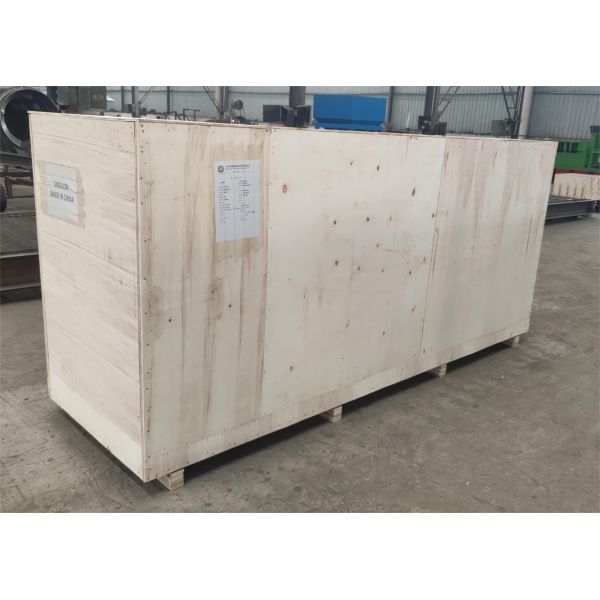

Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others .
Company Profile
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
Sand Gold Separator Mining Trommel Screen Machinery with Feeding Size Less Than 300mm
