3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3
Specifications
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location :
Canada, United Kingdom, Philippines, Russia, Kenya, South Africa, Nigeria, Australia
Condition :
New
Type :
Gravity Separator
Production Capacity :
98%
Place of Origin :
Henan, China
Brand Name :
Sinolion
Voltage :
380V/415V/440V( as client request)
Dimension(L*W*H) :
As per different model
Weight :
520 KG, 520kg
Warranty :
24 months excluding spare parts
Marketing Type :
New Product 2021
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, Gear, PLC
Key Selling Points :
mobile gold washing trommel
Product name :
Wide applied alluvial gold trommel screen for gold wash plant
Model :
Alluvial gold recovery gold trommel wash plant
Power :
3KW
Dimension :
depends on model
Application :
alluvial gold washing, diamond, rock, soil, river gold
Capacity :
5-10 tons per hour
Feeding size :
less than 300mm
Discharge size :
less than 6mm
Color :
yellow, white, red, blue, gray( or as client request)
Packaging Details :
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.
Port :
Qingdao,Shanghai,Tianjin,Guangzhou.Shenzhen
Supply Ability :
10 Acre/Acres per Month
Price :
$4,080.00/sets 1-1 sets
MOQ :
1 unit
Description

Mobile mini alluvial gold wash plant machine gold washing trommel screen

Product Description

The mobile mini alluvial gold wash plant machine is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.

3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3

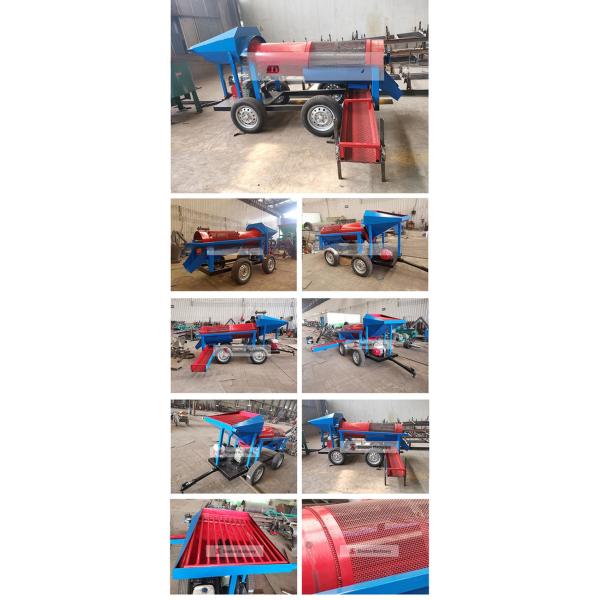

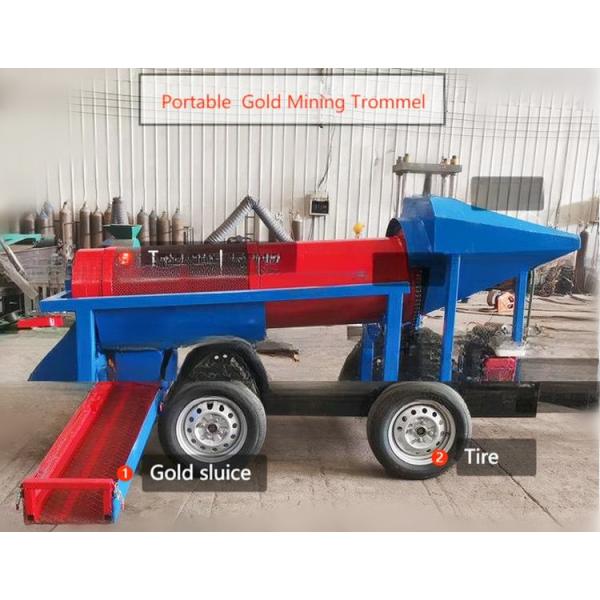

The mobile mini alluvial gold wash plant machine is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.

The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.

It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.

3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3

Characteristics:

1.Complete screen self cleaning function
2. The machine can effectively control the screening size function, can achieve high precision screening, to achieve the best screening effect.
3. The outlet of the machine can be adjusted arbitrarily. Sieve out of the material can be directly discharged, suitable for automated operations.
4. Simple structure, convenient installation, light weight; Reliable operation, long life; Low power consumption.
5. The screen mesh is not blocked, no flying powder, no leakage, fully sealed structure, environmental protection.
6. Fine powder, particle and liquid can pass through without blocking.
7. The cylinder is made of thick stainless steel, with long service life

Technical Parameters
SPECIFICATIONS OF PORTABLE MOBILE GOLD WASH TROMMEL
Model GMTS0519
Drum Diameter 500mm
Drum Length 1900 mm
Gearbox WPS-100-20
Towing Hook Include
Tires Size 165/70RB
Rubber Tires Quantity 4 pieces
Spray Pipe Diameter 42mm
Spray Pipe Material Galvanized seamless pipe
Capacity 5-10 tons/hour
HONDA Gasoline Engine Main Power:5.5HP
Start method: Manual pull
Gasoline load: 0.58L
Gold Chute 350*1500mm
Angle adjustable 2-8°
Grizzly Steel bard diameter 20mm
Bar spacing 50mm
Input hopper: 0.5m³

Product Details

3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 33KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3

Packaging & Shipping

3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3

Company Information

3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 33KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 33KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3

3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3

Customer

3KW Mobile Mini Alluvial Gold Wash Plant Machine Gold Washing Trommel Screen with 3

FAQ

Q1: How long is the delivery time
A: Normally within 7-10days

Q2: What is the driving force
A: Japan HTC Gasoline Engine

Q3: How long is the warranty period
A:One year

Q4: Do you have a certificate of origin, EU certification, etc.
A: yes, of course

Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
