Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location :
Canada, United Kingdom, United States, Germany
Condition :
New
Type :
Gravity Separator
Production Capacity :
5-10t/h
Place of Origin :
Henan, China
Brand Name :
ZHENGZHOU Sinolion
Voltage :
220V/380V/440V
Dimension(L*W*H) :
3.0m*0.8m*1.6m
Weight :
400 KG
Warranty :
1 Year
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Pump, Engine
Key Selling Points :
PORTABLE
Application :
Gold
Product name :
Gold Mining Machine
Keywords :
Alluvial Gold Mining Machine
After-sales Service Provided :
Service Machinery Overseas
Usage :
Mining Separatoion
Capacity :
5-10t/h
Material :
Steel
Advantage :
Professional
Color :
Based on customer's needs
Function :
Screening\separation\sorting\sieving
Price :
$4,080.00/sets
MOQ :
1 unit
Description
Product Description
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works

Gold mobile trommel screen 0519

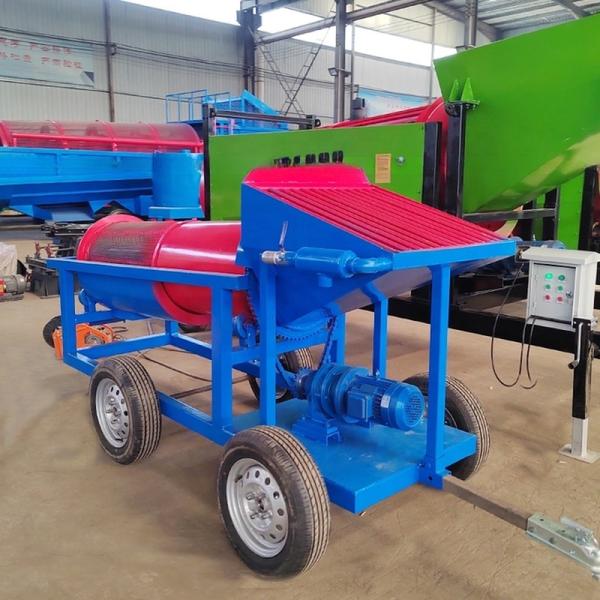

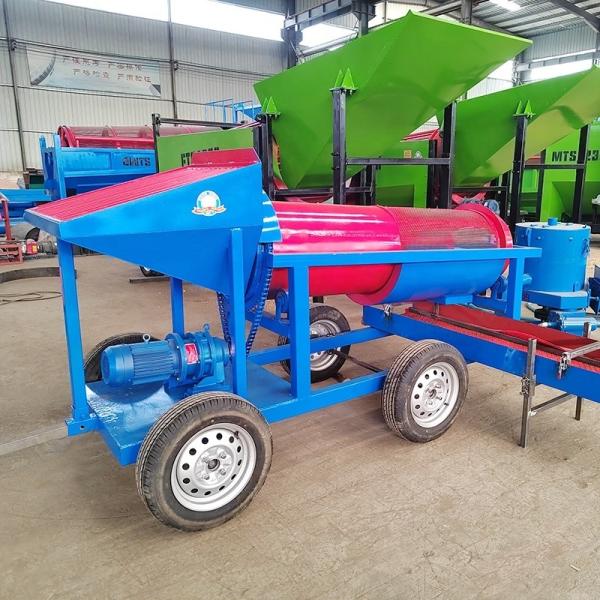

This small mobile gold trommel screen is designed with a single-layer manganese wire screen, so the weight of the entire cylinder is relatively light, which has the advantages of reducing the weight of the entire equipment and energy consumption. In addition, this equipment is also equipped with a gold sluice, which further improves the recovery rate of gold. The front of the equipment is also equipped with traction for easy movement.And its power source can be electric motor, diesel engine or gasoline engine, which can be equipped according to the needs of customers.
Working Principle
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
The motor reducer is connected through a coupling, and the roller is driven to rotate through a chain. When the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, and the qualified material is discharged through the discharge port at the bottom of the rear end of the drum device. Drum, unqualified materials are discharged from the discharge port at the end of the drum. freed.
Product Details

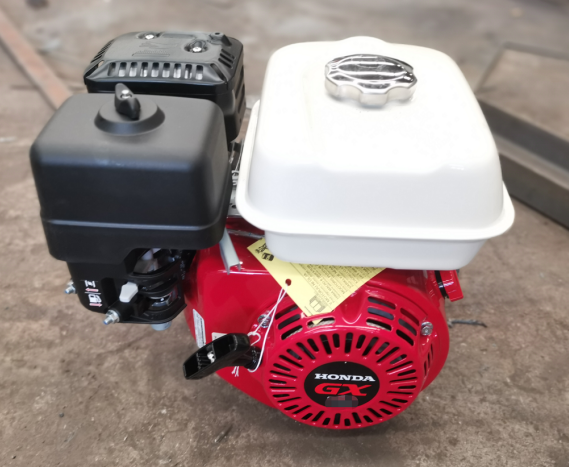

Gasoline engine

Diesel engine
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Hopper size is 800*790mm Grille Material: Steel
Round steel diameter：20 mm
Round bar spacing：50 mm
Hopper volume：0.5 m³
The screen is woven with manganese wire. There is a tin-plated seamless nozzle with a diameter of 42mm inside the drum, which is convenient for washing materials

Gold sluice: 1*6m
Artificial gold washing grass:1*15m
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Specification
Model
Trommel diameter
（mm）
Trommel length
（mm）
Capacity
(t/h)
Dimensions
(L*W*H)
GMTS0519
500
1910
5-10
3*0.8*1.6
Packing & Delivery

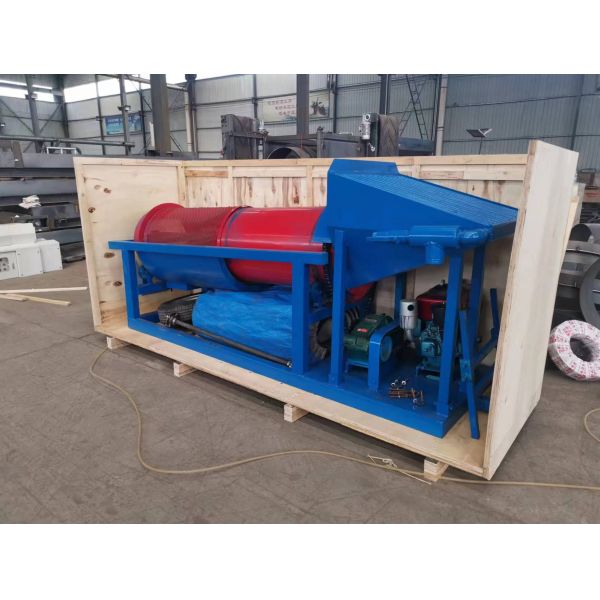

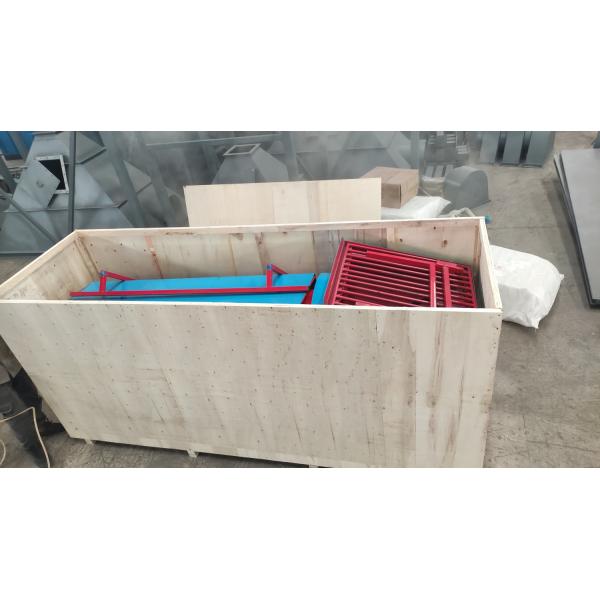

Moisture-proof wooden box packaging
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Company Profile
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
Certifications
Small Scale Model Portable Gold Washing Trommel Screen for 5-10t/h Construction Works
