Specifications
Applicable Industries :
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Showroom Location :
United States, Brazil, Mexico, South Africa, None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2023
Warranty of core components :
1 Year
Core Components :
Engine, Motor, Pump
Condition :
New
Type :
Circular
Application :
Ore
Place of Origin :
Henan, China
Brand Name :
sinolion
Voltage :
380v/415v/440v
Dimension(L*W*H) :
depends on models
Weight :
660 KG
Warranty :
1 Year
Product name :
Small scale 5-10 tons alluvial gold washing plant
Keyword :
alluvial gold washing plant
Screen material :
steel bar, steel plate punch hole, steel wire woven, stainless steel
Dimension :
According to capacity
Installation :
supply manual to guide user
Capacity :
According to model
Feeding size :
less than 300mm
Discharge size :
as request
Color :
yellow, white, red, blue, gray( or as client request)
After-sales Service Provided :
Field installation, commissioning and training
Price :
$4,080.00/sets 1-1 sets
MOQ :
1 unit
Description

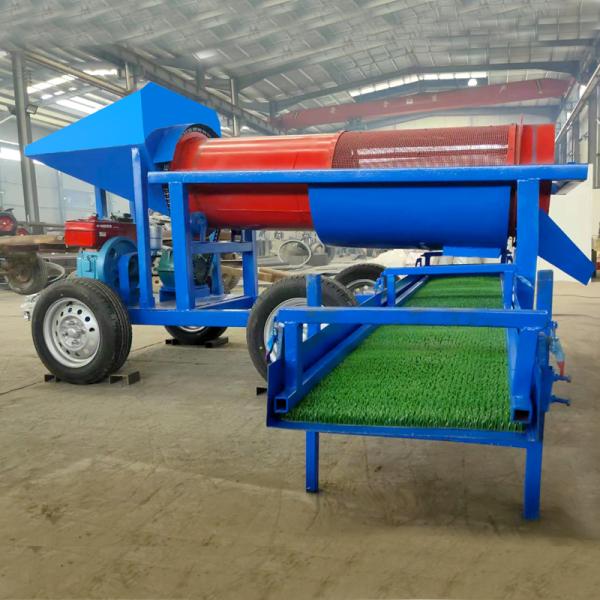

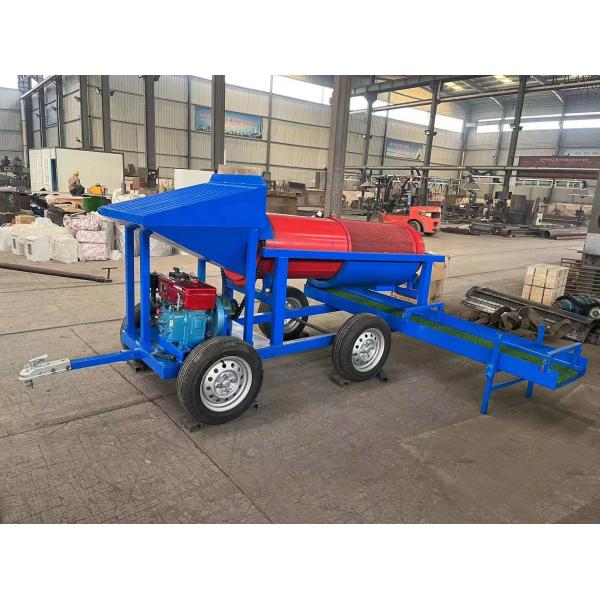

Small scale 5-10 tons alluvial gold washing plant mobile gold mining trommel screen with diesel engine

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

GMTS0519 is the best selling small gold panning mobile trommel screen in our factory. The package size is 1000*3000*1400mm, and the gross weight is 660kg. And our trommel screens all use Honda engines. It is very convenient for personal operation.

Now there have been Columbia graduates, customers from the United Kingdom, Canada, Australia, Ghana and other countries have purchased our mobile gold trommel screen for gold mining many times. We have our own factory and professional engineers, so we can provide you with greater advantages in terms of price, quality and technology

Gold refining equipment working principle:
1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.

2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.

3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel ScreenSmall Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

technical parameters

Model

Capacity

(t/h)

Power

(kw)

Diameter

(mm)

Length

(mm)

Discharge

(mm)

Input

(mm)

Dimension

(mm)

GMTS0519

5-10

1.5

500

1900

0-100

≤300

3000×800×1640

GMTS1020 10-30 4.0 1000 2000 0-100 ≤300 3390×1400×2140
GMTS1225 30-50 5.5 1200 2500 0-100 ≤300 4146×1600×2680
GMTS1548 80-150 11 1500 4800 0-100 ≤400 8460×2300×2500
GMTS1848 100-200 15 1800 4800 0-100 ≤400 8460×2300×2700

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

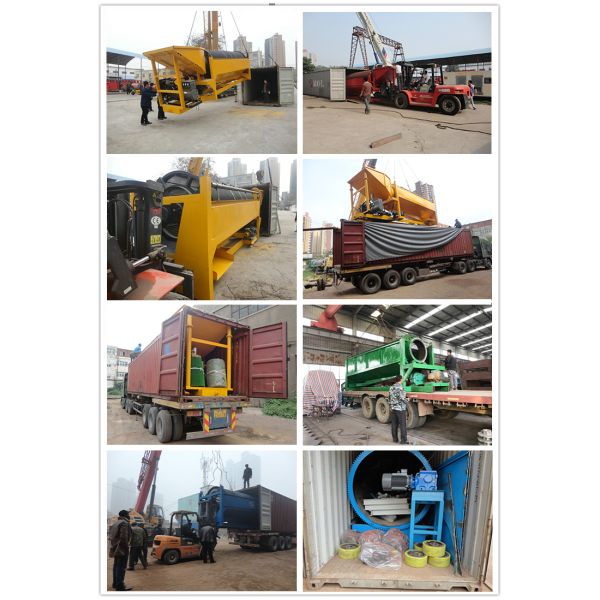

Packaging & Shipping

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

Case

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

Customer

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

Company Information

Zhengzhou Sinolion Machinery is a Chinese company with a department specialized in screening equipment;

Being consultant, designer and adviser of placer gold washing plant. Our company manufacture MTS Series mobile trommel screener, GMTS Series gold washing plant, MSW sorting plant and related equipment.

After 10 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion Machinery has been awarded as the pioneer in the field of screener manufacture in China.

SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, there are 80 employees in Sinolion, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of researchers specializing in electrical engineering, mechanical engineering, hydraulics, logistics and so on.

SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install production lines.

Like Sinolion, sincere, responsible, diligent and helpful, it brings together many ambitious talents who are good at different fields.

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen

Small Scale 5-10 Tons Alluvial Gold Washing Plant Mobile Gold Mining Trommel Screen
