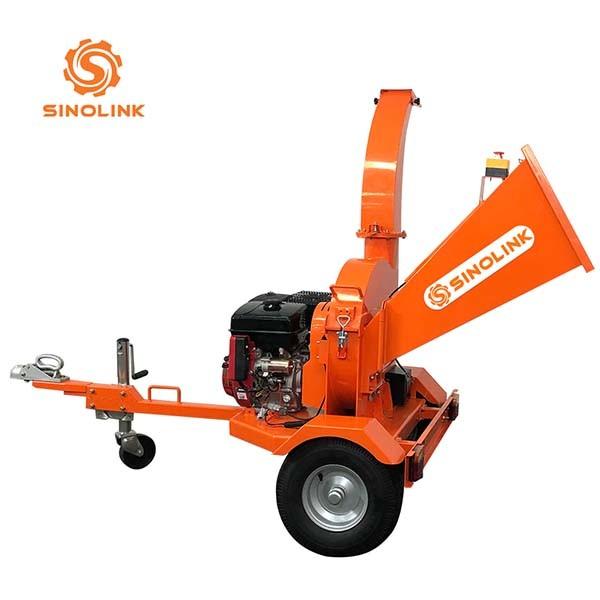

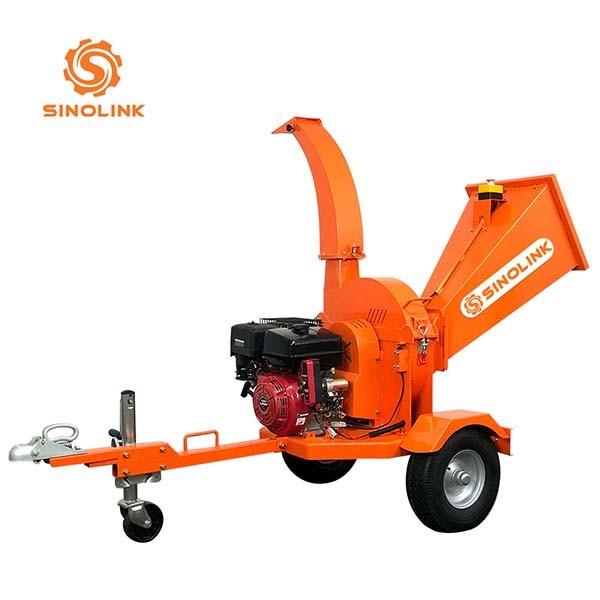

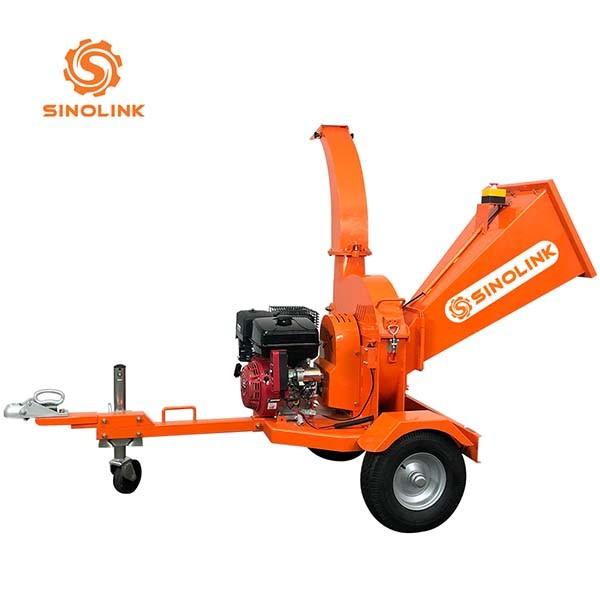

15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
Specifications
Brand Name :
SINOLINK
Model Number :
GS150
Certification :
CE
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD+850-950+set
Payment Terms :
T/T
Supply Ability :
300+set+per+month
Delivery Time :
30 days after payment
Packaging Details :
Plywood box 920X760X1100mm
Power :
15hp gasoline engine power
Blades :
2pcs fly blades and 1pcs fixed blade
Wheel :
5.7-8
Description

ATV Timber Shredder with B&S Electric start Gasoline Engine chipping machine cut branch

The GS150 high-speed disk chipper is self-contained on a fendered trailer system with DOT tires and rims

so you can move and transport it easily.

It includes an auto-adjusting feed chamber that can handle trees and branches up to 4.38 inches in diameter
while the chute is adjustable to pickup height and can be rotated to put the chips exactly where you need them
whether in the yard or in the back of your truck. No tools are necessary!
The cutting chamber also includes a quick latch for easy access to clean or remove debris.
A great machine for the money that can be easily transported to your job site!
Specifications
Model GS150
Start Method Electric or Recoil
Drive Type Belt Drive
Chipping Capacity (mm) 120
Feed Hopper Opening Size (mm) 500x460
Infeed Throat Opening Size (mm) 160x176
Disc Size (mm) (Diameter / Thickness) 550 x 20
Knives 2
Features ATV Towing Bar, 360° Rotating Chute
Handle Type N/A
Safety Features Stop Button
Engine Model Loncin 420FD or B&S XR2100
Engine Type 4 Stroke OHV Single Cylinder
Engine Size (cc) 420
Rated Power (hp) 15
Disc Speed (RPM) 2200
Fuel Petrol
Fuel Capacity (L) 6.5
Engine Oil SAE30
Engine Oil Capacity (ml) 1100
Gross Weight (kg) 270
Tyres 5.7-8
Off Road Tow Bar Yes
Fully Assembled Dimensions (H x W x L) (mm) 2550 x 1010 x 1810
Package Dimensions (H x W x L) (mm) 1250 x 770 x 1050
Fuel Type / Power Source Petrol
Product Type Wood Chipper
Warranty (years) 1
Commercial Warranty (years) 1
In The Box Petrol Wood Chipper, Tool Set, Manual

15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
There is an Emergency stop Bar at the feeder hopper.

When it is depressed it cuts off the engine.
As the engine reduces speed the clutch will release and the Disc will begin to slow down.
Easy access inside the disc cover to the disc and blades via a quick release latch.

The disc cover has a micro switch to stop the engine being started with the cover open.
The exit shoot, can swivel 360°, throwing the chip into a nearby trailer or pile.

15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder

LONCIN 420cc 27Nm
Easy Pull Start

Double Belt with Clutch (no load during starting)
Capacity 4” 100mm - cutting point is 160Wx 200H (mm)
360° Rotating Discharge Chute
Double Blades (reversible)
Anvil: Adjustable
Large feed shoot, with gravity self feed.
LED tail light and NZ & pin plug
Tyres: E-Mark 5.7-8 Road Tyre
Folding height adjustable jockey wheel
Coupling 1 7/8”
15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder
Extremely strong and robust. Main housing is made of 5mm steel plate, and the base of 4mm plate. 10mm bearing boss plate.
Weight: 260kgs

15hp Electric Start Wood Chipper Shredder Machine ATV Industrial Timber Shredder

1.Large warehouse layout provides improved performance
2.Large drum also provides torque increases
3.Equipped a towbar with 50mm standard trailer coupling
4.Safety switches on feeder and outchute hatches that can be opened
5.The machine requires assembly when open the wooden box package
