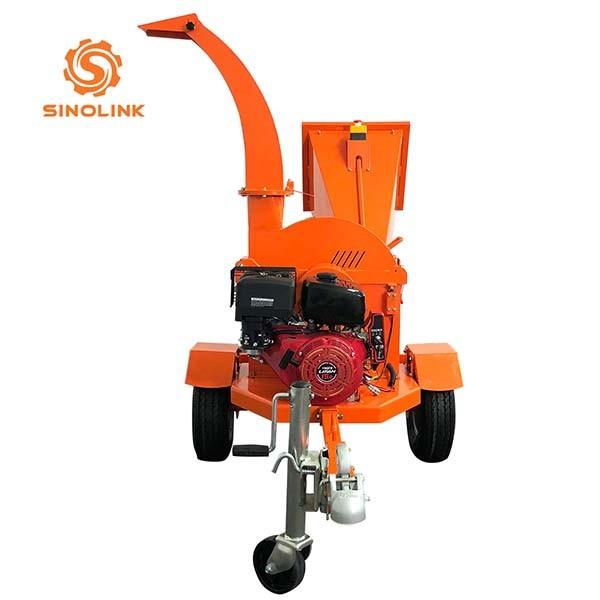

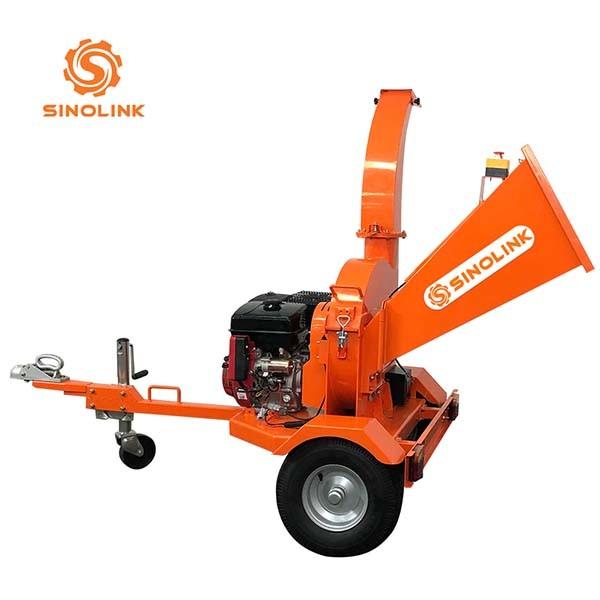

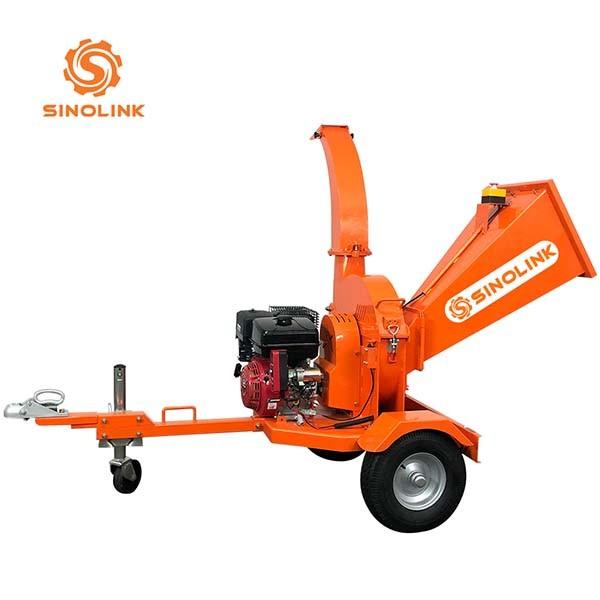

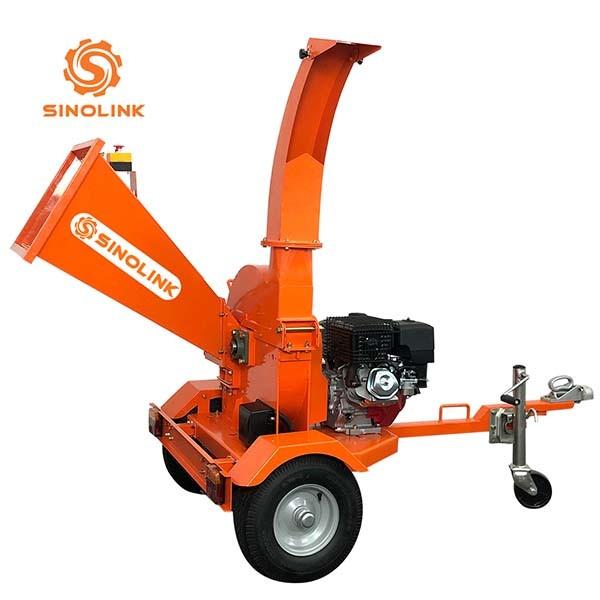

ATV firewood processor 13.5HP 14HP 15HP Petrol engine electric start chipper machine cut 120mm diameter wood

The GS150 is well balanced and easy to move around.
Easy starting, the clutch engages the disc when the engine is up to speed,

so no load during start up.

ATV Petrol Wood Chipper has been designed with safety in mind and is fitted with an emergency break system.
Modern design, large wheels and well balanced construction allows the chipper to be manoeuvred easily.
This wood chipper uses a disc, this enables the chipper to be more effective when in operation.

It also includes a tow hitch and safety stand jack.

There is an Emergency stop Bar at the feeder hopper.

When it is depressed it cuts off the engine.
As the engine reduces speed the clutch will release and the Disc will begin to slow down.
Easy access inside the disc cover to the disc and blades via a quick release latch.

The disc cover has a micro switch to stop the engine being started with the cover open.
The exit shoot, can swivel 360°, throwing the chip into a nearby trailer or pile.

LONCIN 420cc 27Nm
Easy Pull Start
Double Belt with Clutch (no load during starting)
Capacity 4” 100mm - cutting point is 160Wx 200H (mm)
360° Rotating Discharge Chute
Double Blades (reversible)
Anvil: Adjustable
Large feed shoot, with gravity self feed.
LED tail light and NZ & pin plug
Tyres: E-Mark 5.7-8 Road Tyre
Folding height adjustable jockey wheel
Coupling 1 7/8”

Extremely strong and robust. Main housing is made of 5mm steel plate, and the base of 4mm plate.

10mm bearing boss plate.
Weight: 260kgs

1.Large warehouse layout provides improved performance
2.Large drum also provides torque increases
3.Equipped a towbar with 50mm standard trailer coupling
4.Safety switches on feeder and outchute hatches that can be opened
5.The machine requires assembly when open the wooden box package
