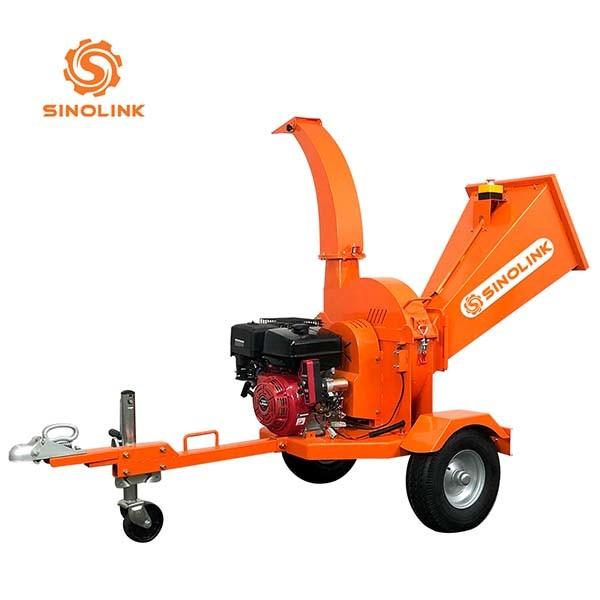

420cc Wood Branch Chipper Shredder Mulcher Machine Disc ATV Towable Tow Behind 15hp
420cc Wood Branch Chipper Shredder Mulcher Machine Disc ATV Towable Tow Behind 15hp
Specifications
Brand Name :
SINOLINK
Model Number :
GS150
Certification :
CE
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD+850-950+set
Payment Terms :
T/T
Supply Ability :
300+set+per+month
Delivery Time :
30 days after payment
Packaging Details :
Plywood box 920X760X1100mm
Power :
15hp gasoline engine power
Blades :
2pcs fly blades and 1pcs fixed blade
Wheel :
5.7-8
Description
ATV towable tow behind 15hp gasoline petrol disc wood branch chipper shredder leaf mulcher
Heavy-Duty Electric-Start Wood Chipper
The GS150 is an extremely powerful wood chipper from Hyundai, able to handle even the most established of
tree branches with diameters up to a massive 12cm.
Powerful Loncin Engine
Powered by a heavy-duty 420cc / 15hp 4-stroke OHV electric-start Loncin engine, it will provide you with a powerful
performance each and every time. Featuring an electric-start function, this ensures that you can get chipping at the
push of a button with no effort required, unlike previous recoil pull-start chipper models.
Heavy-Duty Electric-Start Wood Chipper
The GS150 is an extremely powerful wood chipper from Hyundai, able to handle even the most established of tree
branches with diameters up to a massive 12cm.

Specifications
Model GS150
Start Method Electric or Recoil
Drive Type Belt Drive
Chipping Capacity (mm) 120
Feed Hopper Opening Size (mm) 500x460
Infeed Throat Opening Size (mm) 160x176
Disc Size (mm) (Diameter / Thickness) 550 x 20
Knives 2
Features ATV Towing Bar, 360° Rotating Chute
Handle Type N/A
Safety Features Stop Button
Engine Model Loncin 420FD or B&S XR2100
Engine Type 4 Stroke OHV Single Cylinder
Engine Size (cc) 420
Rated Power (hp) 15
Disc Speed (RPM) 2200
Fuel Petrol
Fuel Capacity (L) 6.5
Engine Oil SAE30
Engine Oil Capacity (ml) 1100
Gross Weight (kg) 270
Tyres 5.7-8
Off Road Tow Bar Yes
Fully Assembled Dimensions (H x W x L) (mm) 2550 x 1010 x 1810
Package Dimensions (H x W x L) (mm) 1250 x 770 x 1050
Fuel Type / Power Source Petrol
Product Type Wood Chipper
Warranty (years) 1
Commercial Warranty (years) 1
In The Box Petrol Wood Chipper, Tool Set, Manual

420cc Wood Branch Chipper Shredder Mulcher Machine Disc ATV Towable Tow Behind 15hp
There is an Emergency stop Bar at the feeder hopper.

When it is depressed it cuts off the engine.
As the engine reduces speed the clutch will release and the Disc will begin to slow down.
Easy access inside the disc cover to the disc and blades via a quick release latch.

The disc cover has a micro switch to stop the engine being started with the cover open.
The exit shoot, can swivel 360°, throwing the chip into a nearby trailer or pile.

420cc Wood Branch Chipper Shredder Mulcher Machine Disc ATV Towable Tow Behind 15hp

LONCIN 420cc 27Nm
Easy Pull Start

Double Belt with Clutch (no load during starting)
Capacity 4” 100mm - cutting point is 160Wx 200H (mm)
360° Rotating Discharge Chute
Double Blades (reversible)
Anvil: Adjustable
Large feed shoot, with gravity self feed.
LED tail light and NZ & pin plug
Tyres: E-Mark 5.7-8 Road Tyre
Folding height adjustable jockey wheel
Coupling 1 7/8”
420cc Wood Branch Chipper Shredder Mulcher Machine Disc ATV Towable Tow Behind 15hp
Extremely strong and robust. Main housing is made of 5mm steel plate, and the base of 4mm plate.

10mm bearing boss plate.
Weight: 260kgs

420cc Wood Branch Chipper Shredder Mulcher Machine Disc ATV Towable Tow Behind 15hp
