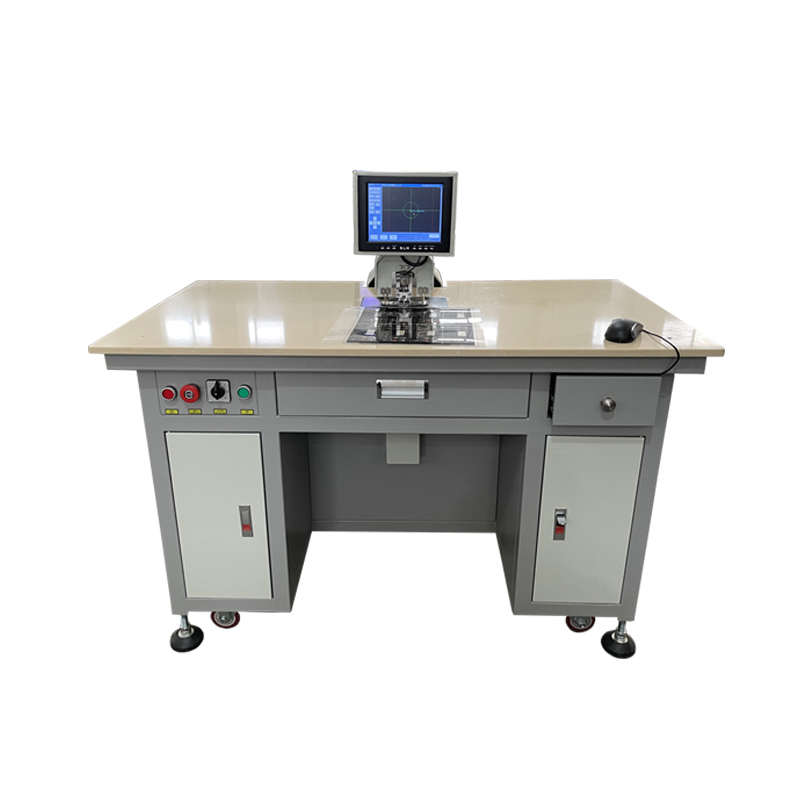

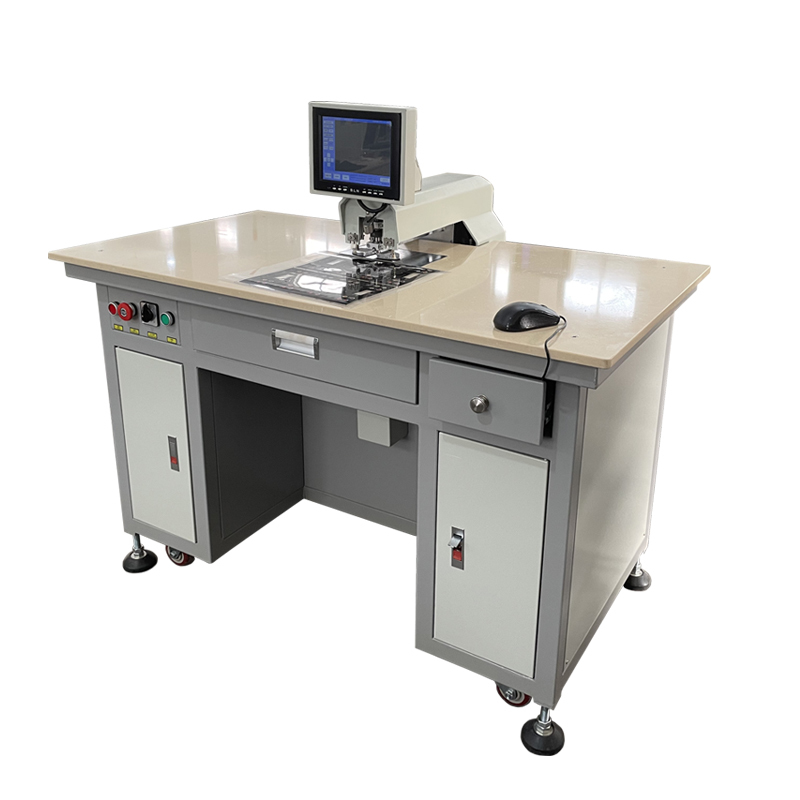

Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Specifications
Brand Name :
SILITRON
Model Number :
SLT15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Packaging Details :
L1360 x W880 x H1350 mm
Precision :
±0.015mm
Speed :
0.35s/hole
Substrate thickness :
0.01-1mm(base on material)
Material of punch die :
SKD11/61 quenched
Description
Applicable Industries
It's widely used for PET, PC, PVC, IMI/IMD, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, front panel, flex printed circuits, medical labels, graphic overlays, self-adhesive label, membrane keyboard, and other thin materials.
Punching Samples

Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate

Machine Features

  • Large Marble Worktable – Stable surface allows all sheet types to be processed without vibration.

  • CCD Automatic Alignment – Accurately detects targets for precise punching every time.

  • High Accuracy – Overall error ≤ 0.02 mm for micron-level precision on all designs.

  • Rapid Punching – Completes each hole in just 0.35 seconds, 7–8 times faster than manual methods.

  • No Material Dragging – Icons and substrates stay perfectly in place during punching.

  • Flexible Material Handling – Works safely with aluminum, nameplates, and other sensitive materials.

  • Upgradeable Software – Keep your machine up-to-date with lifetime software upgrades.

  • User-Friendly Interface – Touchscreen control allows direct mode selection and real-time monitoring.

  • Specialized Light Recognition – Detects circular or patterned designs automatically for precise alignment.

  • Punching Assistance – Material flattened by the stamper during punching for enhanced accuracy.

  • Advanced Image Processing – Binary integrated processing for superior target recognition.

Technical Parameter
Model SLT15
Dimension L1250 x W780 x H1150mm
Weight 200KG
Table size L1250 x W770mm
Punching force 2500N

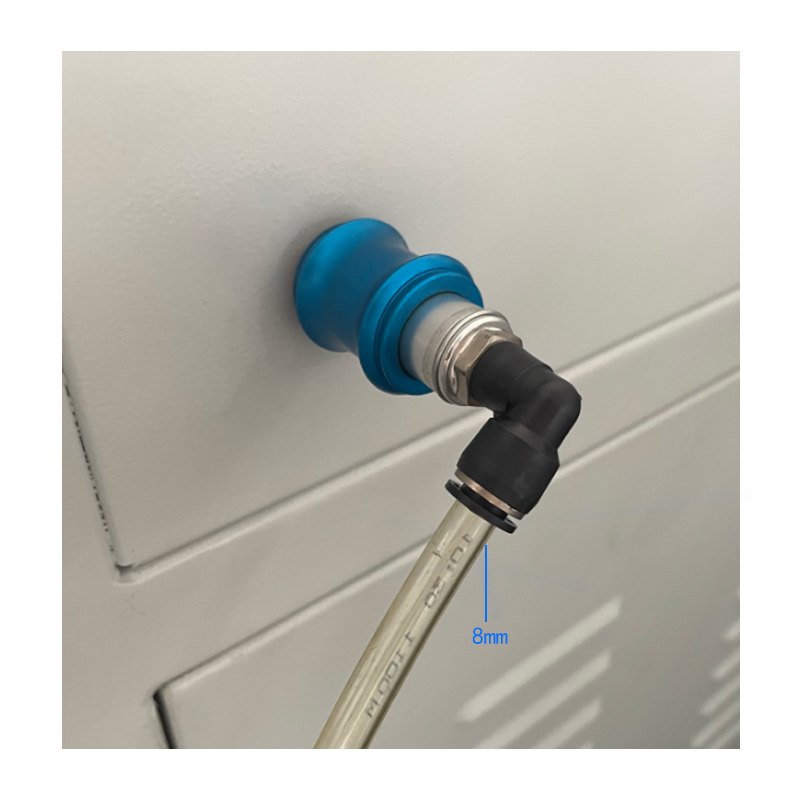

Air pressure 0.4~0.8Mpa
Voltage AC 220V-240V 50HZ
Power 0.4kW
Precision ±0.015mm
Hole diameter Φ1－Φ5mm(customizable)

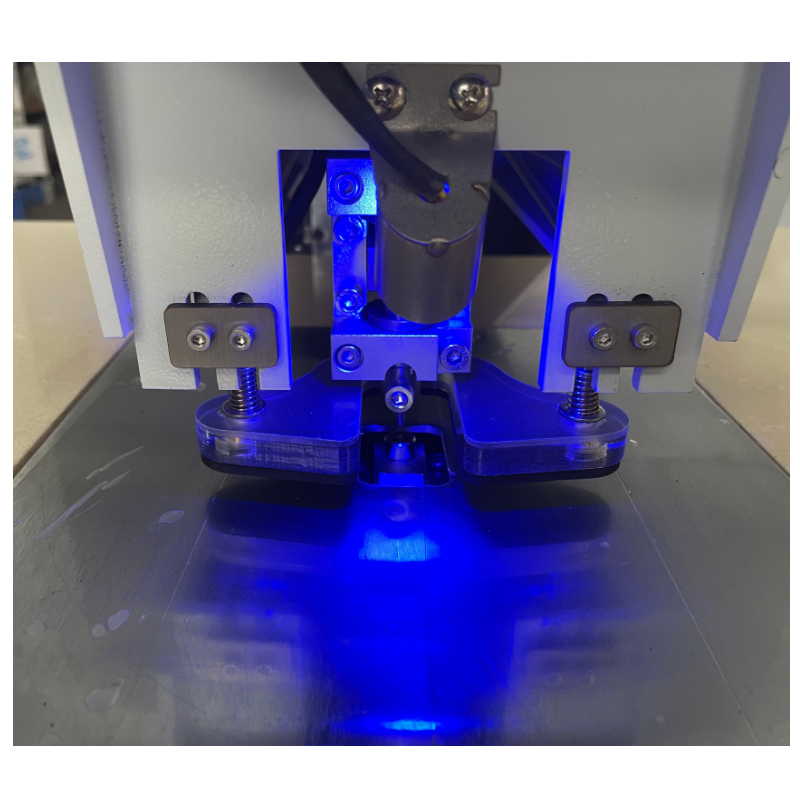

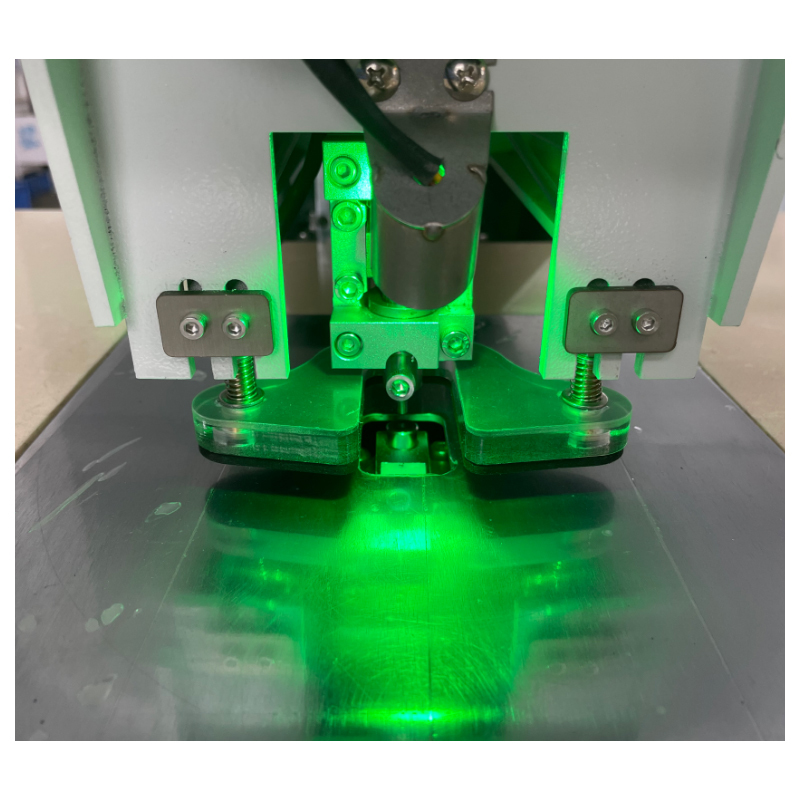

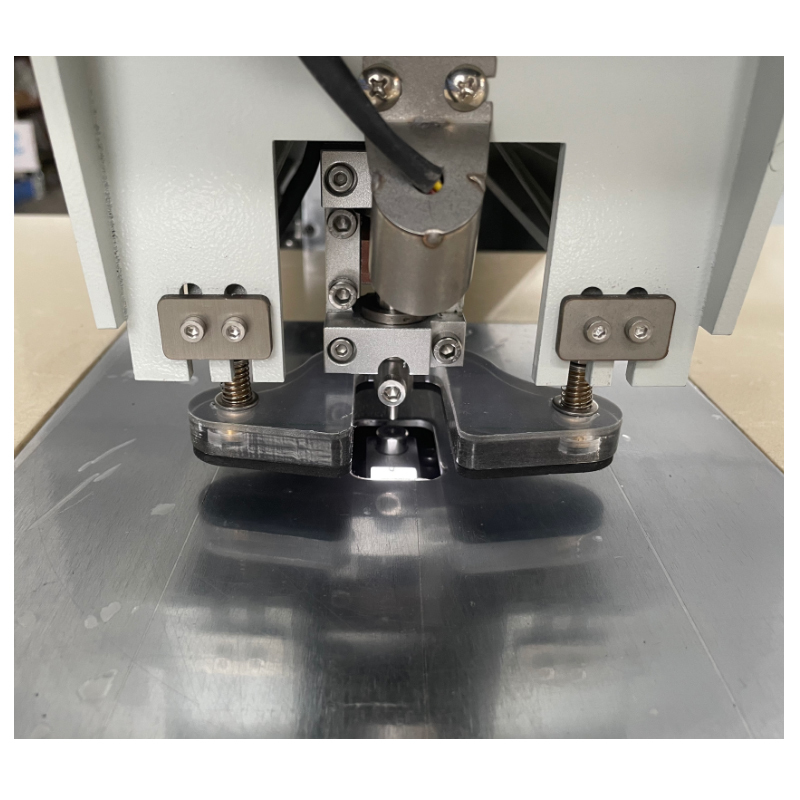

Light source white and colors

Workable Marks

Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate

Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
